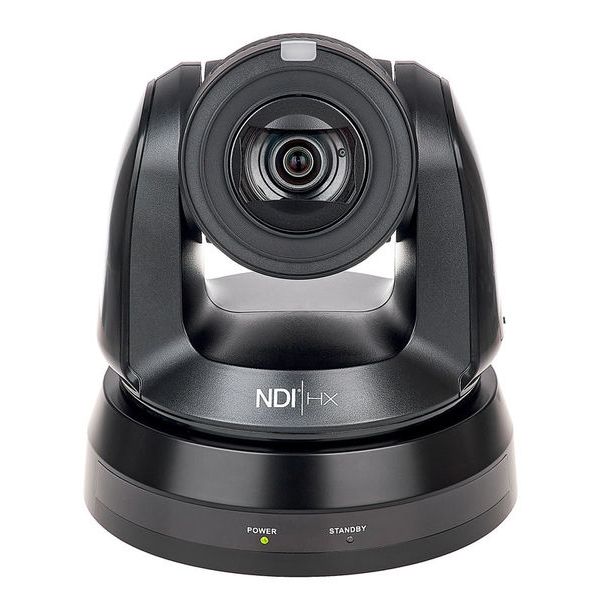

Marshall Electronics CV630-NDI
Start 360°
NDI-capable PTZ camera
- Has a UHD sensor and 30x zoom lens
- Triple-stream IP (H.265/H.264/MJPEG)
- Power over Ethernet (PoE)
- Front tally light
- Sensor: 8.5 megapixel (1/2.5") UHD
- Lens: 30x optical zoom (4.6~135mm) - 68° AOV
Resolution and frame rates:
- UHD 3840 x 2160p (25 / 29.97 fps)
- HD 1920 x 1080p (59.94 / 50 / 25 / 29.97 fps)
- 1280 x 720p (59.97 / 50 / 29.97 / 25 fps)
Connections:
- Ethernet (NDI, Visca over IP, Onvif, SRT compliant)
- 3G-SDI
- HDMI 1.4
- RS232
- 3.5 mm audio input with passthrough
Note: The cameras (CV730-NDI / CV630-NDI) are equipped with the NDI|HX version. This is a compressed version of NDI. Please note that SRT/RTSP/RTMP/MPEG-TS is not supported here.
Available since
February 2021
Item number
512161
Sales Unit
1 piece(s)
Design
PTZ Camera
Streaming resolution
4k
Stationary
Yes
Mobile
No
Pan–tilt–zoom
Yes
USB Webcam
No
SDI Out
Yes
HDMI Out
Yes
HD-Base T
No
Battery
Not possible
Microphone
No
Tally
Yes
Remote controllable
Yes
Audio In
Yes
Integrated Display
No
Integrated recording
No
Housing Colour
Black
Integrated light
No
Monitor bracket
No
Optical Zoom
Yes
Waterproof
No
Network capable
Yes
Talkback
No
Auto Focus
Yes
