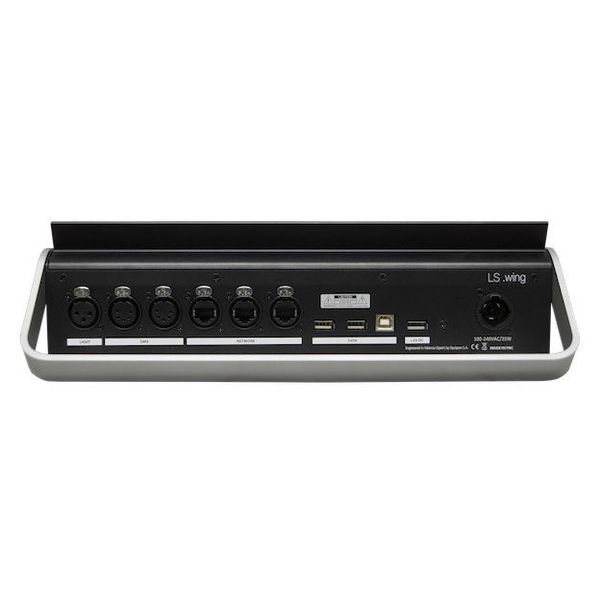

LightShark LS-Wing


Playback Wing

  • Extension for LS-1 and LS-Core
  • Slightly more compact than the LS-1 console, the LS-Wing still offers enough space to hold a 12.9" iPad Pro
  • Coupled with an LS-1, the LS-Wing adds ten additional playback faders and 20 executor buttons to the console
  • In addition to the two existing DMX outputs of the LS-1 and LS-Core, the LS-Wing provides two additional DMX outputs
  • The Wing is connected to the console via the integrated USB hub and at the same time provides two additional USB data ports
  • With the additional USB charging port, another tablet can be charged
  • With integrated Ethernet switch
  • Three EtherCon ports allow the direct connection of one or more LS-nodes as well as a 3D visualization
  • Memory: 1,200 cuelists, 1,200 cues
  • Submaster / Cue Stack Fader: 10 cue stacks / submaster and / or effect speed / size fader
  • Playback: 10 faders (+ Option, Go, Flash)
  • Virtual executor page via external tablet
  • Power connection: Power Twist TR1
  • Power supply: 90-250 V 50-60 Hz
  • Current consumption: 1.1 A at 230 V
  • DMX 512 connector: 2x XLR 5 pin female
  • USB connection: 1x USB-B 2.0, 3x USB-A 2.0 (2x Dataport & 1x charging socket for external tablet)
  • Lamp connection: 1x XLR 3 pin female
  • EtherNet connection: 3x RJ 45 etherCON (Gigabit)
  • Dimensions (L x W x H): 32.5 x 33 x 9.4 cm
  • Weight: 2.7 kg
available since July 2020
Item number 469768
sales unit 1 piece(s)
Preset Function Yes
External Storage Yes
DMX - Universes 2
max. Channels 1024
Ethernet Yes
