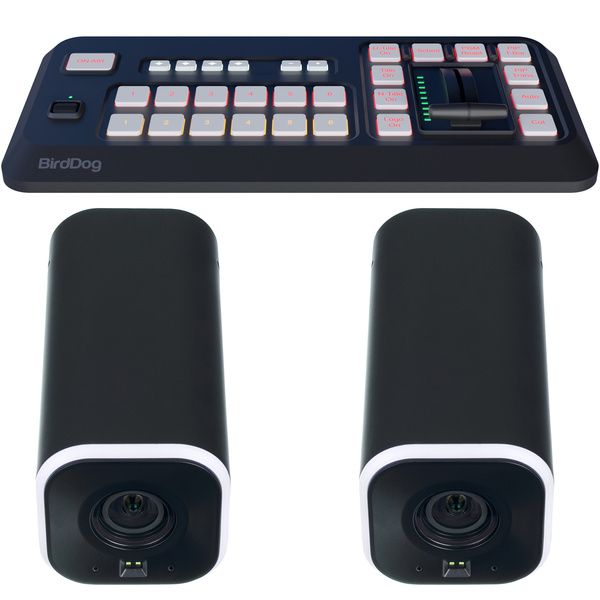

BirdDog Maki Live Bk Bundle

Bundle offer comprising

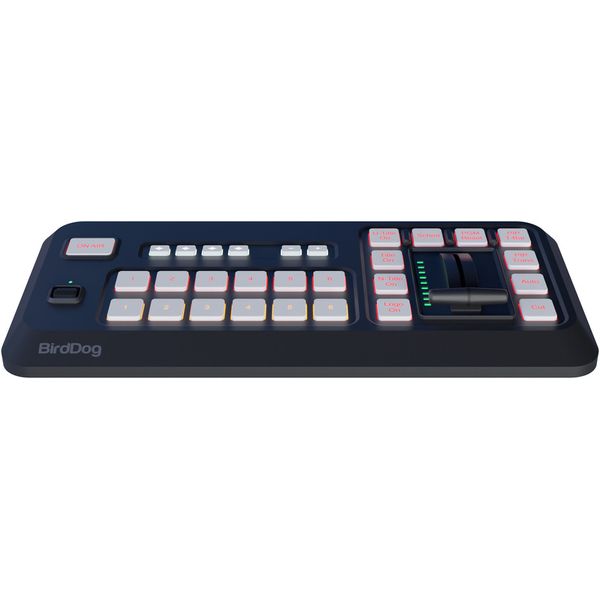

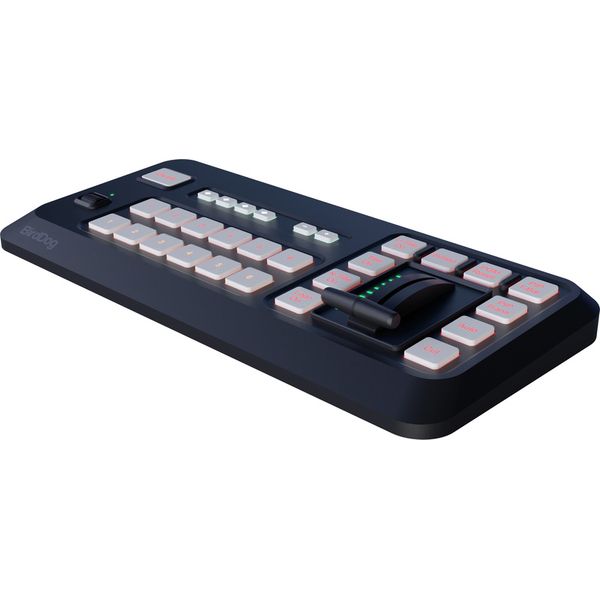

BirdDog Wingman Control Surface

Hardware Control Interface for Live Productions

A combination of a hardware control surface and an iPad app (operates only when both components are used together; the app cannot be used as a stand-alone application)
Real-time switching between multiple cameras
Support for multi-camera productions
Integration of NDI sources (High Bandwidth and NDI|HX)
Compatible with MAKI Live cameras and NDI-enabled devices
Streaming on platforms such as YouTube, Facebook or Vimeo
Local recording directly on the iPad
Incorporating graphics, videos and images
Create text, titles and lower thirds in real time
Transition effects such as stingers and fades
Support for wireless (Wi-Fi) and wired (Ethernet) connections
Operated via touchscreen (app) or hardware controller
Can be expanded with additional cameras
No external computer required
Dimensions: 33 x 18 x 6.5 cm
Weight: 0.753 kg

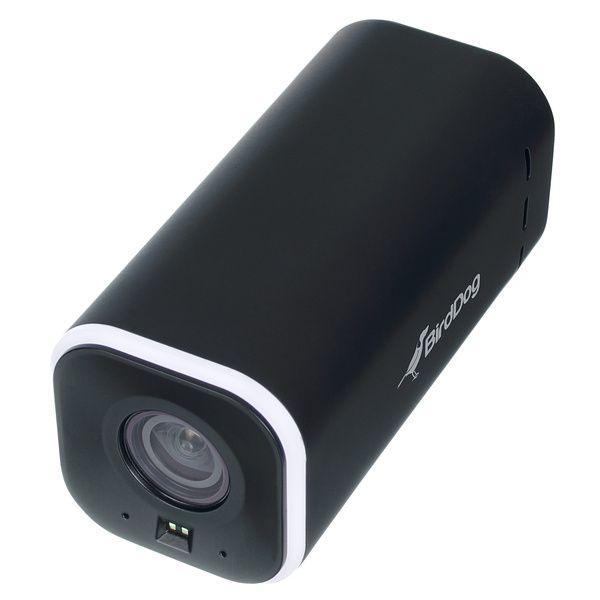

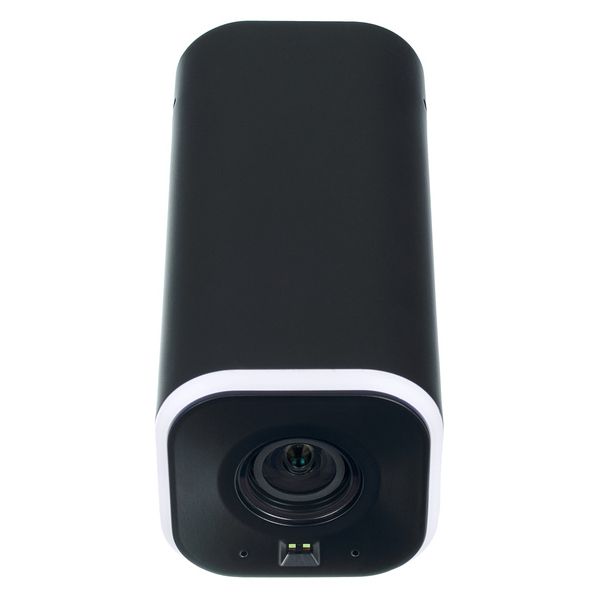

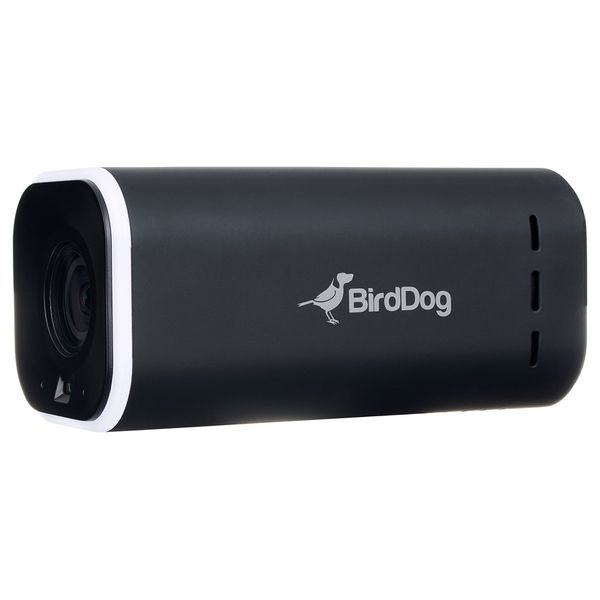

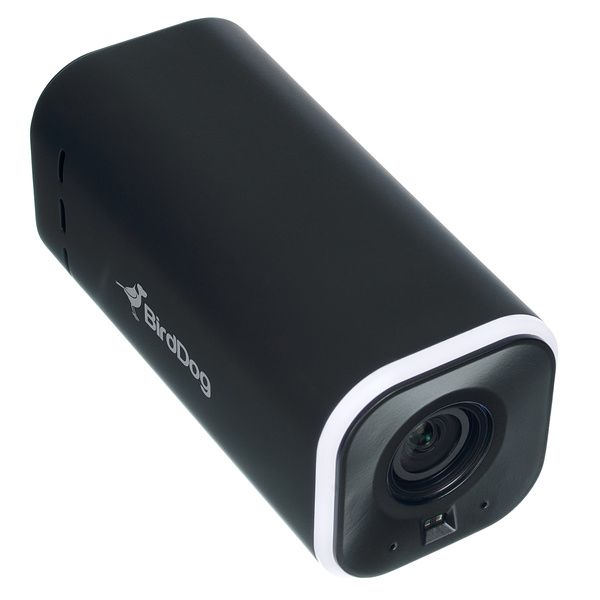

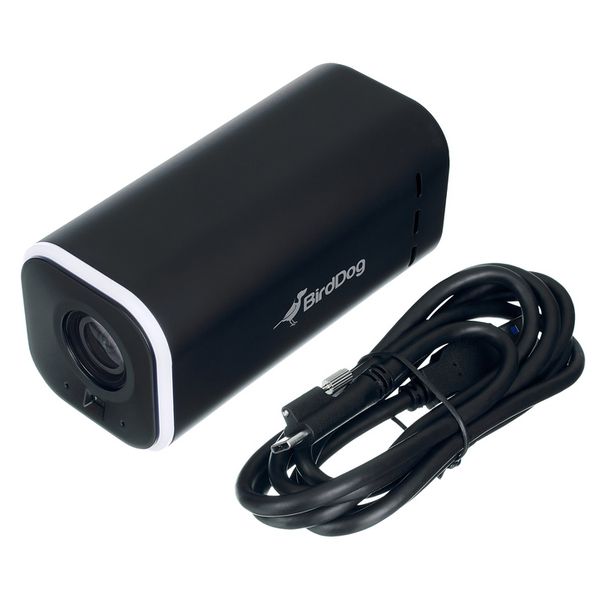

Compact 4K Streaming Camera

Ultra HD with 4K resolution, 2160p30
1/2.8” CMOS - UHD Sensor

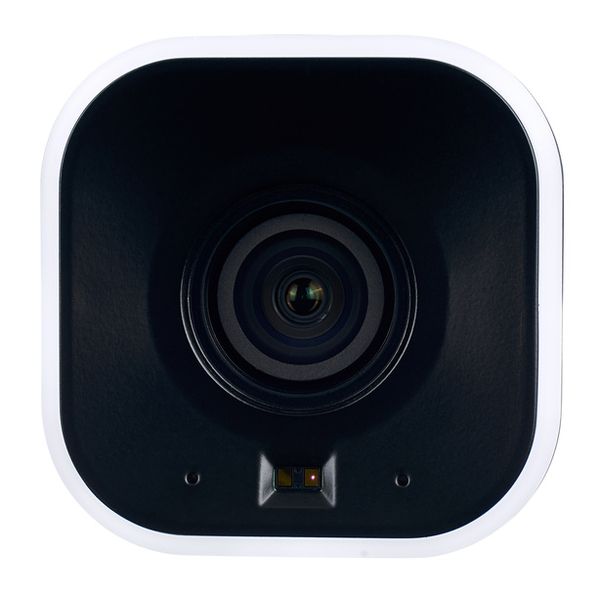

3x optical zoom with ultra-fast TOF autofocus
Integrated battery with 6 hours of runtime
WiFi and NDI|HX Support
Recording to microSD card
HALO tally system
MAKI Studio integration – combined with the optional MAKI Studio iPad app and user interface for easy switching, streaming and control of multiple cameras
Free MAKI Live Control app and BirdDog BirdUI for easy control of all functions
AI-supported gesture control
AI-assisted noise reduction with integrated microphones

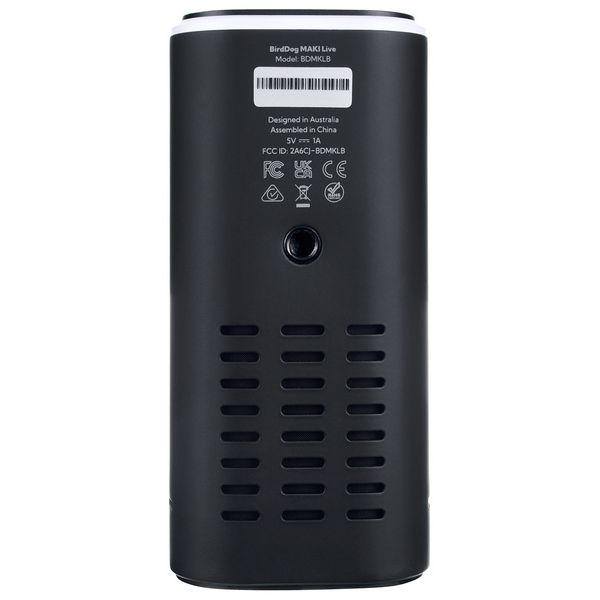

1/4''-20 thread

Technical specifications:

Image sensor: Sony 1/2.8" CMOS - ULTRA HD
Effective pixels: 8.29
MP lens: f=3.3–9.9 mm
Zoom: 3x optical, 3x digital
Video format: 2160p @ 30/29.97/25 fps, 1080p @ 30/29.97/25 fps, 720p @ 30 fps
Horizontal angle of view: 81.4° (W) – ~31.3° (T)
Vertical angle of view: 50.5° (W) – ~18.2° (T)
Diagonal angle of view: 92° (W) – ~35.8° (T)
Aperture: F2 (W)–~F3.7 (T)
Focus: TOF, auto, manual
Exposure: auto, aperture priority, manual, bright
Backlight compensation
Digital noise reduction: 2D and 3D noise reduction
Signal-to-noise ratio: 50 dB

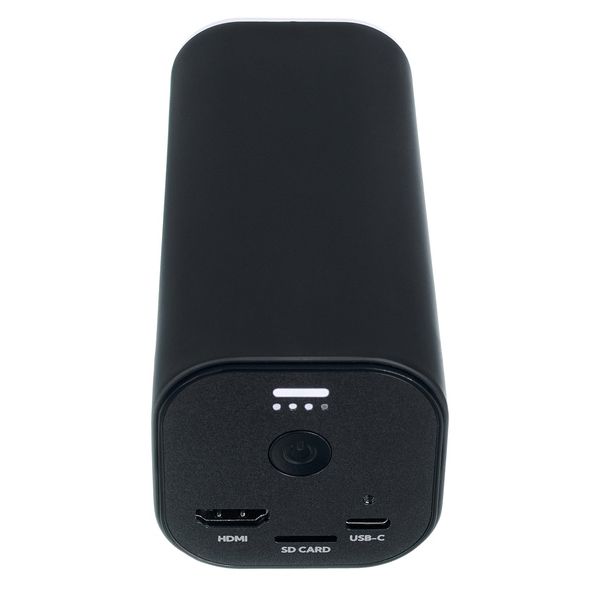

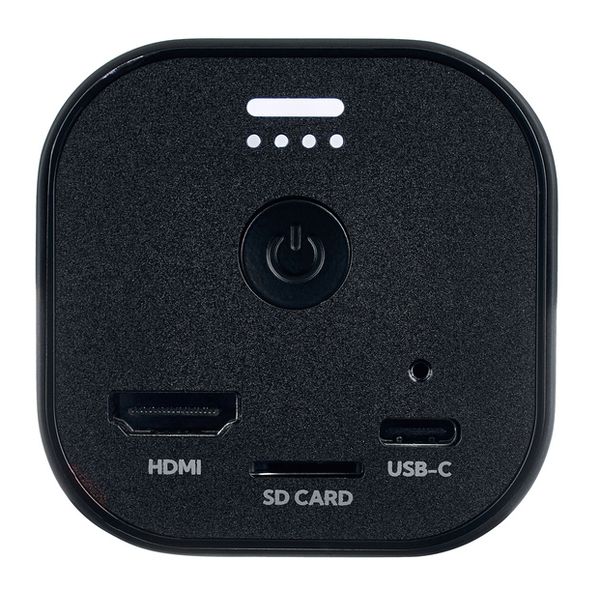

Video output: HDMI, USB-C UVC 1.0
Network (integrated WLAN 6, optional PoE 802.3af via dongle – sold separately)
Video compression formats: H.264/H.265 up to 62 Mbit/s, adjustable
Network interfaces: WLAN 6 IEEE 802.11ax
Encoder network protocols: NDI|HX2, NDI|HX3, RTSP, RTMP, SRT
Control interfaces: Network, USB Type-C (UVC 1.0)
Control protocols: VISCA IP, NDI, UVC
Memory card: TF card (microSD)
Input voltage: USB Type-C 5 V, POE IEEE 802.3af, optional via dongle (sold separately)
Input current: 2.4 A (min.), 5 V
Power consumption: 5 W (average power consumption)
Dimensions (W x H x D): 56 x 56 x 120 mm
Weight: 335 g
