BirdDog Max White Bundle

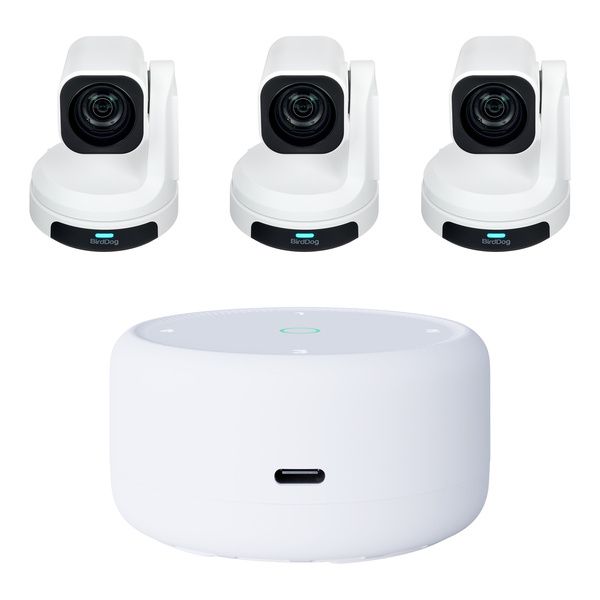

Bundle offer comprising

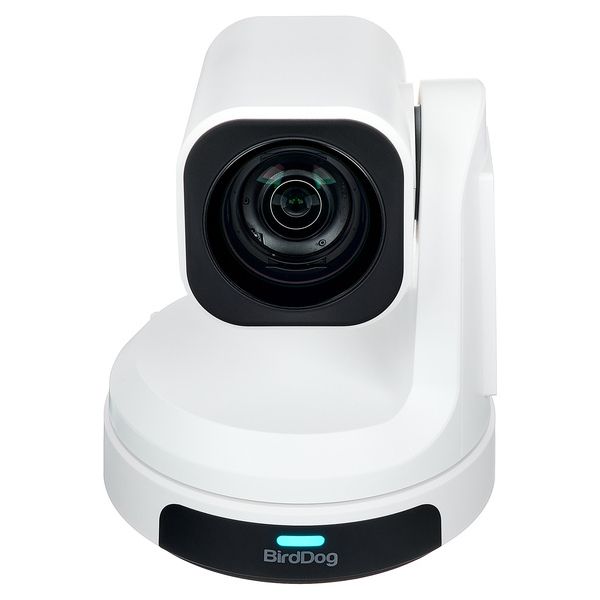

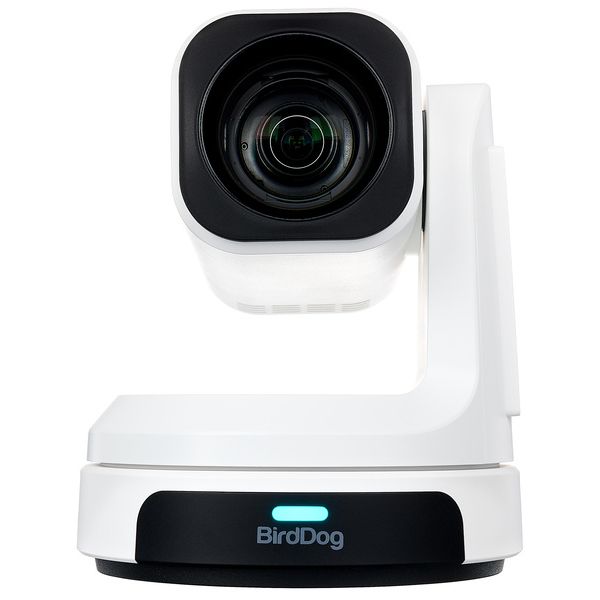

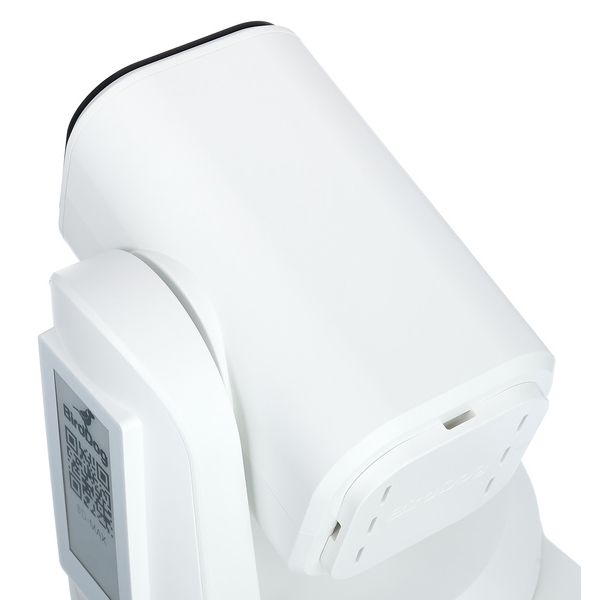

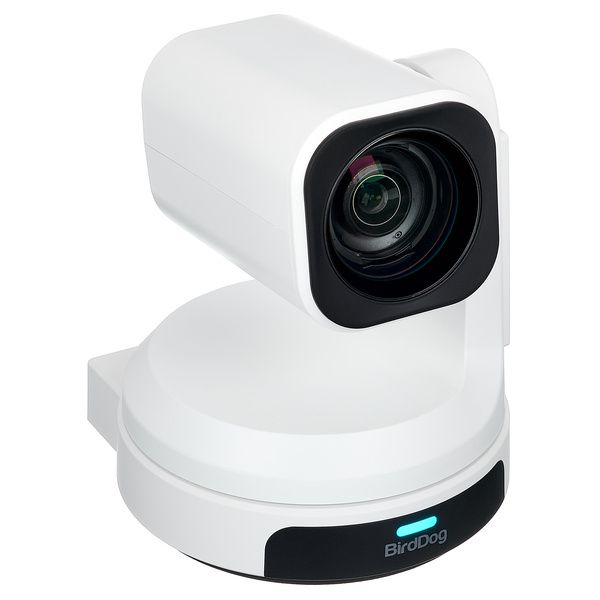

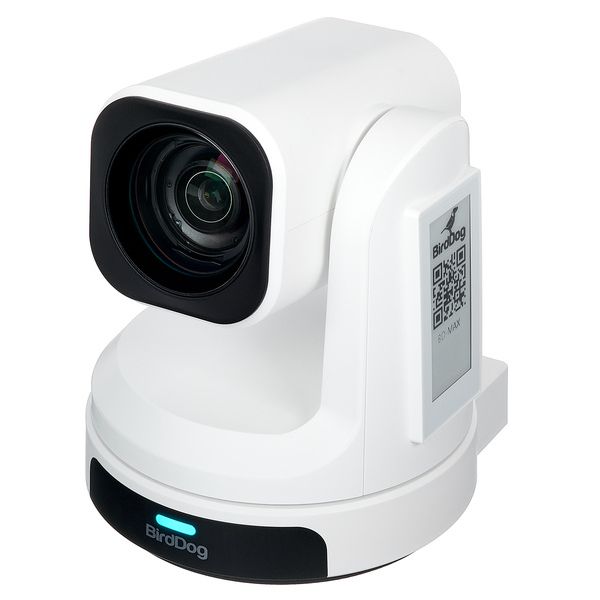

3x BirdDog Max White

4K UHD PTZ Camera with 12x Optical Zoom

• Wide-angle lens with 90º diagonal viewing angle
• Elegant design made of OBP plastic
• Complete workflow solutions without additional software
• Seamless switching between Teams, Zoom and other data sources

Technical data:

• Image sensor: Sony 1/2." CMOS - Ultra HD

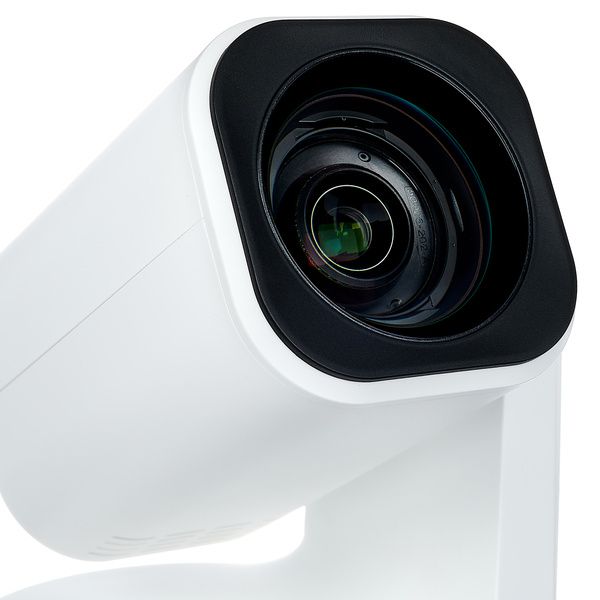

• Lens: f3.42mm – 40.02mm
• Aperture F1.88 – 3.77
• 12x optical zoom
• HDMI: 2160p30, 1080p60/59.94/50/30/29.97/25, 720p60/50/59.94/30
• NDI: 2160p30/29.97/25, 1080p30/29.97/25/23.98
• Horizontal viewing angle: 80.56° to 7.89°
• Vertical viewing angle: 49.61° to 4.46°
• Diagonal viewing angle: 89.51° to 9.04°
• Focus types: Automatic and manual
• Exposure: Auto, shutter priority, aperture priority, manual
• Backlight correction
• 2D and 3D noise reduction
• SNR: >50 dB
• Effective pixels: 8.29 MP
• 255 presets

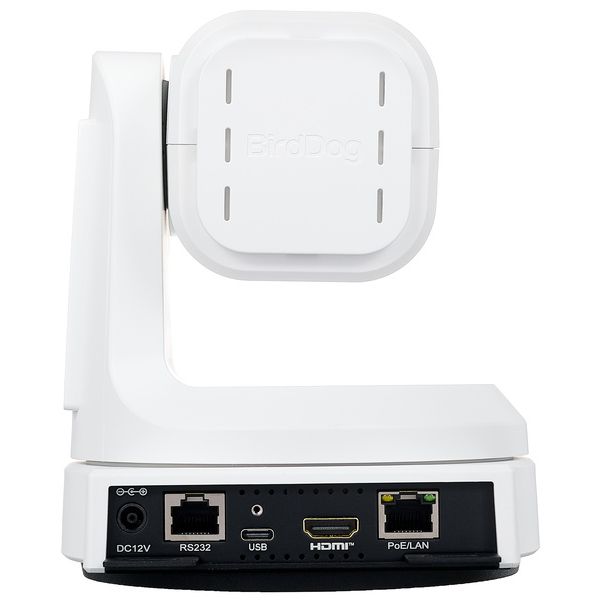

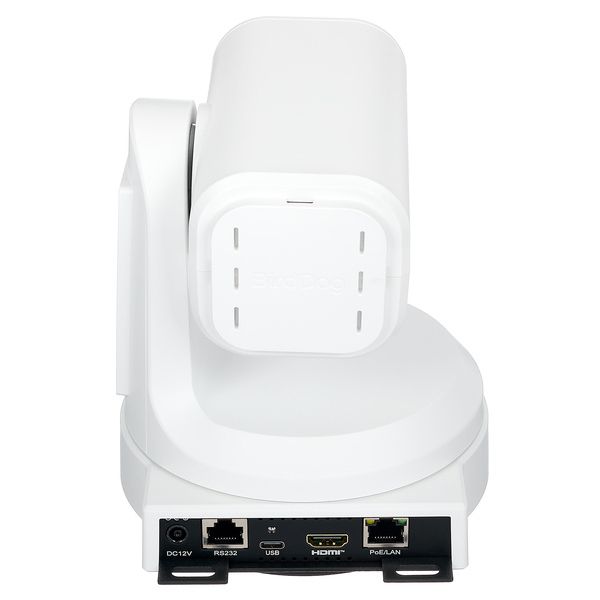

• Video output: HDMI, USB-C UVC 1.1, network
• Compression: H.264, H.265
• Network interfaces: 100M adaptive Ethernet connection
• POE IEEE802.3af
• Network protocols: NDI HX2, NDI HX3, RTSP, RTMP, SRT
• Control protocols: VISCA
• Baud rate: 38400/9600/4800/2400, VISCA-IP, NDI
• Input voltage: DC 12 V, POE IEEE802.3af
• Max. power consumption: 13 W
• Dimensions (L x H x D): Approx. 17.3 x 19.3 x 17.2 cm
• Weight: Approx. 1.43 kg

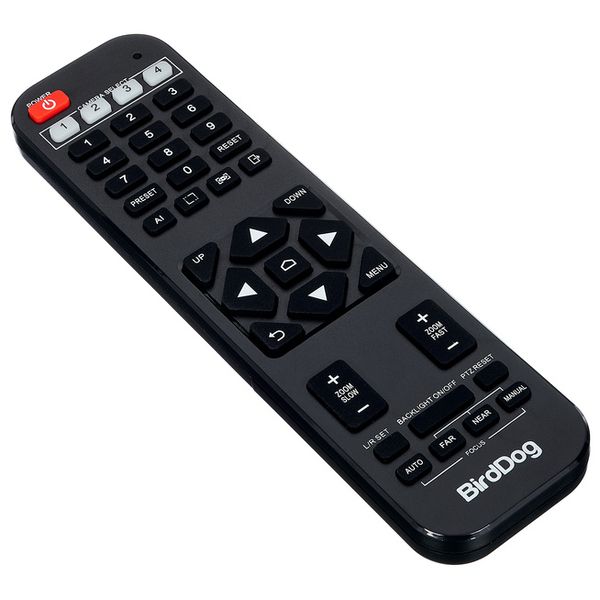

• Includes PTZ camera remote controller, 12 V DC power supply, silicone number for the rear of the camera, USB cable

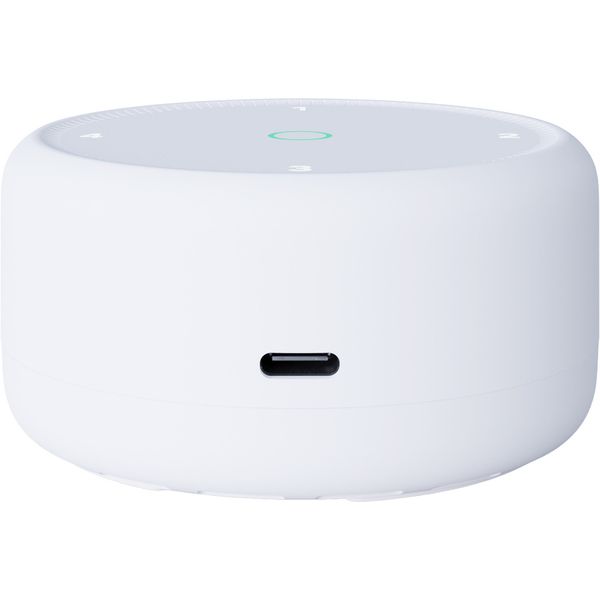

BirdDog Pod

Signal Converter for Converting NDI to a USB Webcam

• For converting NDI video signals to USB webcam
• For connecting to Zoom, Teams, Meet and any other conferencing or software application that supports a USB webcam input
• Automatically scans the network for NDI sources

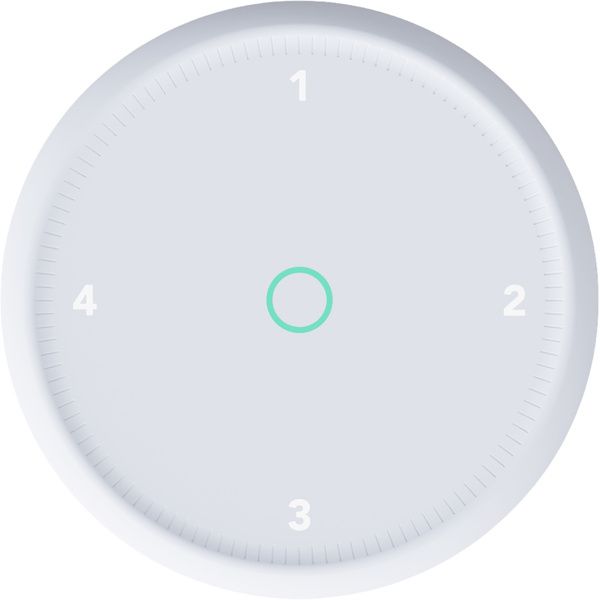

• Switch between four NDI sources at the touch of a button
• Power supply via PoE (power over ethernet)
• API control
• Automatic source scanning
• A rubberised grip ring prevents slipping

Technical data:

• Resolutions: HD 1080p – 25, 29.97, 30, 50, 59.94, 60 / HD 720p – 50, 59.94, 60
• Video formats: NDI – 1080p60 in i-frame
• Low latency / NDI HX2 – 1080p60 in H.264 / NDI HX2 – 1080p60 in HEVC / NDI HX3 – 1080p60 in H.264 / NDI HX3 – 1080p60 in HEVC

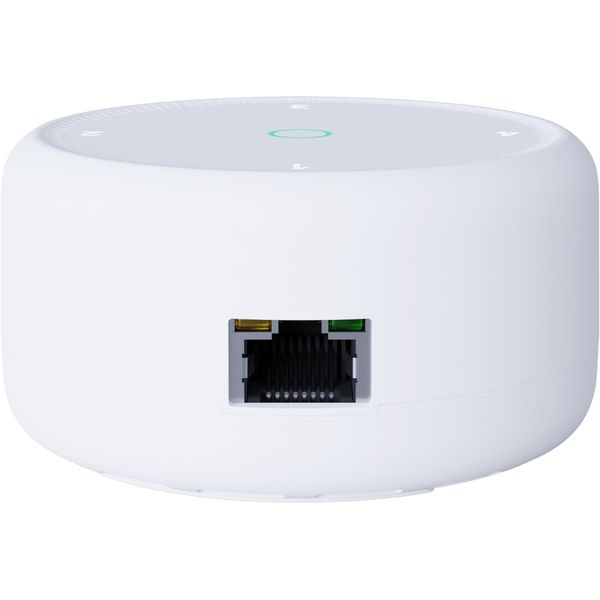

• Video input: 1x RJ45
• Video output: 1x USB-C, UVC, up to 1080p30
• Audio output: USB-C, UAC
• Embedded audio: LAN (RJ45) / USB
• IP video decoding: H.264
• NDI: 1920 x 1080
• PoE support: PoE 802.3af
• Network connection: Ethernet RJ45 1000baseT
• Dimensions: 8.3 x 7 cm
• Weight: 0.074 kg
