Laserworld PL-70
Professional High-Performance Full-Colour Laser System
- Light source: Diode laser (full-colour diode laser, RSL2 technology)
- Colour mixing: RGB (analogue modulation): Red power: 23,000 mW / 638 nm, Green power: 28,000 mW / 520 nm, Blue power: 28,000 mW / 450 nm
- Guaranteed power at aperture: 70,000 mW
- Laser class: 4
- Scan angle: max. 50°
- Optics: Beam diameter approx. 10 mm / 1.1 mrad
- Scan speed: Galvo scanner, 30 kpps @ 8°
- Display: integrated ShowNET motherboard (not a conventional display)
- Power consumption: 800 W
- Supply voltage: 85 – 250 V AC, 50 / 60 Hz
- Control: ILDA, DMX, Art-Net, LAN, ILDA streaming, built-in SD card, automatic mode
- Basic patterns: over 120 built-in patterns and effects (e.g. layers, tunnels, grids, waves, etc.)
- Protection rating: IP65
- Housing material: Metal

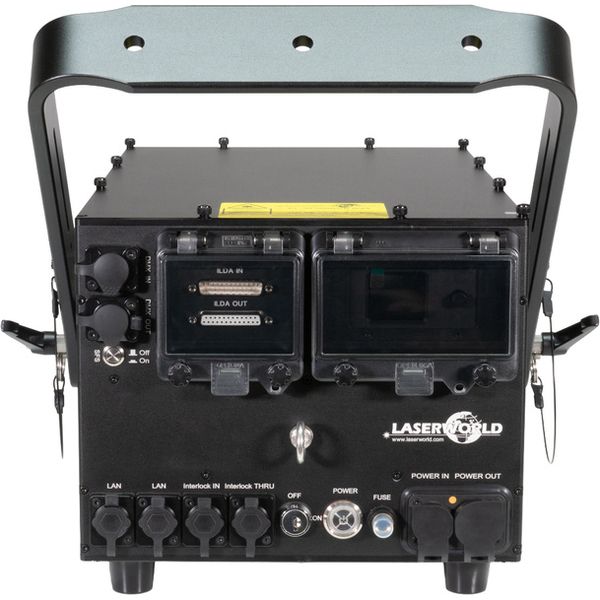

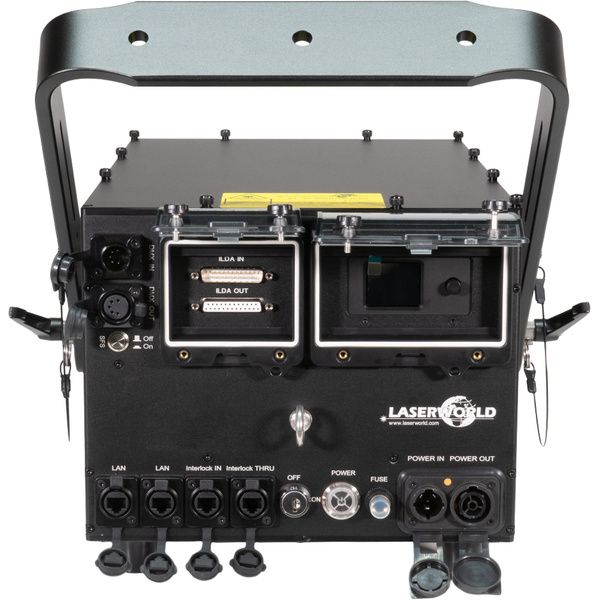

- Connection: ILDA In / Out, DMX In / Out, LAN In / Out, Interlock, Power Twist TR1 In / Out
- Housing colour: Black
- Dimensions (L x W x H): 480 x 360 x 290 mm
- Weight: 29 kg
- Includes a waterproof plastic case, key, Interlock dongle, mains cable and user manual
- Includes Showeditor software licence (full version)
Attention:This device incorporates a laser of Class 3R or higher (per the classification under DIN EN 60825-1:2015)
-
Item number 649872
-
Sales Unit 1 piece(s)
-
Colours RGB
-
Laser Classification 4
-
Animation Laser Yes
-
Grating-Laser No
-
ILDA Yes
-
DMX Yes
-
Power in mW more then 1000
-
Analogue Modulation Yes
