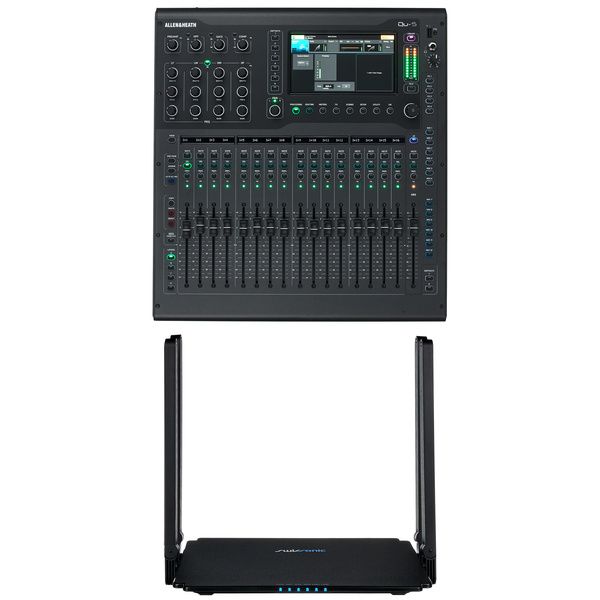

Allen & Heath QU-5 WiFi Bundle
Bundle offer comprising

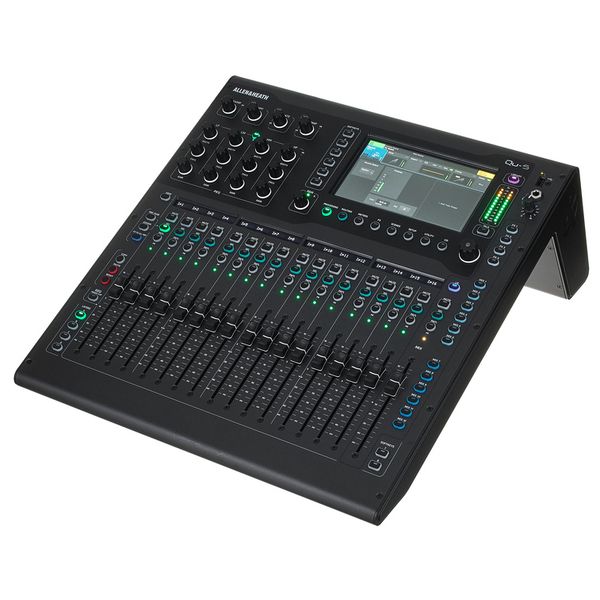

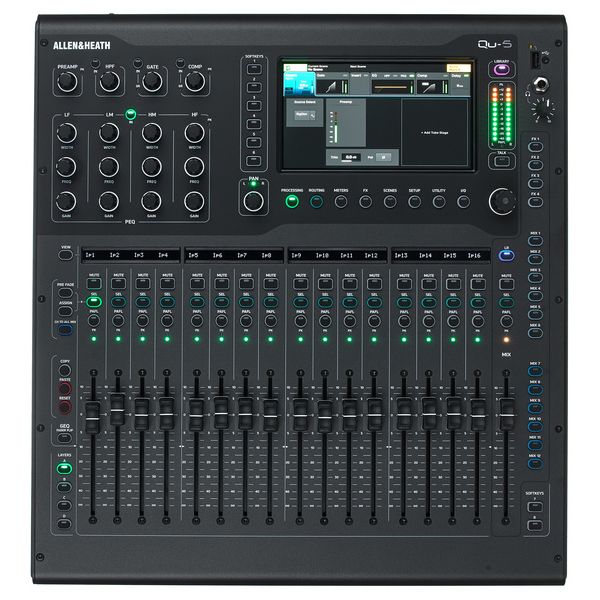

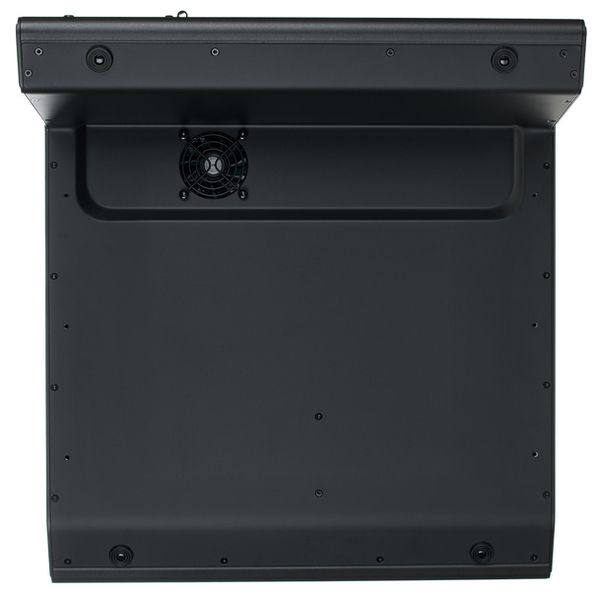

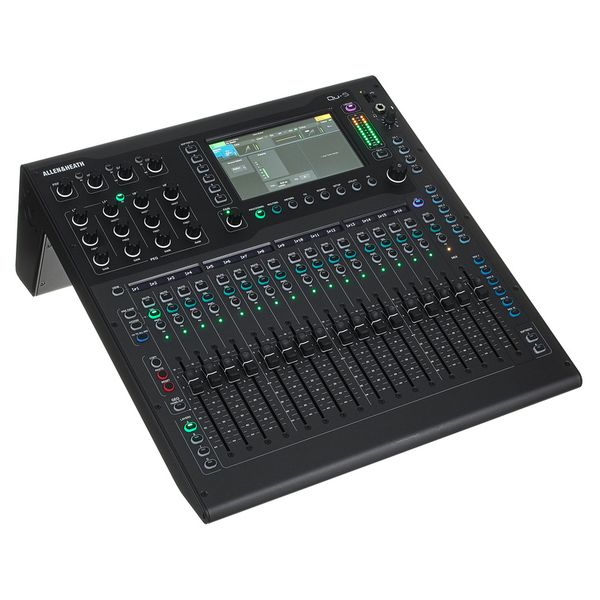

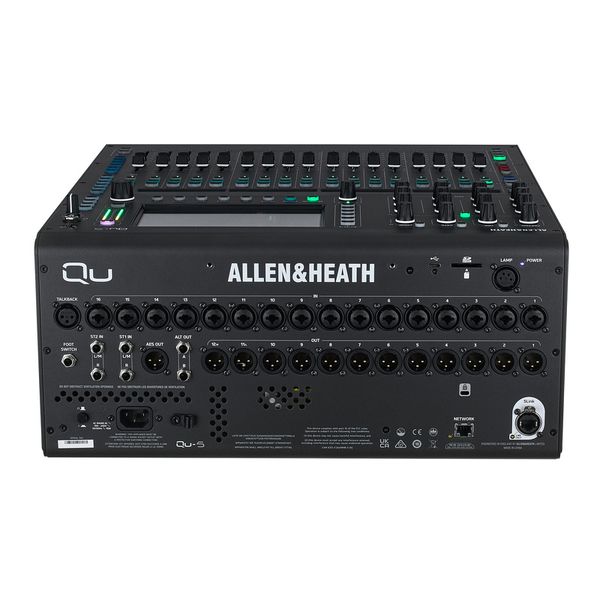

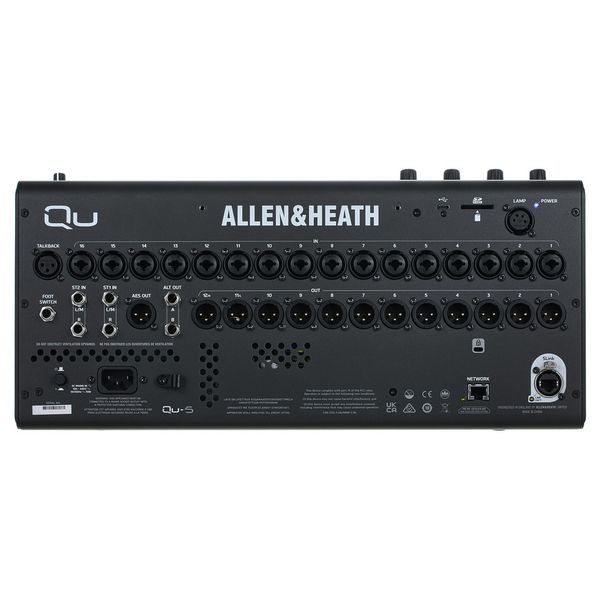

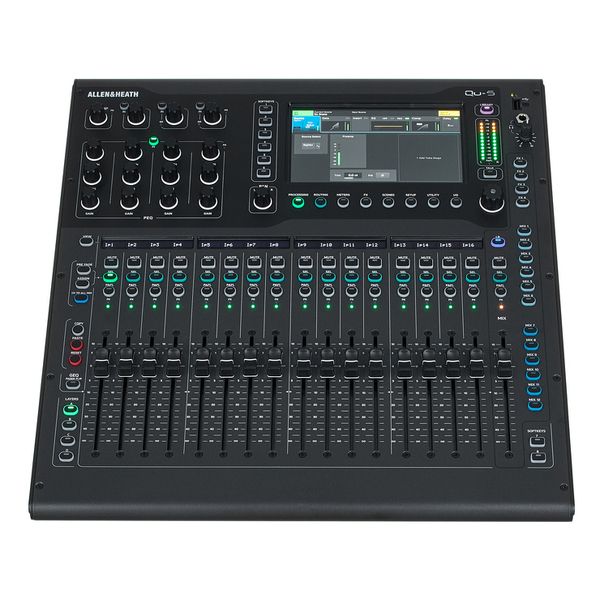

Allen & Heath QU-5
38-Channel Digital Mixing Console
- 38 inputs for mixing (32 mono, 2 stereo, USB)
- 16 mic / line combo inputs
- Two stereo line inputs
- 7" capacitive touchscreen
- Remote Apps Qu MixPad & Qu 4You
- 17 motorised faders
- 12 XLR outputs
- Two TRS outputs
- One AES3 output
- Four shannel strip levels
- Eight soft keys
- 96 kHz XCVI Core
- 12 mix busses (six mono aux/group, six stereo aux/group)
- Four matrix busses
- Six FX engines
- Slink port
- USB-A stereo recording/playback
- USB-C interface with 32 x 32 channels
- SD card multitrack recording/playback (16 x16 at 96 kHz, 32 x 32 at 48 kHz)
- Optional 19" rack-mountable (not included)
- Dimensions: (W x H x D) 440 x 476 x 211 mm
- Weight: 10 kg

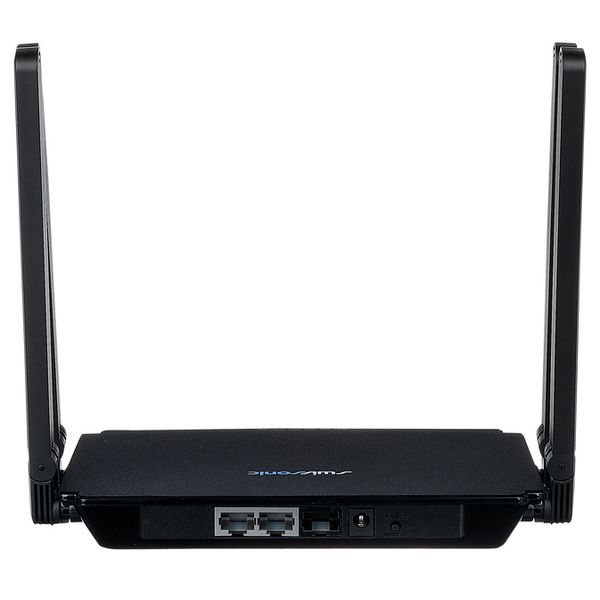

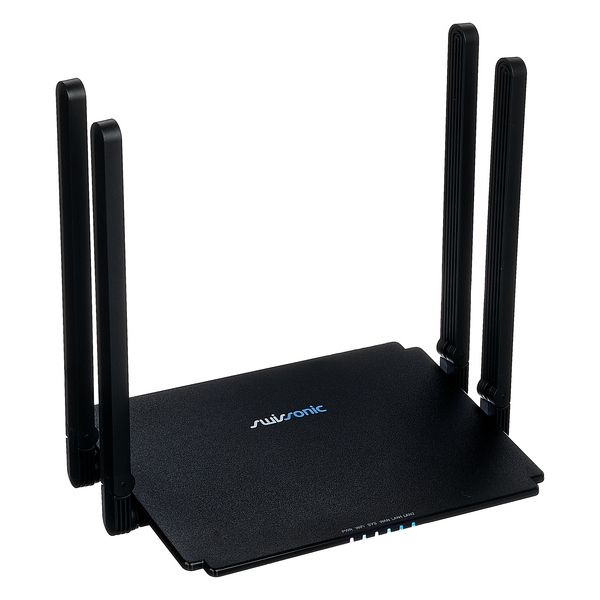

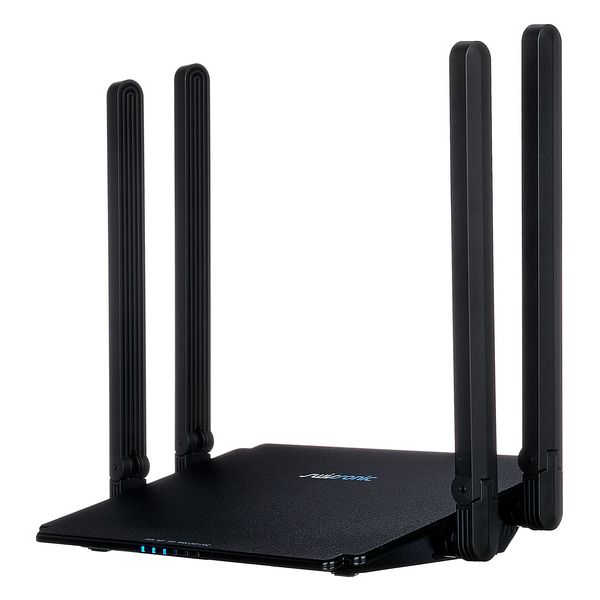

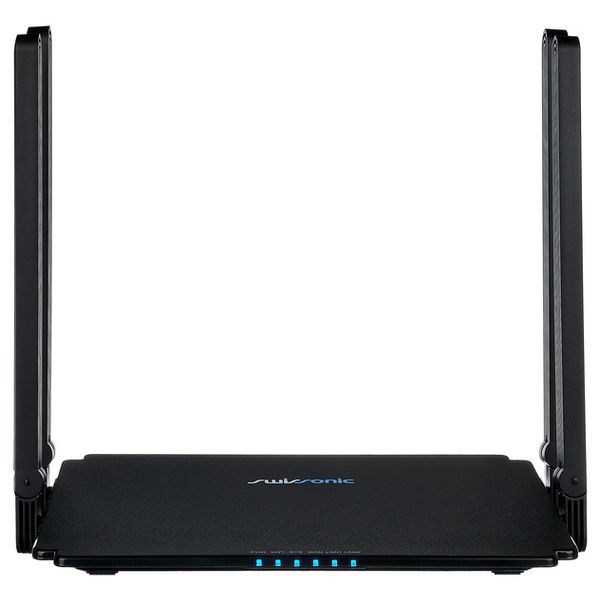

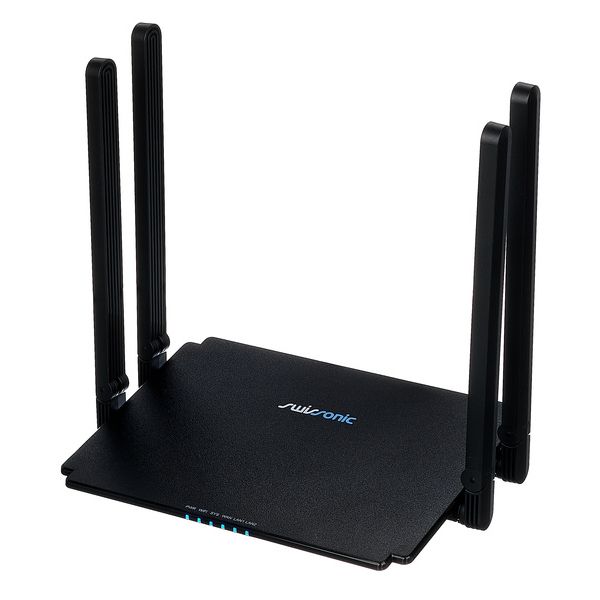

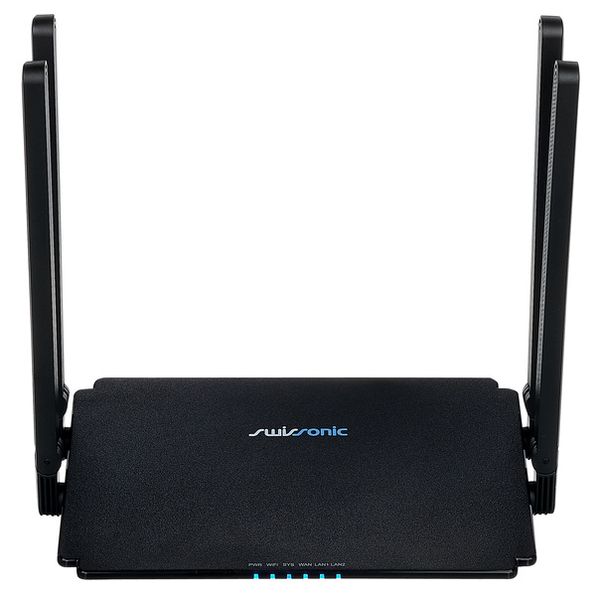

Swissonic Basic Router MKIII
Wireless Dual Band Router 2.4 and 5 GHz
- WiFi 6
- Ports: 1x WAN port (1000 Mbps), 2x LAN ports (1000 Mbps)
- Wi-Fi standards: IEEE 802.11b/g/n/a/ac/ax
- Wi-Fi data throughput: up to 574 Mbps (2.4 GHz), up to 2401 Mbps (5 GHz)
- 4 foldable antennas (2x 2.4 GHz / 2x 5 GHz) and 1 internal antenna (5 GHz)
- Features: Mesh network, parental controls, QoS, VLAN, website blocking, IPv4 / IPv6
- Dimensions excluding antenna (W x H x D): 202 x 34 x 122
- Height including antennas: 192 mm
- Weight: 232 g

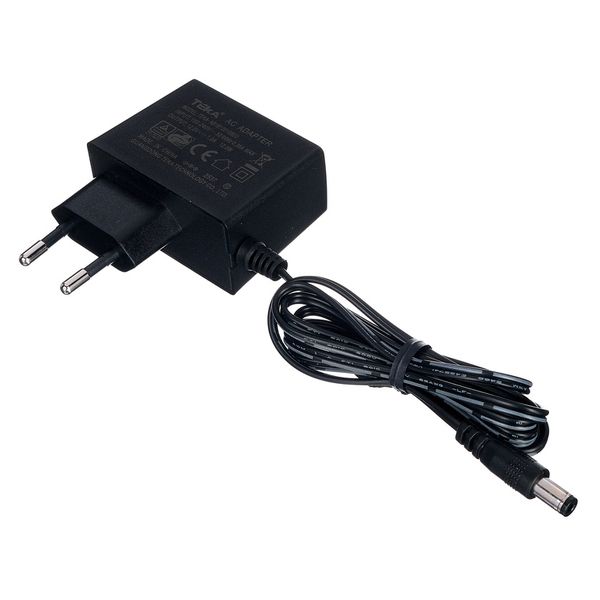

- Includes a white 90 cm network cable, a 12 V / 1 A power supply unit and a mounting plate
-
Available since April 2026
-
Item number 643965
-
Sales Unit 1 piece(s)
-
User Interface Physical
-
Number of faders 17
-
DSP Input channels 32
-
Number of Microphone Inputs 16
-
Physical outputs 12
-
Digital stagebox connection S-Link
-
Hotspot No
-
Multitrack Record Yes
-
integratated Player/Rec via USB/SD Multitrack
-
19" Rackmount Optional
-
DSP Output Channels 20
-
Busses 12
-
Number of Mono Line Inputs 16
-
Number of Stereo Line Inputs 2
-
Ethernet Yes
-
Soundcard interface USB-C
-
Recorder Format WAV
-
Scribble Strips Yes
-
RTA Yes
-
FX Processor 6
-
31 Band EQ 12
-
Delay Input Yes
-
Delay Output Yes
-
Matrix 4
-
DCA/VCA Groups 8
-
MIDI Interface No
-
Sample rate 96 kHz
-
Monitor Apps Yes
-
Separate Personal Monitor system No
-
Expansion Card slots 0
-
Digital ADAT No
-
Digital SPDIF No
-
Digital AES3/ASESEB Yes
-
Digital MADI No
-
Digital Dante No
-
110V capable Yes
-
Case No
-
Height 211 mm
-
Width 440 mm
-
Depth 476 mm
-
Weight 10 kg
-
