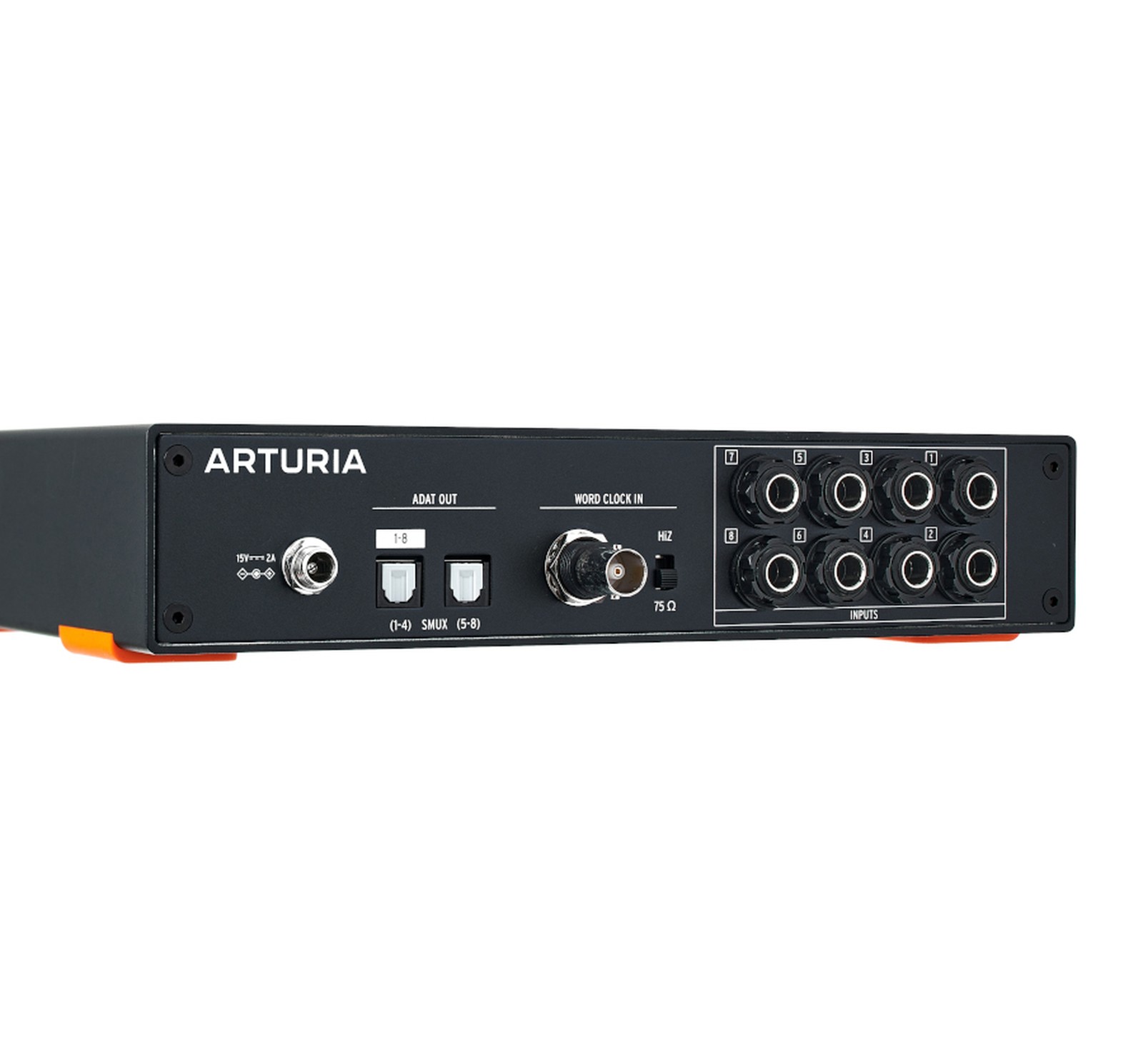

Arturia AudioFuse X8 IN
A/D Converter
- Expander with 8 analogue line inputs to expand synthesisers and instruments
- For producers and sound engineers who need additional analogue inputs for external equipment
- 24-bit AKM AD converter with up to 96kHz sampling rate
- Front panel controls with access to channel selection and link function
- Desktop design
- Eight analogue inputs: 6.3 mm jack
- One WordClock input (BNC)
- Two ADAT optical outputs, support SMUX
- Mains connection
- Sturdy 1U half-rack housing
- Rack installation possible (up to two devices next to each other)
- Dimensions (W x D x H): 221 x 216 x 48 mm
- Weight: 1.41 kg
- Included software: Analog Lab Intro, Pre 1973, Pre V76, Filter Mini, Chorus JUN-6, Comp FET-76, Delay TAPE-201, Rev PLATE-140, Phaser BI-TRON, Pre TridA, Comp DIODE-609
- Includes power supply and mounting kit for two AudioFuse X8 units
-
Available since August 2024
-
Item number 594249
-
Sales Unit 1 piece(s)
-
Amount Of Channels 8
-
AD Conversion Yes
-
DA Conversion No
-
Max. Resolution Rate in Bits 24 bit
-
Max. Sampling Rate in kHz 96 kHz
-
S/PDIF Connecor No
-
AES/EBU Connector No
-
ADAT Yes
-
Word clock Yes
-
Number of analog inputs 8
-
Number of Analog Outputs 0
-
Headphone connection No
-
Special Features 8 analog Inputs, ADAT Outputs (Ch 1-8), Word Clock Input, Software Bundle
Arturia's ADAT input expander
The AudioFuse X8 IN is a purpose-built 8-channel analogue-to-ADAT converter designed to extend the line-level input capacity of ADAT-compatible interfaces such as Arturia's AudioFuse Studio or AudioFuse 16Rig. Housed in a compact half-width, 1U aluminium chassis, it provides eight balanced TRS inputs alongside dual optical outputs supporting up to 24-bit/96kHz conversion. By expanding analogue input capacity without redundant features, the X8 IN keeps synthesizers, outboard processors, or external mixers permanently connected and recording-ready.
)
High-resolution conversion and signal integrity
The AudioFuse X8 IN's high-quality A/D converters deliver up to 119dB dynamic range with low distortion, preserving detail even in demanding sessions. Each channel offers selectable operating levels between +4dBu and -10dBV via front-panel pad controls, ensuring compatibility with both professional and consumer hardware. The DC-coupled analogue path accepts audio and CV/Gate signals, enabling digital capture and transmission via ADAT into DAW environments. A BNC Word Clock input with switchable 75 ohm termination makes sure synchronisation remains stable within larger digital systems.
)
Practical hardware integration
The half-width rack format with removable ears allows flexible desktop or rack installation, and two units can be mounted side-by-side for expanded setups. Dual ADAT outputs maintain channel counts at higher sample rates, using S/MUX operation when supported by the host interface. Front-panel Link functionality enables stereo channel pairing for faster configuration when working with stereo synths or processors, reinforcing a straightforward, hardware-focused workflow designed for demanding hybrid studios.
){kind=logo}
About Arturia
Arturia's success story began with software emulations of well-known analogue synthesizers such as the Moog Minimoog, Sequential Prophet-5, and Oberheim SEM. The popular software instruments included in the V Collection are still flagship products of the French developer today. Over time, Arturia has gradually expanded its range and now also offers a host of hardware devices, ranging from synthesizers and keyboard controllers to sequencers. Since then, the former software developer has thus also become a household name in the world of analogue synthesizers and other equipment.
AudioFuse Creative Suite
AudioFuse X8 IN includes the AudioFuse Creative Suite, featuring a curated selection of Arturia effects inspired by classic studio hardware – such as Pre 1973, Pre V76, Pre TridA, Comp FET-76, Rev PLATE-140, Delay TAPE-201, Chorus JUN-6, Filter MINI, and Phaser BI-TRON – providing studio-quality tools that extend the unit’s role from signal capture to full production workflows. Analog Lab Intro adds a curated collection of synthesizer, keyboard, orchestral and hybrid sound presets drawn from Arturia's renowned V Collection, providing immediate access to a wide palette of playable sounds. As bundled software may evolve, the manufacturer's website should be consulted for current details.
