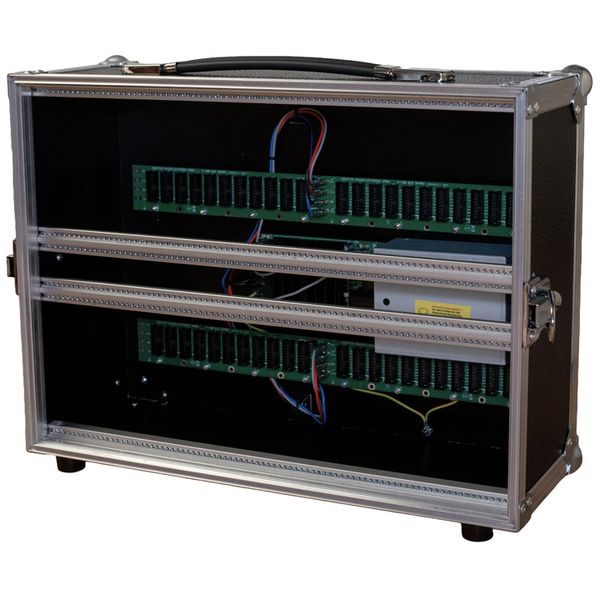

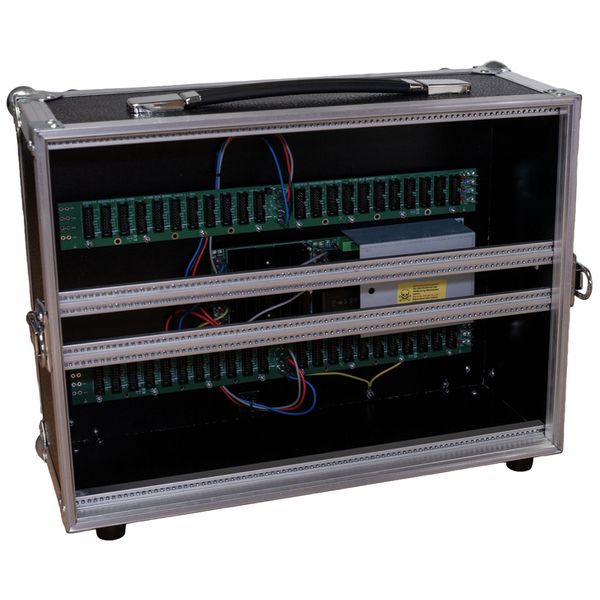

Doepfer A-100P7 7U
Eurorack Case

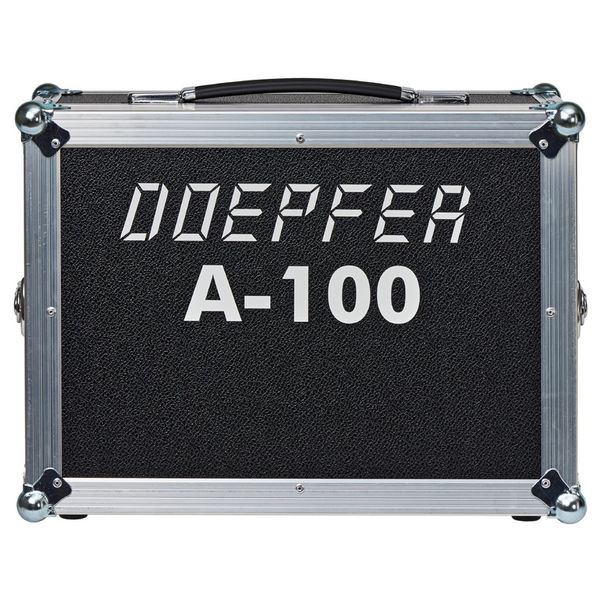

- Sturdy case with a removable lid and handle

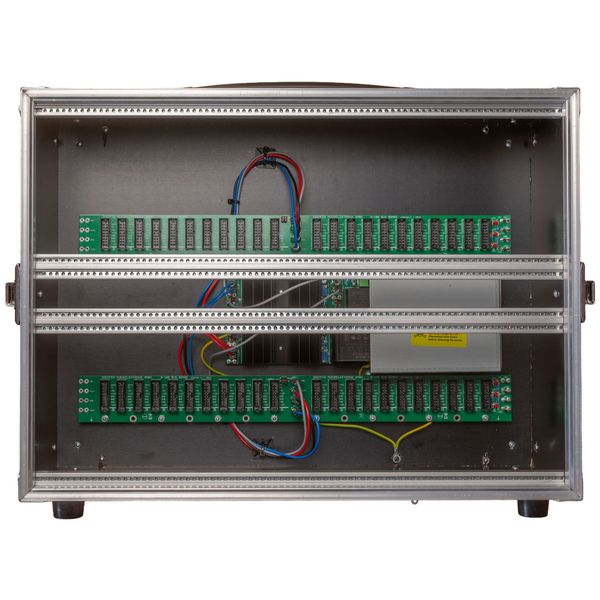

- Two bus boards with a total of 44 slots for modules
- 1U rack in Intellijel format
- Doepfer PSU3 power supply
- Installation depth for modules: 100 mm (70 mm above the power supply)
- Power supply specifications: 2.0 A (+12 V) / 1.2 A (-12 V) / 4.0 A (+5 V)
- Width: 3 x 84 HP
- Height: 2 × 3 U, 1 × 1 U
- Dimensions (W x H x D): 465 x 340 x 235 mm (including lid and rubber feet)
- Weight: Approx. 7 kg
-
Item number 653011
-
Sales Unit 1 piece(s)
-
System Eurorack
-
Width 84 TE / HP
-
Height 7 U
-
Power Supply Yes
-
Formfactor Case
-
Power Supply Specifications +12V/2000 mA, -12V/1200mA, +5V/4000mA
