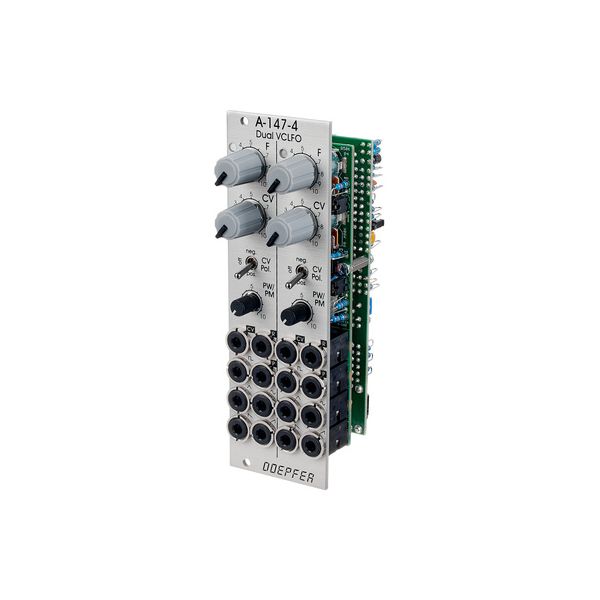

Doepfer A-147-4 Dual VCLFO B-Stock
Eurorack Module
- Voltage controlled 2-channel LFO
- Per channel: Controls for LFO frequency, CV attenuator, square wave pulse width, switch for CV polarity
- CV inputs for frequency, pulse width and reset input
- Waveform outputs for square/pulse, triangle, sine, sawtooth and ramp
- Frequency range: 0.007Hz - 1.4kHz (range selectable via jumper)
- Power consumption: 80mA (+12V) / 70mA (-12V)
- Width: 8 U
- Depth: 45 mm
-
Available since June 2023
-
Item number 594162
-
Sales Unit 1 piece(s)
-
Width 8 TE / HP
