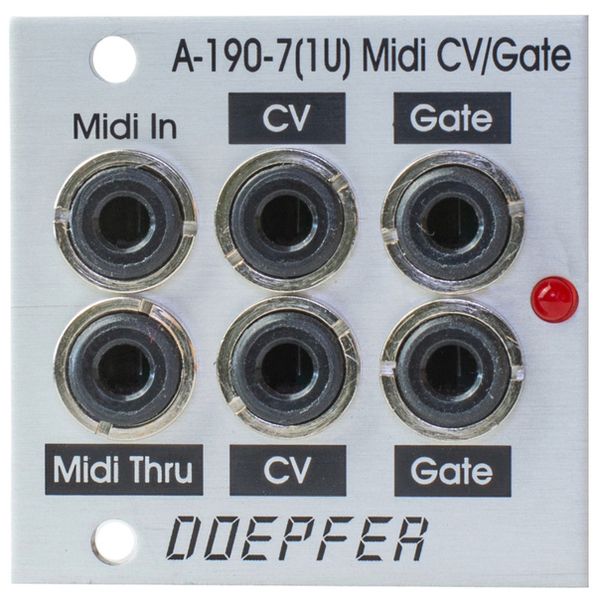

Doepfer A-190-7 1U

Doepfer A-190-7 1U; Eurorack module; 1U micro MIDI CV/gate interface; monophonic MIDI-to-CV/gate interface for integrating external MIDI devices; reliably converts MIDI commands into control voltage and gate signals in a compact format with support for TRS MIDI type A and B; jumper selection for TRS MIDI type A and B, LED status indicator for gate activity, factory-set MIDI channel 1 (adjustable via solder pads) as well as internal normalization to the internal MIDI outputs of other modules; 3.5 mm jack sockets for MIDI In and MIDI Thru as well as two parallel CV outputs (range: 0V to +5 V) and gate outputs (+10 V); power consumption: 30 mA (+12 V) / 10 mA (-12 V); width: 8 HP; depth: 45 mm

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Item number 653051
Sales Unit 1 piece(s)
Width 8 TE / HP
