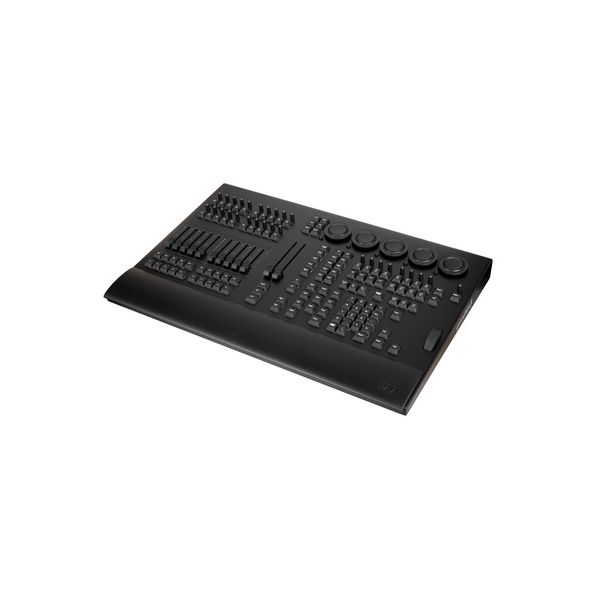

MA Lighting grandMA3 onPC Command B-Stock

Lighting Control Desk

• Real-time control of 4096 parameters in combination with the free grandMA3 onPC software
• Command section layout identical to grandMA3 compact models
• 29 Rotatable RGB backlit encoders
• 5 Dual encoders
• 10 Motorised 60 mm faders
• 40 Independent playbacks
• 16 Assignable x-buttons
• 2 Backlit and motorised A/B 100mm faders
• 1 Level wheel
• Individually backlit, dimmable and silent (clickless) buttons
• Easily connects via USB to any PC with grandMA3 onPC
• Incl. dust cover, 2m USB2.0 cable and magnetic label strip for 10 faders

Note: A grandMA3 onPC system supports a total maximum of 4096 parameters.

Technical data:

• Parameters: 4096 (HTP/LTP)
• Parameter Mode2: none
• Supply voltage: 100-240 V / 50/60 Hz
• Power: max. 50 VA
• Dimensions (W x D x H): 620 x 427 x 102 mm
• Weight: 10 kg

Connections:

• 1x IEC-60320 C14 mains plug
• 2x DMX512-A Out (5-pin XLR female)
• 1x DMX512-A In (5-pin XLR male)
• 1x MIDI In (5-pin DIN female)
• 1x MIDI Out (5-pin DIN female)
• 1x Linear Timecode In (3-pin XLR female)
• 1x GPI General Purpose Interface (D-SUB DE9 female) for remote control
• 1x USB 2.0 (type B)
• 1x LED desk light (4-pin XLR female)
