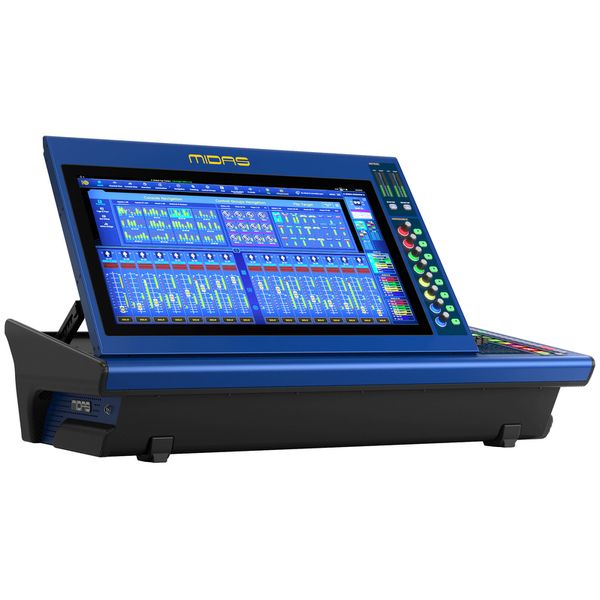

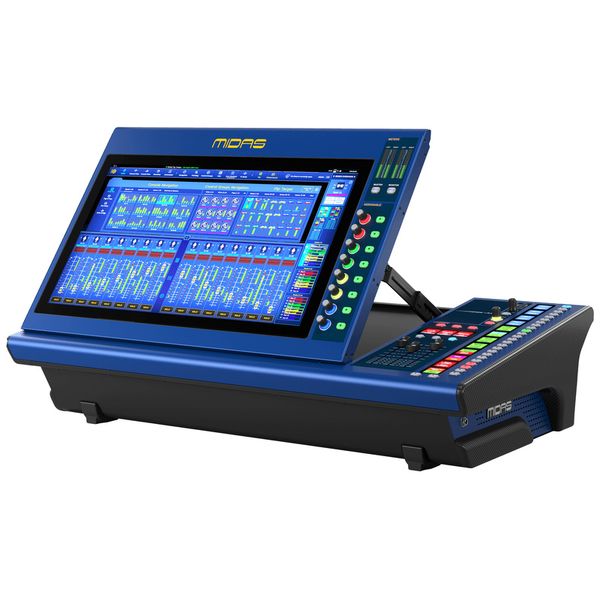

Midas HD96-Air-CC-TP

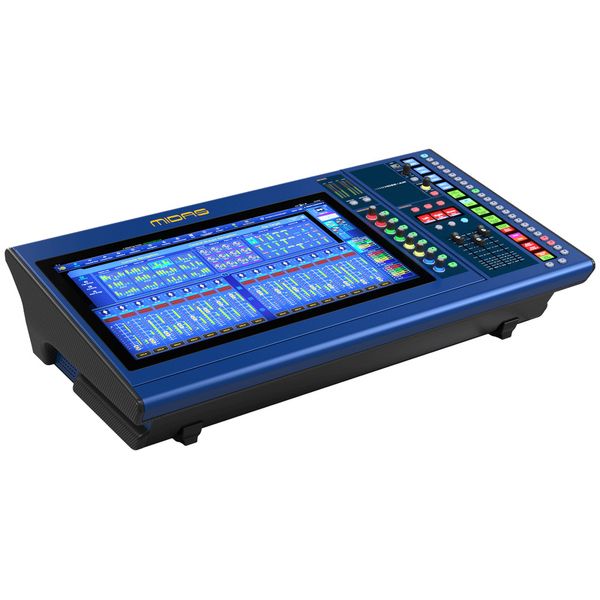

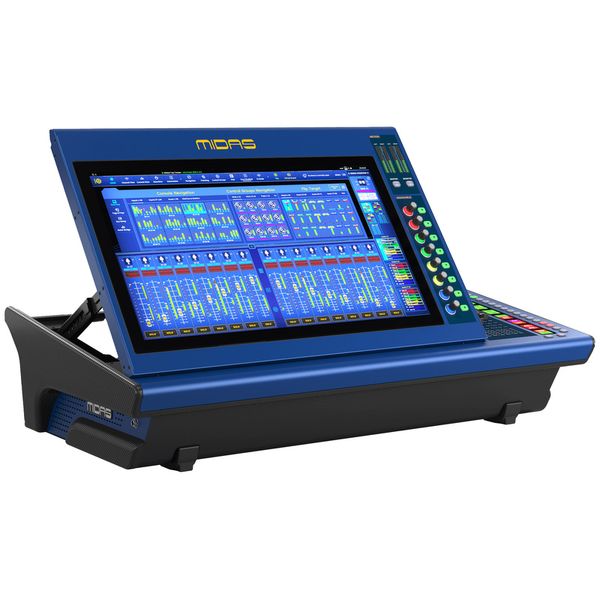

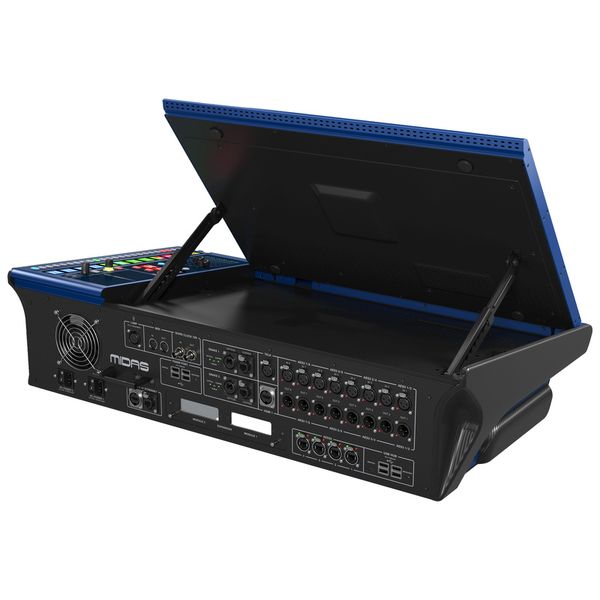

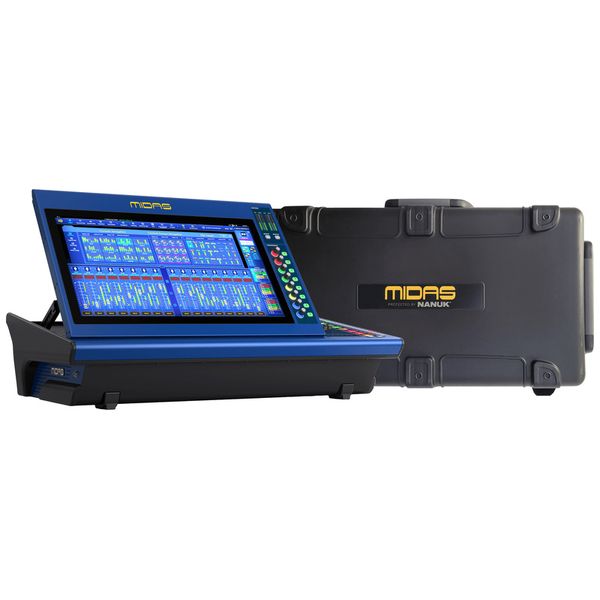

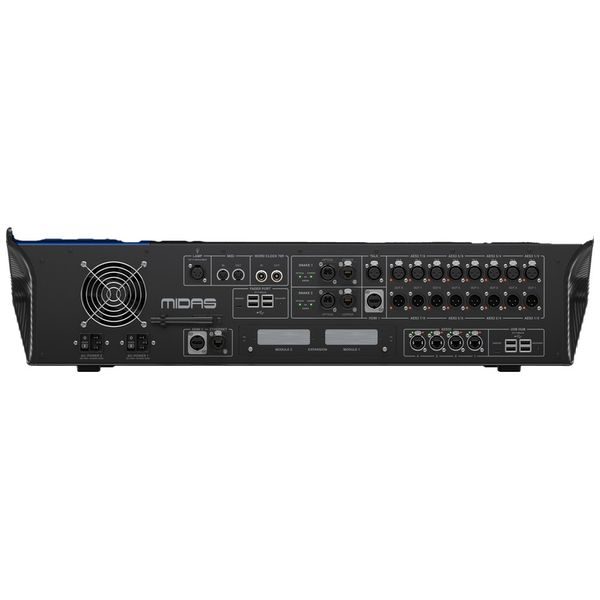

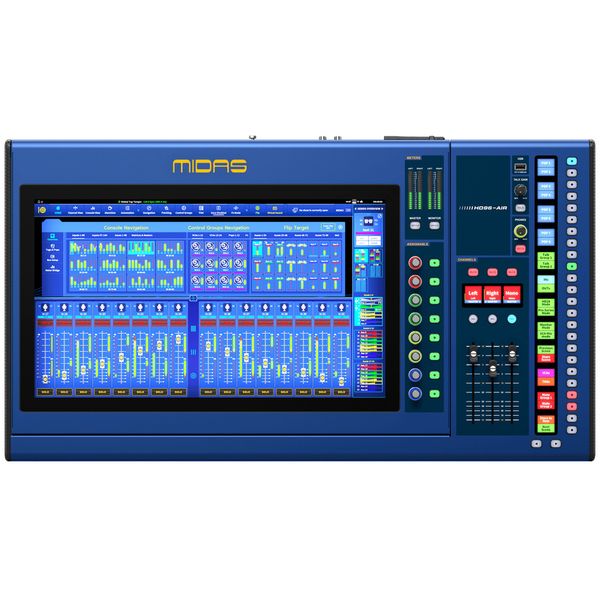

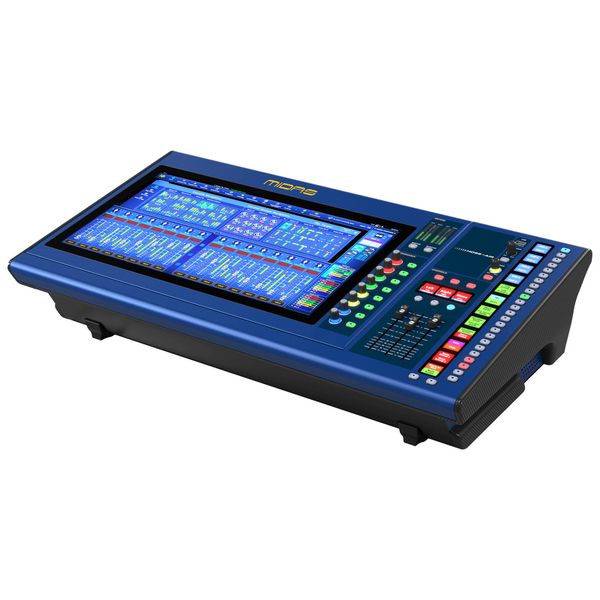

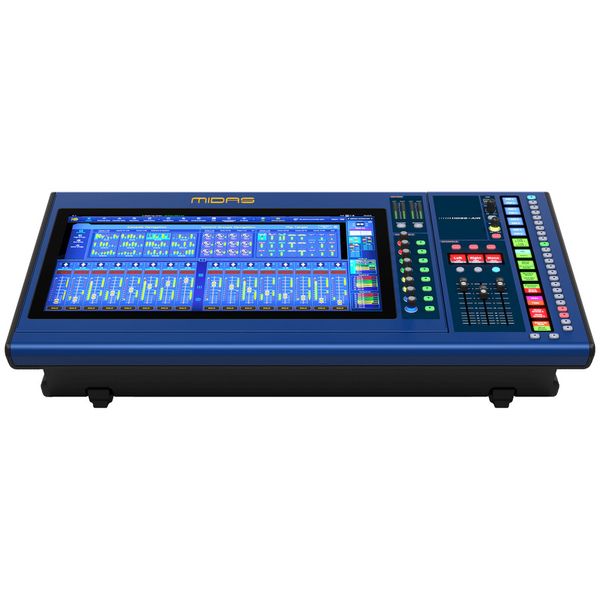

Midas HD96-Air-CC-TP - Live Digital Console, 144 input channels, 123 flexible mix busses, 24 VCA groups, 24 POPulation groups, 96 kHz sample rate, up to 24 digital multi-channel effect engines, up to 48 assignable 1/3-octave Klark Teknik DN370 graphic equalisers, anti-glare 21" full HD multi touch screen, 15 full colour LCD info displays, 3 100 mm motorised faders, 8 freely configurable rotary knobs, 8 freely configurable buttons, 24 shortcut buttons, 2 freely configurable buttons, 4 20-segment volume meters, Bluetooth 5. 0 Dual Mode, 2.4 GHz and 5 GHz Wi-Fi, 8 AES3 3-pin XLR In, 8 AES3 3-pin XLR Out, 4 AES50 RJ45, MIDI 5-pin In/Out, BNC World Clock 75R In/Out, Snake 1 Optical/Copper, Snake 2 Optical/Copper, 1 Universal RJ45, 3-pin XLR Talkback, 8 USB 3. 0 In, 2 Micro-USB In, 2 HDMI Out, redundant power supply unit, dimensions (W x H x D): 465 x 211 x 806 mm, weight: 16.7 kg, incl. Midas HD96-Air-CC-IP Touring Case, optional stage boxes DL 231, DL151, DL152, DL153, DL154, DL155, DL251

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Item number 627401
Sales Unit 1 piece(s)
User Interface Physical/remote
Number of faders 3
DSP Input channels 144
Mic Preamp 8
Physical outputs 8
Digital stagebox connection AES50
Hotspot No
Multitrack Record Yes
integratated Player/Rec via USB/SD No
19" Rackmount No
DSP Output Channels 123
Busses 123
Mono-Line Input 8
Stereo-Line Input 0
Ethernet Ethernet
Soundcard interface No
Recorder Format No
Scribble Strips Yes
RTA No
FX Processor 24
31 Band EQ 48
Delay Input Yes
Delay Output Yes
Matrix 123
DCA/VCA Groups 24
Midi Connector No
Sample rate 96 kHz
Separate Personal Monitor system No
Expansion Card slots 2
Digital ADAT No
Digital SPDIF No
Digital AES3/ASESEB Yes
Digital MADI Optional
Digital Dante Optional
110V capable Yes
Case Optional
Height 211 mm
Width 465 mm
Depth 806 mm
Weight 16,7 kg
