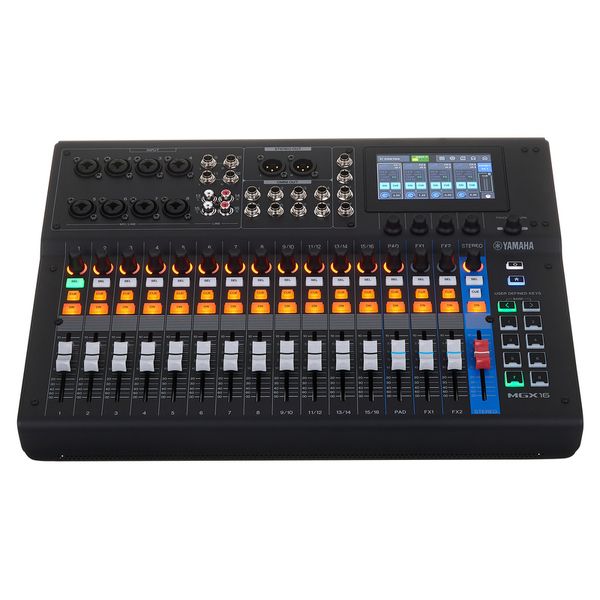

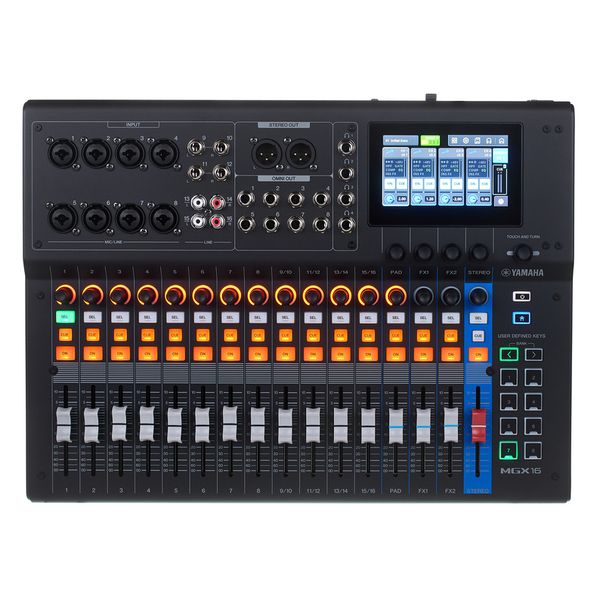

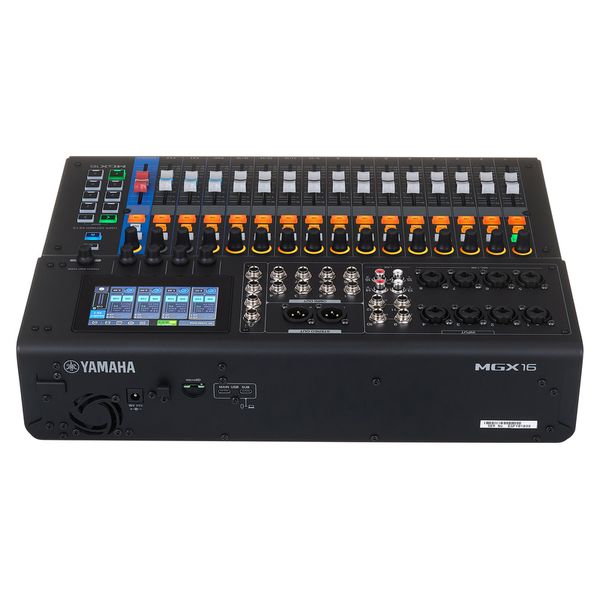

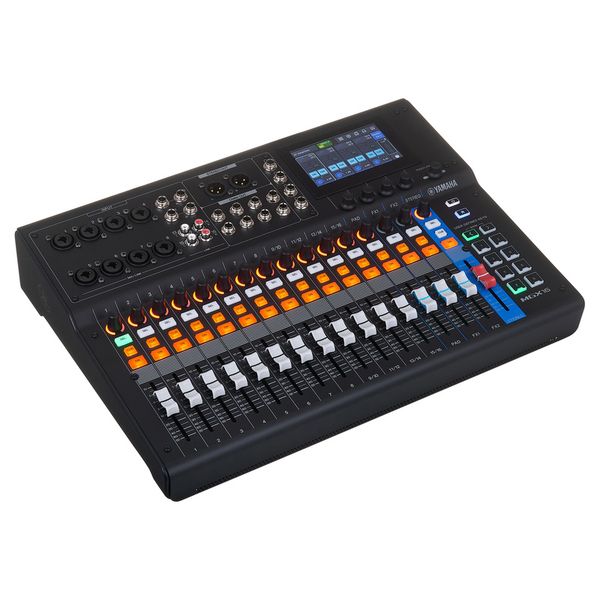

Yamaha MGX16 BK

Compact 16-Channel Digital Mixer

For live applications, streaming, audio production and professional recording
Buses: 8 x Mix + 2 x FX + 1 x CUE + 1 x Stereo

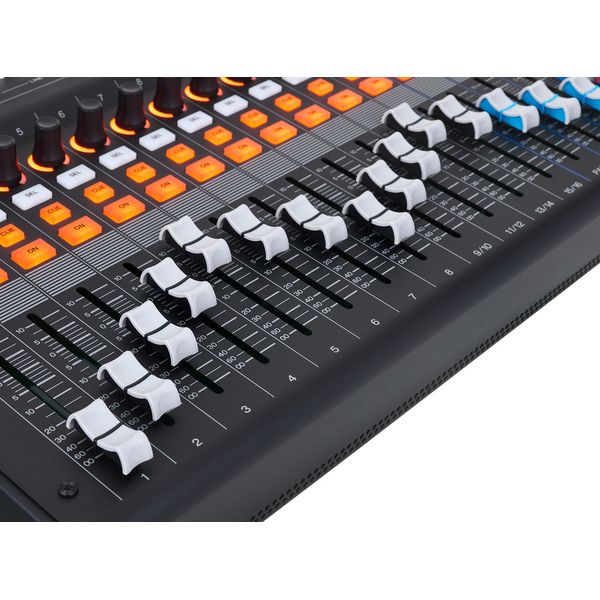

15 + 1 faders (non-motorised)

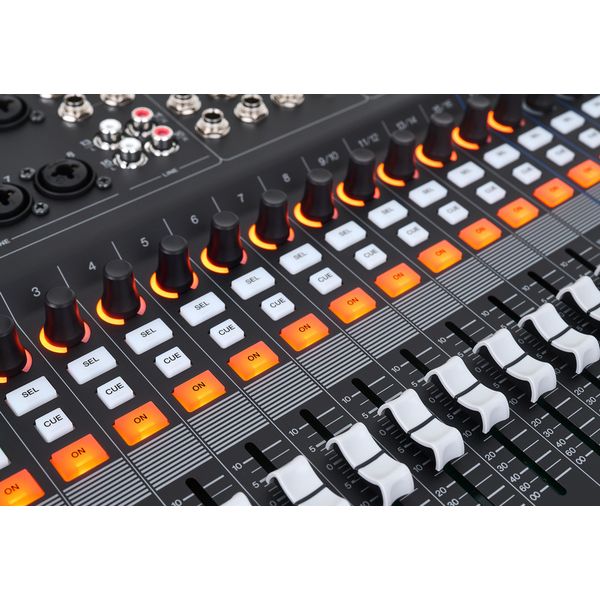

Per channel rotary control, select, cue and on buttons
4.3" touchscreen with five rotary controls
Eight assignable function keys in banks, switchable
Built-in DSP processor for latency-free monitoring
Bluetooth 5.0, A2DP
Built-in USB audio interface
MicroSD card slot
16-track recording / 2-track playback (24-bit / up to 96 kHz)
Functions: Auto Gain, Clip Safe, Simple/Standard Mode, Scene Recall
Dimensions (W × H × D): 419 × 96 × 319 mm
Weight: 4.6 kg
Colour: Black
Includes external 16 V power supply (PA-300) as well as Cubase AI, WaveLab Cast, Basic FX Suite and Steinberg Plus

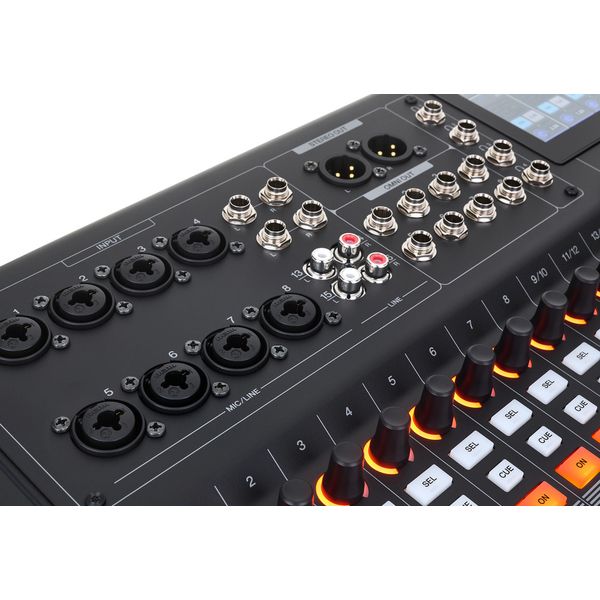

Connectors:

Microphone/line inputs: 8 x XLR/6.3 mm jack combo
Line input: Four 6.3 mm jacks
Inputs: Four RCA (2 x L/R)
Line outputs: Two XLR, 8 x 6.3 mm jack
Four stereo headphone outputs: 6.3 mm jack
Two USB-C ports
Input for external power supply

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since January 2026
Item number 634623
Sales Unit 1 piece(s)
User Interface Physical
Number of faders 16
DSP Input channels 0
Mic Preamp 8
Physical outputs 8
Digital stagebox connection No
Hotspot No
Multitrack Record Yes
integratated Player/Rec via USB/SD stereo
19" Rackmount Optional
Max.number of input channels 16
Microphone Inputs 8
Analog Line Inputs 16
Analog Line Outputs 8
DSP Output Channels 0
Busses 8
Digital Inputs 0
Mono-Line Input 12
Digital Outputs 0
Stereo-Line Input 2
Computer interface USB
Ethernet No
Special Features 18x18 USB Audio Interface, MicroSD Card Slot; 16 Track Recording / 2 Track Playback
Soundcard interface USB-B
Recorder Format WAV/MP3
RTA No
FX Processor 2
31 Band EQ 0
Matrix 0
DCA/VCA Groups 0
Midi Connector No
Sample rate 96 kHz
Separate Personal Monitor system No
Expansion Card slots 0
Digital ADAT No
Digital SPDIF No
Digital AES3/ASESEB No
Digital MADI No
Digital Dante No
Case No
Height 96 mm
Width 419 mm
Depth 319 mm
Weight 5,26 kg
