Midas M32R Live / DL32 Bundle
Bundle offer comprising
Midas M32R Live
- Digital Mixing Console
- 16 Mic Inputs
- 8 XLR outputs
- 8 DCA and 6 Mute groups
- 17 Motor fader
- 5" Colour display
- 32x32 USB Audio Interface
- 25 Mix Buses
- DAW Remote control
- Wireless Remote Control via IOS App
- Dimensions (W x D x H): 478 x 617 x 208 mm
- Weight: 14.3 kg
- Includes rack-mounts

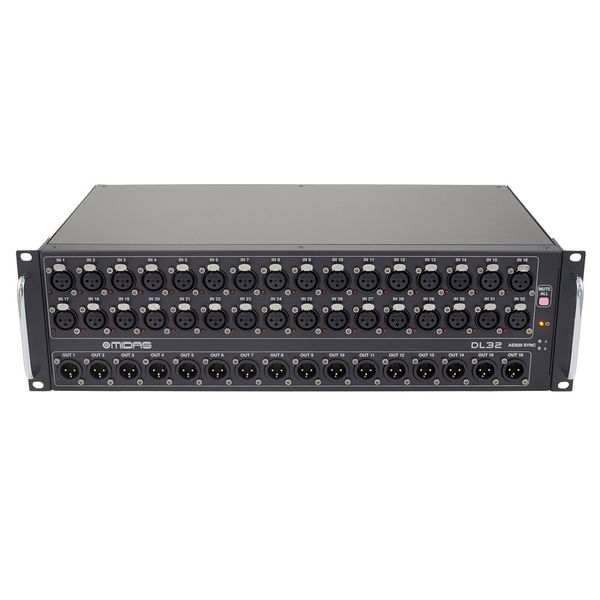

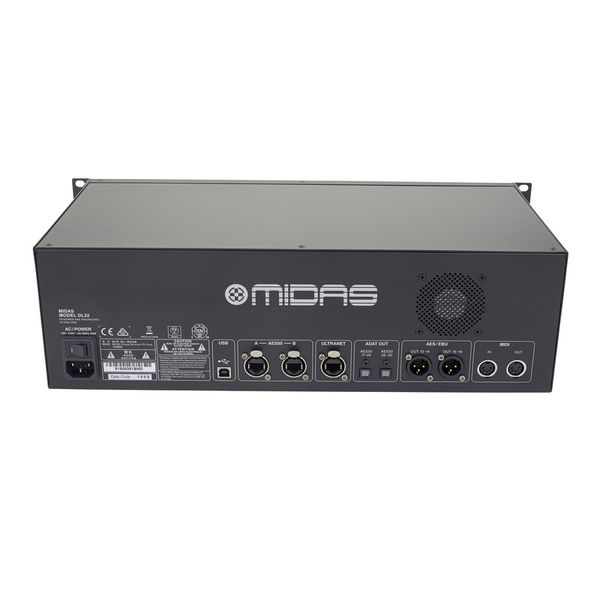

Midas DL 32
- Digital Stagebox
- 32 Inputs
- 16 Outputs
- AES50 network (Klark Teknik)
- Up to 100 m CAT-5e cabling possible
- Double ADAT output
- MIDI input and output
- USB port for firmware updates
- Depth of metal bracket on the front: 2.2 cm
- Format: 19" / 3 U
- Installation depth: 21 cm

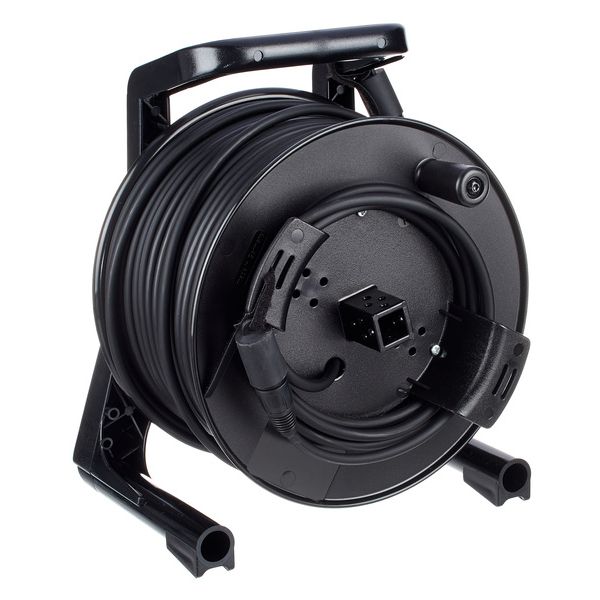

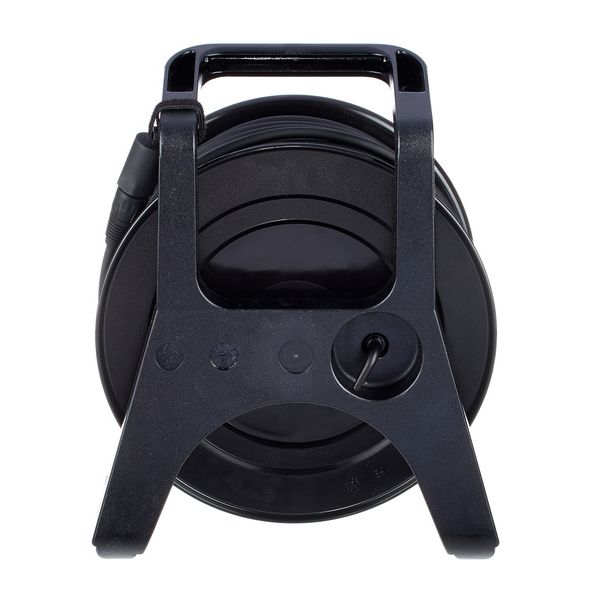

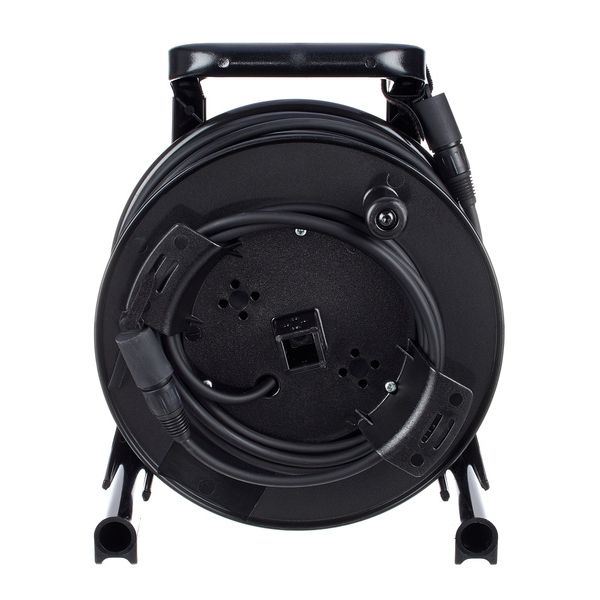

Klark Teknik NCAT5E-50m
- Network Cable
- Suitable for touring
- Wear-resistant and shielded Cat5e network cable
- 50 Meter roll
- Robust and very flexible original Neutrik EtherFlex® Cat5e cable
- Dual shielding protects against EMI and ESD interference
- Tested for AES50 and EtherSound audio network
- Rugged, lightweight Schill cable drum with auxiliary winder and integrated brake
- Hirose RJ45 connections protected by Neutrik etherCON plug at both ends
- Rubber caps on etherCON connections for protection during transport
available since
January 2023
Item number
559716
sales unit
1 piece(s)
User Interface
Physical/remote
Number of faders
17
DSP Input channels
40
Mic Preamp
16
Physical outputs
34
Digital stagebox connection
AES50
Hotspot
No
Multitrack Record
Yes
integratated Player/Rec via USB/SD
stereo
19" Rackmount
Yes
DSP Output Channels
24
Busses
16
Mono-Line Input
54
Stereo-Line Input
1
Ethernet
Ethernet
Soundcard interface
USB-B
Recorder Format
WAV
Scribble Strips
1
RTA
No
FX Processor
8
31 Band EQ
8
Delay Input
1
Delay Output
1
Matrix
6
DCA/VCA Gruppen
8
Midi Connector
Midi-Din
Sample rate
48 kHz
Monitor Apps
1
Separate Personal Monitor system
Optional
Expansion Card slots
1
Digital ADAT
Optional
Digital SPDIF
No
Digital AES3/ASESEB
No
Digital MADI
Optional
Digital Dante
Optional
110V capable
1
Case
Included
Height
208 mm
Width
478 mm
Depth
617 mm
Weight
14,3 kg
