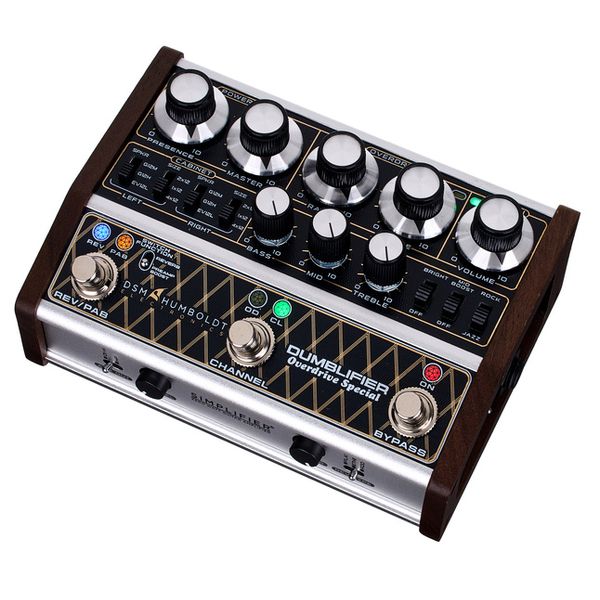

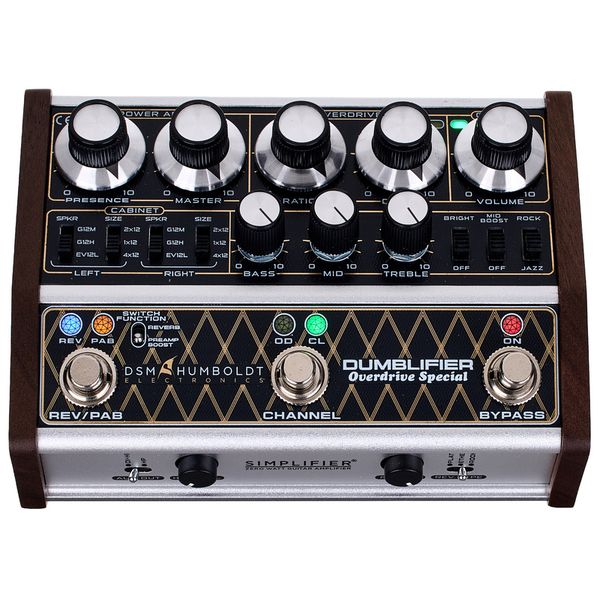

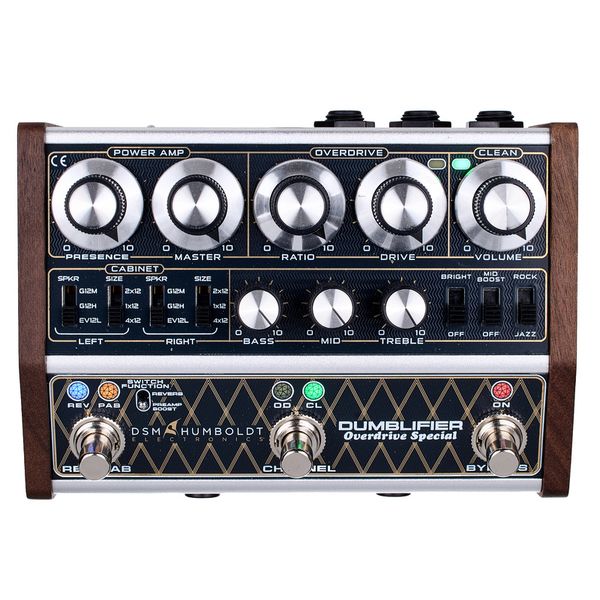

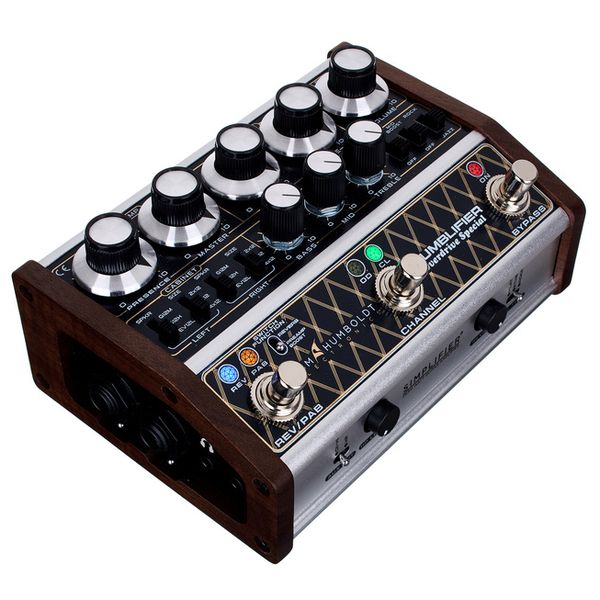

DSM & Humboldt Dumblifier Overdrive Special

Effect Pedal for Electric Guitar

• Overdrive
• Developed to replicate not only the sound but also the feel of one of the most sought-after guitar amplifiers
• Can be used as a complete amp replacement with cabsim and stereo features, either standalone or at the end of a pedalboard
• Organic response behaviour through analogue modelling technology
• Delivers unmistakable ‘punchy’ compression and smooth sustain for which Dumbles are renowned
• Two channels (Clean & Overdrive)
• Stereo FX loop
• Stereo cabinet simulation
• Stereo reverb

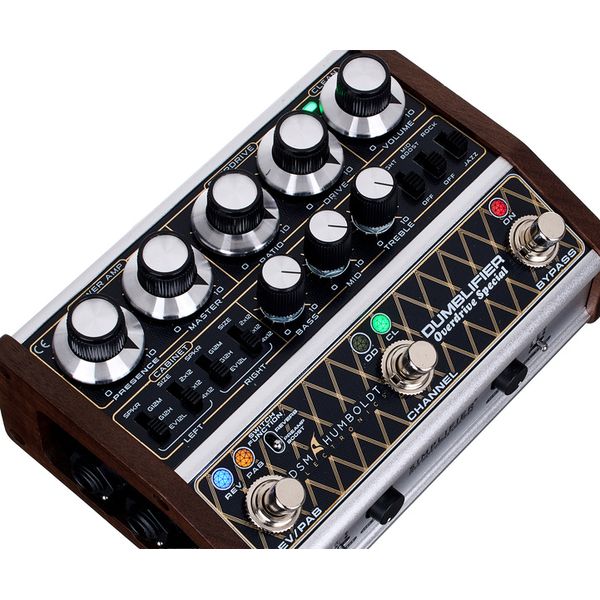

• Controls: Power Amp Section: Presence, Master
• Overdrive section: Ratio, Drive, Clean Volume
• EQ: Bass, Mid, Treble
• Headphones level
• Reverb level
• Switches: 2x Speaker Left (3 Types and 3 Sizes), 2x Speaker Right (3 Types and 3 Sizes)
• EQ: Bright, Mid Boost
• Vocing: Rock, Jazz
• Reverb/Preamp Boost assignment
• Aux out type
• Reverb type: Plate, Ether, Room
• 2x Cabsim bypass
• Ground lift
• Input boost
• LED: Channel, bypass
• Reverb/Boost on/off
• Power consumption: 250 mA
• Power via 9 V DC power supply (not included - suitable power supply: Art. 409939)
• Dimensions (W x D x H): 135 x 115 x 65 mm
• Weight: 420 g

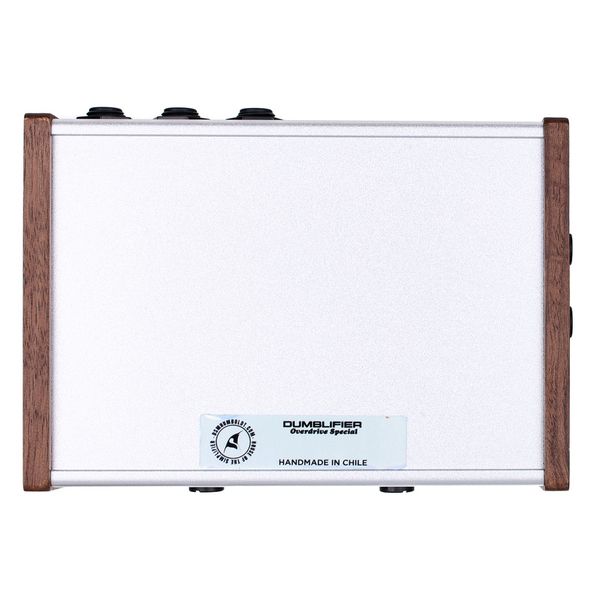

• Handmade in Chile

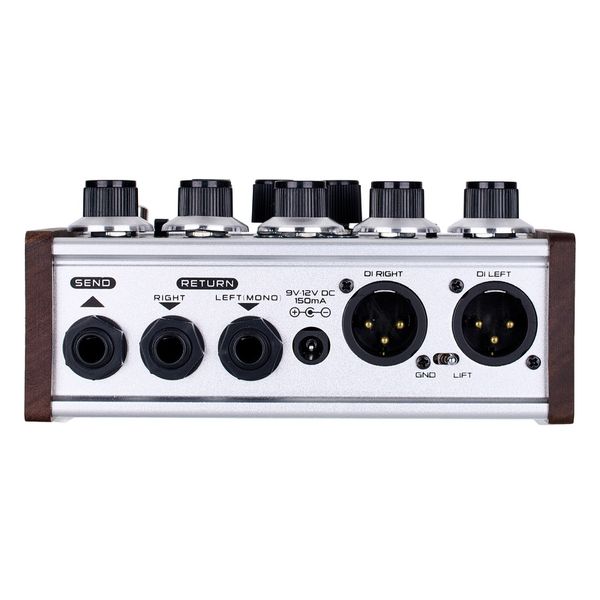

Connectors:

• Input: 6.3 mm jack
• Two outputs: 6.3 mm jack
• Send: 6.3 mm jack
• Return R: 6.3 mm jack
• Return L/Mono: 6.3 mm jack
• DI Out L&R: 2 x XLR
• Headphones: 3.5 mm stereo jack
• Aux in: 3.5 mm stereo jack
• Power supply connection: Barrel connector 5.5 x 2.1 mm, centre negative

Note: Battery operation is not supported.
