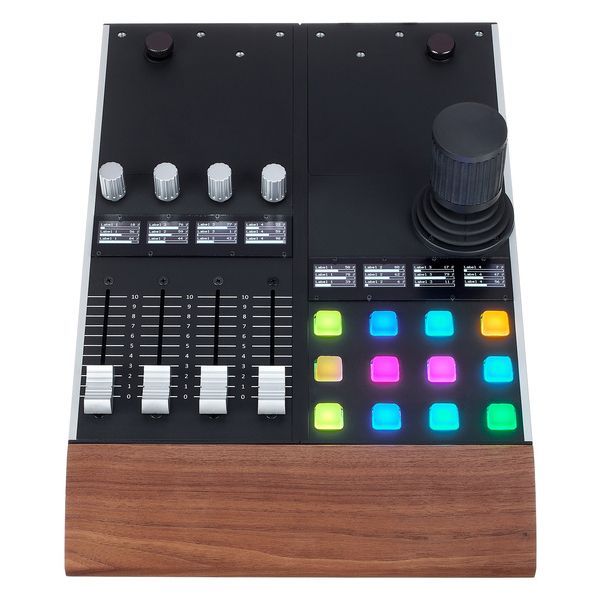

MakePro X XTEND-B10-PTZ xTend Controller

Stream Deck / Companion Setup Extension With High-quality Controls For Professional Media Control

  • 12 RGB buttons
  • 4 Touch-sensitive rotary encoders
  • 4 Touch-sensitive 60 mm motor faders

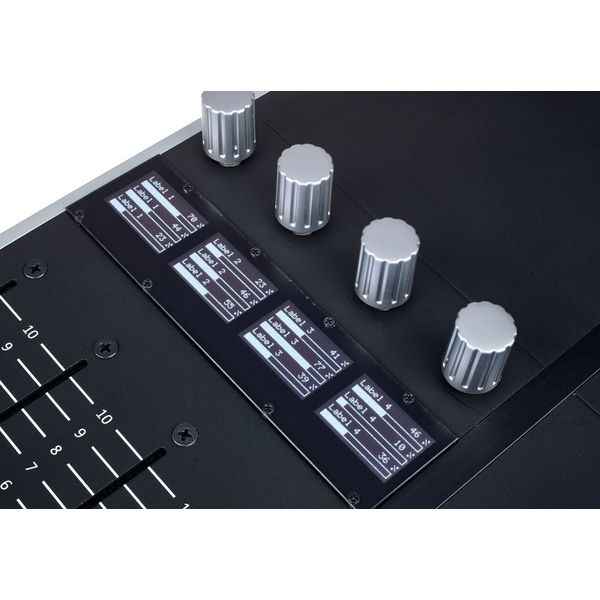

  • 8 High-resolution OLED displays
  • 1 Three-axis XYZ stick

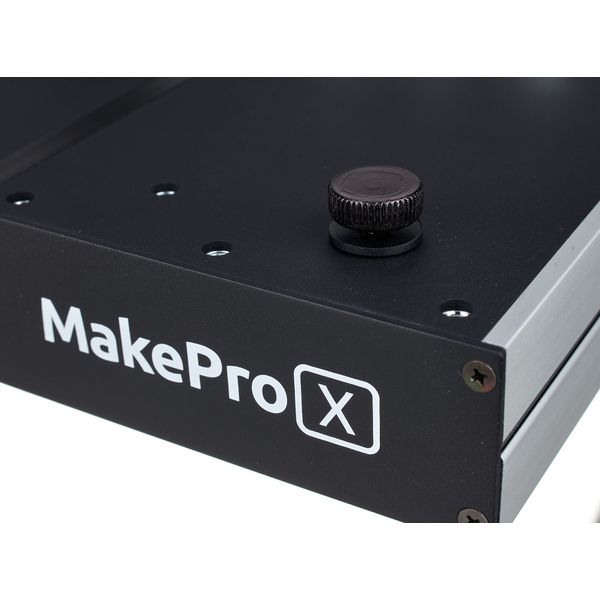

  • Solid construction
  • High quality aluminium and wood finishes - repairable and built to last
  • The glue software allows a fully customised definition of the functionality from an extensive list of supported target devices
  • Glue supports many protocols and is expandable by the community via cloud connection
  • Modular design: Separation of hardware and software
  • Interface to host computer via USB Type-C
  • 12V 3A Plug-in power supply with DC connector: 5.5 mm x 2.1 mm (centre positive)
  • Dimensions (W x D): 220 x 333 mm
  • Incl. 2 m Type-C to Type-A USB cable
  • Made in Germany

Glue Software:

  • Supports multiple controllers at the same time
  • Supports multiple protocols and targets at the same time
  • Flexible zoning of the functionality of the lines and individual controls
  • Supports multiple layers and shift key assignments
  • Creation and easy demand of complete solutions and upload to the cloud
  • Download solutions from the cloud for a quick and easy setup
  • Headless and headful on Windows, Mac and Linux (including Pi)
  • Multiple OLED display layouts with support for bars and metering
  • Encoder/fader touch switching of OLED display pages
  • Built-in apps for DMX lighting and PTZ camera control
  • An easy definition of the individual targets via standard protocols
  • Direct support for Stream Deck
  • Close integration with Companion software, and much more

Compatible Hardware With Glue Software:

  • Blackmagic ATEM device family
  • OBS and VMIX Streaming Studio packages
  • VISCA PTZ and MiddleThings (APC-R) gimbal camera control protocols
  • Behringer X32/M32 audio mixing consoles
  • RME TotalMix interface with embedded DSP audio core
  • UAD Apollo audio interface and Luna mixer
  • Any DAW that supports Mackie Control Universal (Logic, Cubase, Live, etc.)
  • Various DMX interfaces with fixture library support
  • All MIDI, freely definable targets (collaborative cloud)
  • All OSC, freely definable targets (collaborative cloud)
  • Extensive support of the NodeRED (even without running a Glue instance)
  • TCP, UDP, HTTP, MQTT, Websockets, and much more
Available since July 2022
Item number 546655
Sales Unit 1 piece(s)
Bluetooth No
5-pole DIN MIDI No
Ethernet No
Fader 4
Rotary Encoders 4
Audio I/O No
Transport Function No
Footswitch connection No
Foot Controller Connection No
Bus-Powered No
Jog No
Joystick Yes
Additional Features 12 RGB Buttons, 60 mm Motor Faders, 8 OLED Displays
Type Extension
DMX-Outputs 0
DMX-Inputs 0
Show more
8.899 AED 2.268,07 €
Plus 275 AED shipping
The price in AED is a guideline price only
Since we ship from Germany, additional costs through taxes and customs may be incurred
On request
On request

For this product the supply situation is currently uncertain or our supplier has not yet provided us with an expected delivery date for this product. Kindly contact us for further information on the availability.

Standard Delivery Times
