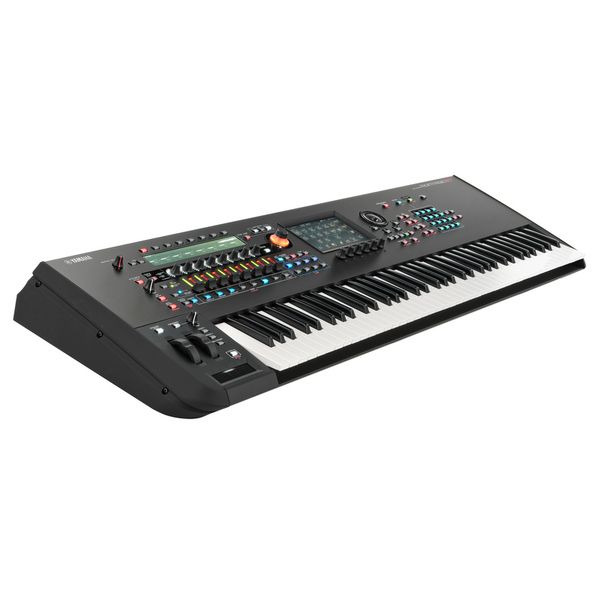

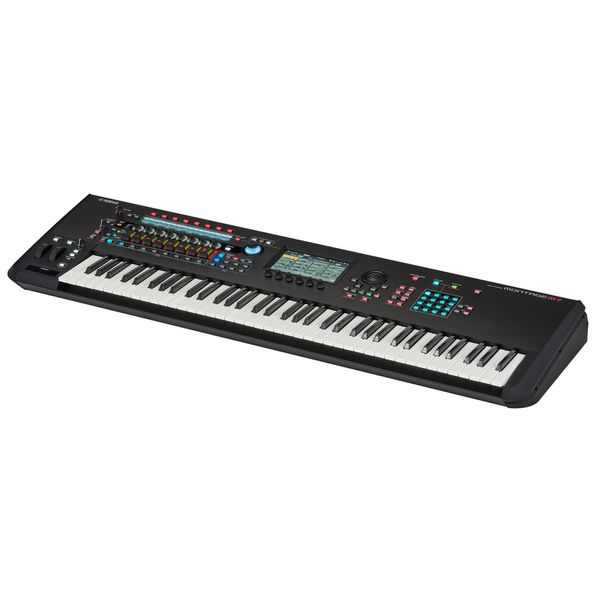

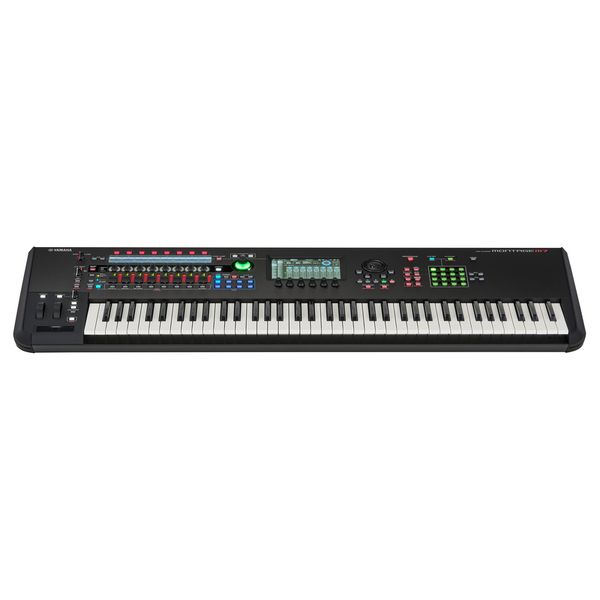

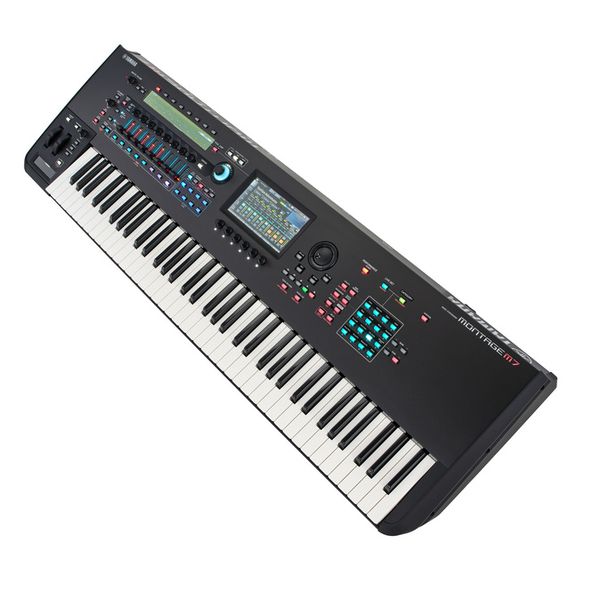

Yamaha Montage M7
Start 360°
This article is a Yamaha agency product.
Synthesizer Workstation with 76 Keys (FSX)
- Motion Control Synthesis Engine with AMW2 (max. 128 Elements), FM-X (8 Operators, 88 Algorithms) and AN-X (3 Oscillators, 1 Noise)
- 3,487 Performances
- Live set mode with 128 presets and 2048 user sets
- Over 200 effects
- Polyphonic Aftertouch

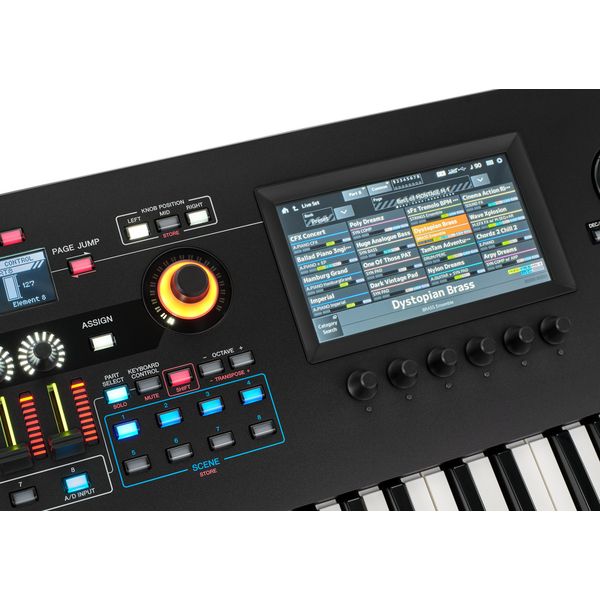

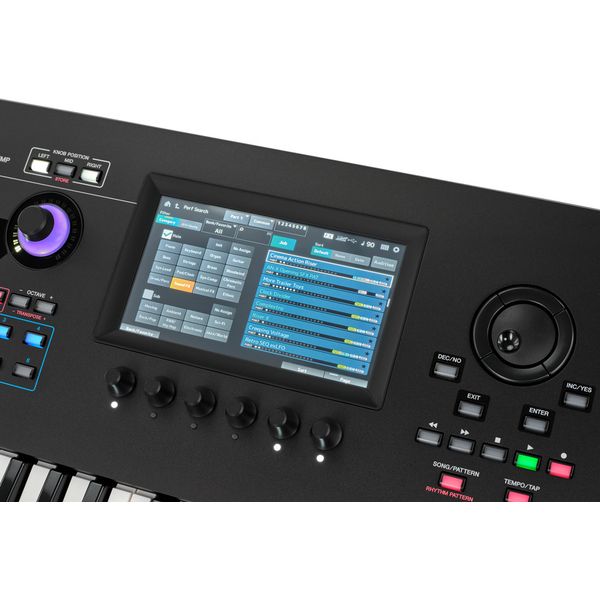

- 7" TFT Colour Wide VGA LCD touchscreen

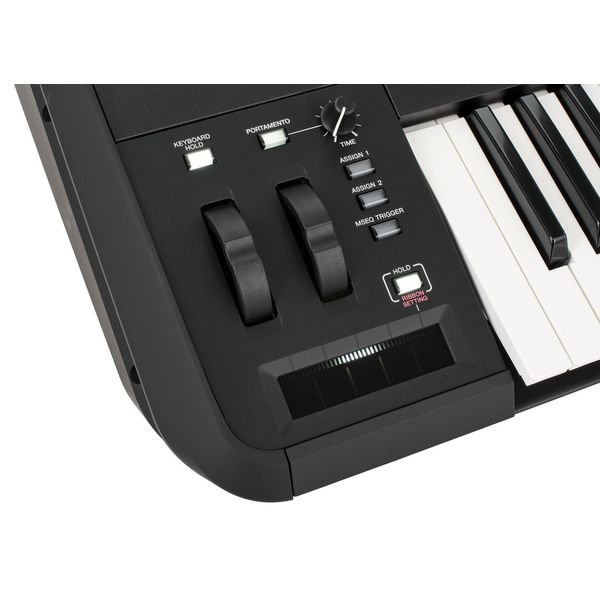

- Ribbon controller
- 8 assignable controls and faders with sub display
- 11.29 GB Waveform ROM
- 3.7 GB Flash ROM
- Sequencer with 16 tracks / 128 patterns / 128 songs
- USB audio/MIDI (also for iOS devices) with 24-bit/44.1 kHz for 6 audio input and 32 output channels or 192 kHz for 6 audio input and 8 output channels

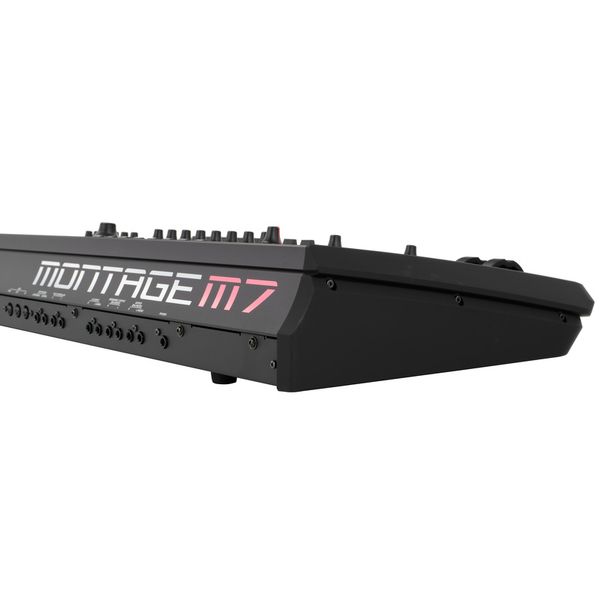

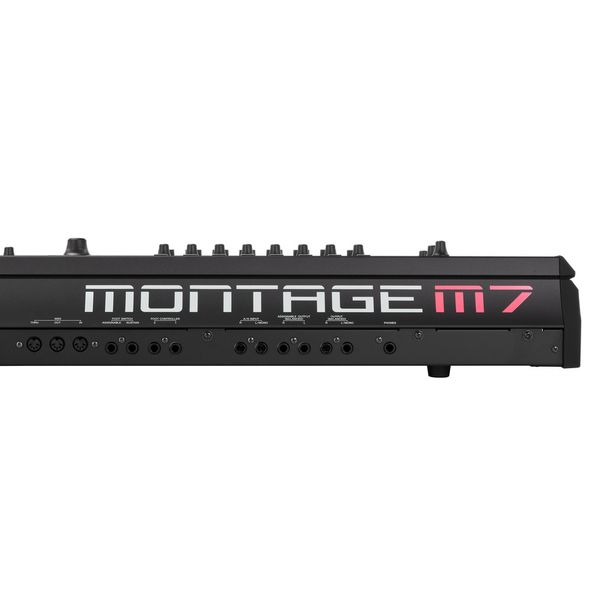

- 4 line outputs (2 x stereo): 6.3 mm jack balanced
- 2 line input: 6.3 mm jack
- Dimensions (W × H × D): 1244 × 131 × 396 mm
- Weight: 17.6 kg
- Includes power supply cable
-
Available since November 2025
-
Item number 629662
-
Sales Unit 1 piece(s)
-
Amount Of Keys 76
-
Touch Sensitive Yes
-
Aftertouch Yes
-
Split Zones Yes
-
Modulation Wheel Yes
-
Number of Voices 400
-
Sound Engine AN-X, AWM2, FM-X
-
MIDI interface 1x In, 1x Out, 1x Thru
-
Storage Medium Internal
-

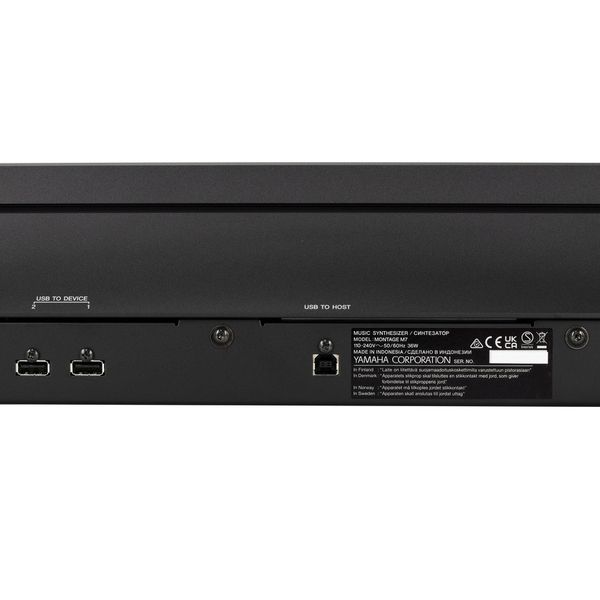

USB-port Yes
-
Effects Yes
-
Arpeggiator Yes
-
Sampler Yes
-
Number of analog outputs 4
-
Digital Output No
-
Pedal Connectors 2x Footswitch, 1x Sustain
-
Optional Expansion Boards No
-
Display Yes
-
Dimensions in mm 1244 x 131 x 396
-
Weight in kg 17,6 kg
-
