IK Multimedia AXE I/O

Start 360°

Please activate your javascript. You’re currently missing out on our lovely designed product gallery and its useful features (zoom into the very last pixel of each picture, 360 view, videos and more). We wouldn’t miss them for the world.

USB 2.0 Audio Interface

An audio interface especially designed for guitarists
2 Inputs for instrument, line and microphone signals
With discrete Class A preamplifiers and switchable 48 V phantom power
Front-panel Hi-Z instrument inputs, including input 1 with Z-Tone (variable impedance)
JFET circuit for subtle harmonic additions and active switching for optimal operation with active pickups
Rear mic / line inputs via XLR / jack combo jacks
1 Front panel amp output for re-amping
4 Rear balanced line outputs on 1/4" TRS jack
1 Stereo headphone jack on 6.3 mm stereo jack with its own control
Monitor and master volume controls
Built-in guitar tuner
Preset knob for controlling plugin parameters
2 Inputs for expression pedals or footswitches for real-time control of virtual guitar effects
AD / DA conversion with 24 bit / 192 kHz
117 dB dynamic range
MIDI in/out
With extensive software package (download) with AmpliTube 4 Deluxe, AmpliTube 5 SE, 10 T-RackS processors and Ableton Live Lite
System requirements: Windows 7 (64 bit), Mac OSX 10.11 (64 bit)
Weight: 1.3 kg
Dimensions: 238 x 211 x 53 mm

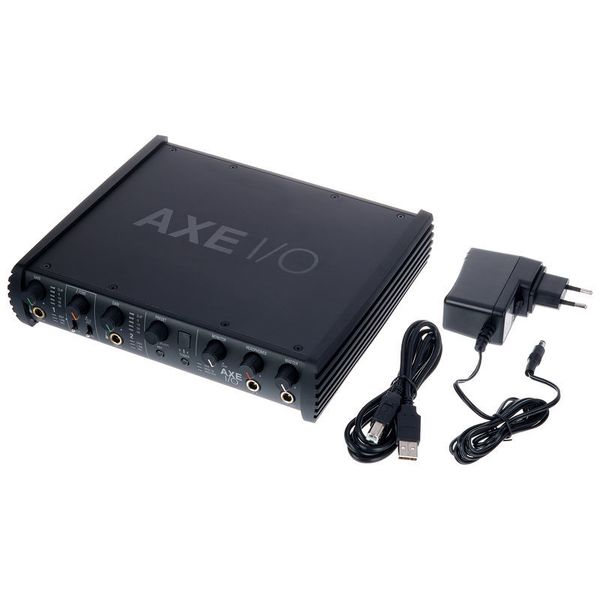

1.5 m USB cable and power supply unit included

30 30-Day Money-Back Guarantee

3 3-Year Thomann Warranty

available since January 2019

Item number 455740

sales unit 1 piece(s)

Recording / Playback Channels 2x5

Number of Mic Inputs 2

Number of Line Inputs 2

Number of Instrument Inputs 2

Number of Line Outs 4

Headphone Outs 1

Phantom power Yes

Number of S/PDIF Connectors 0

Number of ADAT Connectors 0

Numer of AES/EBU Connectors 0

Number of MADI Connectors 0

Ethernet 0

Other Connectors No

MIDI interface Yes

Word Clock No

Max. sample rate (kHz) 192 kHz

Max. resolution in bit 24 bit

USB Bus-Powered No

Incl. power supply Yes

USB Version 2.0

Width in mm 238 mm

Depth in mm 211 mm

Height in mm 53 mm

Connection Format USB port Type B

Included in delivery 1,5 m USB Cable, Power Supply

Zero latency monitoring 1

Show variations of this product

IK Multimedia AXE I/O

IK Multimedia AXE I/O USB 2.0 Audio Interface * An audio interface especially designed for guitarists * 2 Inputs for ins...

1.069 AED 273,11 €

to the product

IK Multimedia AXE I/O One

IK Multimedia AXE I/O One USB 2.0 Audio Interface * Specially designed for guitarists * 24 Bit / 192 kHz converter * Cla...

477 AED 121,85 €

to the product

IK Multimedia AXE I/O+AmpliTube5+Tonex MAX

IK Multimedia AXE I/O + AmpliTube 5 MAX + TONEX USB 2.0 Audio Interface with Guitar Effects Software * Audio interface ...

1.479 AED 377,31 €

to the product

IK Multimedia AXE I/O Solo

IK Multimedia AXE I/O Solo USB2.0 Audio Interface * Specially designed for guitarists * Hi-Z instrument input on the fro...

885 AED 226,05 €

to the product

IK Multimedia iRig Pro Quattro I/O

IK Multimedia iRig Pro Quattro I/O 4 In / 2 Out USB Audio/Midi Interface * Conversion: 24-bit/96 kHz * 4 Ultra-low-noise...

949 AED 242,02 €

to the product

IK Multimedia iRig Pro Quattro I/O Deluxe

IK Multimedia iRig Pro Quattro I/O Deluxe 4 In / 2 Out USB Audio/Midi Interface * Conversion: 24 bit/96 kHz * 4 Ultra lo...

1.415 AED 361,34 €

to the product

IK Multimedia AXE I/O Solo+AmpliTube 5+Tonex

IK Multimedia AXE I/O Solo + AmpliTube 5+Tonex USB 2.0 Audio Interface with Guitar Effects Software * Audio interface sp...

888 AED 226,89 €

to the product

1.069 AED 273,11 €

Plus 275 AED shipping

The price in AED is a guideline price only!

Since we ship from Germany, additional costs through taxes and customs may be incurred

176

Sales Rank

in USB Audio Interfaces

This is what customers who viewed this product bought

IK Multimedia AXE I/O+AmpliTube5+Tonex MAX

1.479 AED 377,31 €

bought

Focusrite Scarlett 2i2 3rd Gen

544 AED 138,66 €

bought

Focusrite Scarlett Solo 3rd Gen

389 AED 100 €

bought

IK Multimedia AXE I/O One

477 AED 121,85 €

54 Customer ratings

5 44 Customers 4 3 Customers 3 4 Customers 2 3 Customers 1 0 Customers

4.6 / 5

handling

features

sound

quality

Review guidelines

38 Reviews

Great USB interface!

TheDodo720 09.09.2019

I use this interface mainly to record guitar DI and to listen through my monitors (Adam T7Vs). Latency is low and stability with Windows 10 is great so far. The main feature is the DI input of the interface. On the front you have 1 input with lots of options such as "pure" and "JFET", "active" and "passive", and "Z-Tone". All of those shape the sound. Add a little harmonic richness, optimize for passive or active pickups or make the sound more round and warm or sharp and clear (like a guitar tone knob).

I stepped up to this from a Scarlett 2i2 1st gen and the difference in DI sound quality is very noticeable. I don't feel like I need an additional DI box at all.

The microphone inputs on the back are also great, used them to record vocals and they do sound good.

The only thing that I wish this interface had is thunderbolt connectivity, but this way the price is lower and you still have good latency and bandwidth.

Not to forget you get a lot of included software, and the mixing plugins are really good, as well as Amplitube 4 deluxe.

I'm certain you'll be satisfied with this purchase for a home recording solution if you're mainly a guitar/bass player.

quality

features

handling

sound

Report

Do you believe this rating to be inaccurate or unacceptable for some reason? Please give us the reason for your assessment in the following text box and – if possible – your e-mail address for further questions.

Works like a charm

The Reaper 11.05.2022

Rating solely on the basis of the interface features and quality as the whole other part of it i.e. the provided software(s) and the product manager are quite a chore to use, if you miss out on a free download and find out about it later, there is even a reactivation charge for it which isn't cool, also the whole experience of downloading software is not very user friendly and it's mostly about buy this and buy that all over it, and I think there is no way to filter out effects and presets one does own and it's all just there only for you to click a preset to find you don't own this pedal or that effect, and that's exasperating. That said, the audio interface looks, feels and sounds great, the latency is minimal and the outputs provide ample clarity, knobs are of good quality and are sufficiently responsive. Happy with it but I'd rather use it with other softwares such as Bias FX or Helix Native instead of the ones provided.

quality

features

handling

sound

Report

Amazing!

JustinF67 11.12.2019

I was looking for an interface for mixing on my laptop while I travel, that would also double up as an input for my guitar. My 2nd gen Focusrite 18i8 wasn't doing it for due to the dreadful Windows 10 driver introducing audible artifacts that were driving me nuts.

The AXE I/O was interesting to me since it was made primarily as an interface for Amplitube which I use every day.

This thing is incredible. First; out of the box, it feels rugged. As soon as I got it, I plugged it in, installed the driver and it just worked. The user controls are intuitive and there's even a switch to get the best tone from active pickups. It works seamlessly with Amplitube as one would expect, but also as an ASIO interface for my DAW's (Cubase, Cakewalk and Mixbus 32C)

I love this thing!

quality

features

handling

sound

Report

Amazing audio interface with great features.

JoshAdamsMusic 28.09.2021

I bought this as an upgrade to my scarlett 2i2 and i'm loving this interface! The built in features for guitar players are so useful and let you completely change your tone on the fly and get pretty much any sound tone you want out of your guitar, the built in tuner is also just super handy. The bundled software is also great (amplitube) and the control panel lets you really setup the interface how you want it. The monitoring options are also great letting you do amp out, headphone out and monitors out while also letting you mix your direct mic signal with your pc signal (a feature i use way more than i thought i would). My only complaint is the interface having 4 inputs but only 2 are useable at the same time. . All in all this is a great interface and im loving using it!

quality

features

handling

sound

Report
