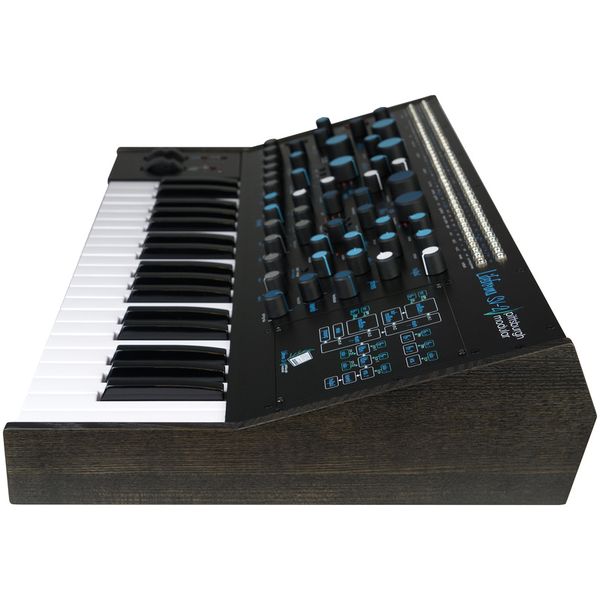

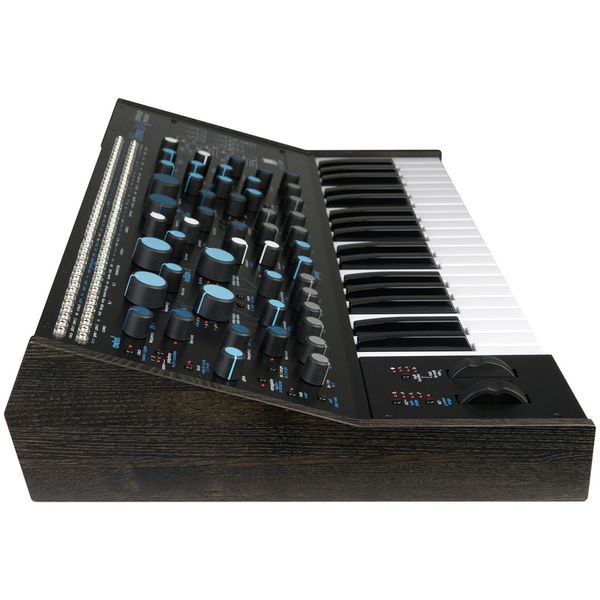

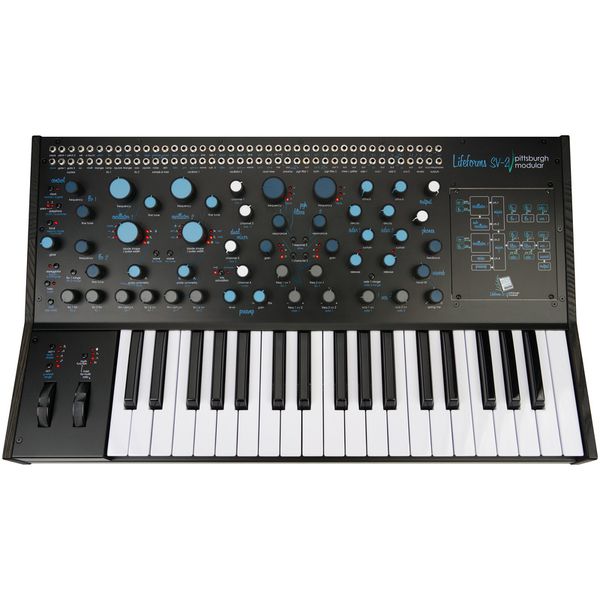

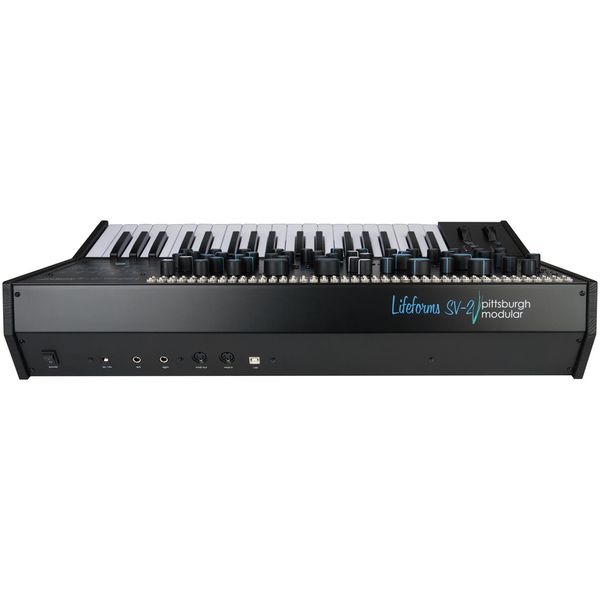

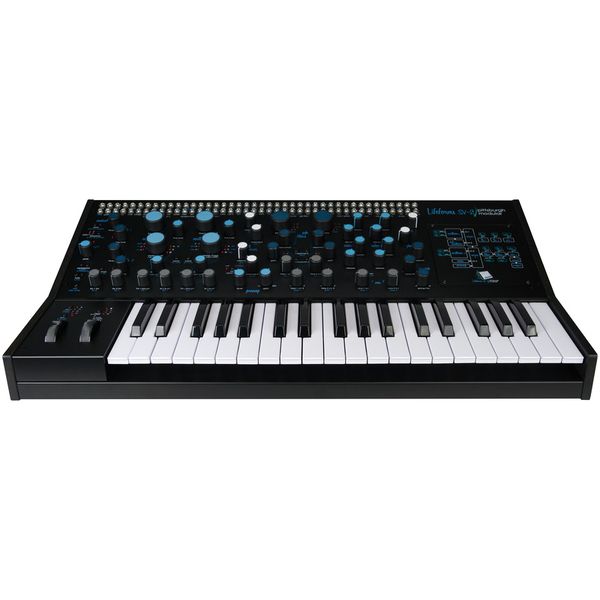

Pittsburgh Modular Lifeforms SV-2
Pittsburgh Modular Lifeforms SV-2; Semi-modular monophonic analog synthesizer; Two Thru-Zero Triangle-Core oscillators; Waveforms: Sine, Triangle, Sawtooth, Blade, Pulse Symmetry and Random; Thru-Zero FM and Phase modulation; Linear FM; Hard Sync; Two voltage-controlled LFOs; Sub-oscillator with -1 and -2 octaves; Analog noise generator; Two Pittsburgh filters with character modes and overdrive; Filter modes: high-pass, band-pass, low-pass, combo, and random; Six saturation and overdrive levels; Two ADSR envelope generators; Two VCAs; Arpeggiator; Sample and hold; Reverb with Tonal Tilt EQ and adjustable feedback loop; Paraphonic and duophonic operation possible; 84-point patch panel; 37-key keyboard; Pitch bend and modulation wheel; Connections: 2x 6.3mm jack line outputs, 3.5mm headphone output, and MIDI In/Out; Includes 10 patch cables and power supply; Dimensions: 630 x 381 x 120 mm; Weight: 8.44 kg
-
Item number 651670
-
Sales Unit 1 piece(s)
-
Number Of Keys 37
-
Touch-Sensitive Yes
-
Aftertouch No
-
Split Zones No
-
Modulation Wheel Yes
-
Number of simultaneous Voices 2
-
Sound Engine Analogue
-
MIDI interface 1x In, 1x Out
-
Storage Medium None
-
USB-port Yes
-
Effects Reverb
-
Arpeggiator Yes
-
Number of Analog Outputs 2
-
Digital Output No
-
Display No
-
Pedal Connections None
