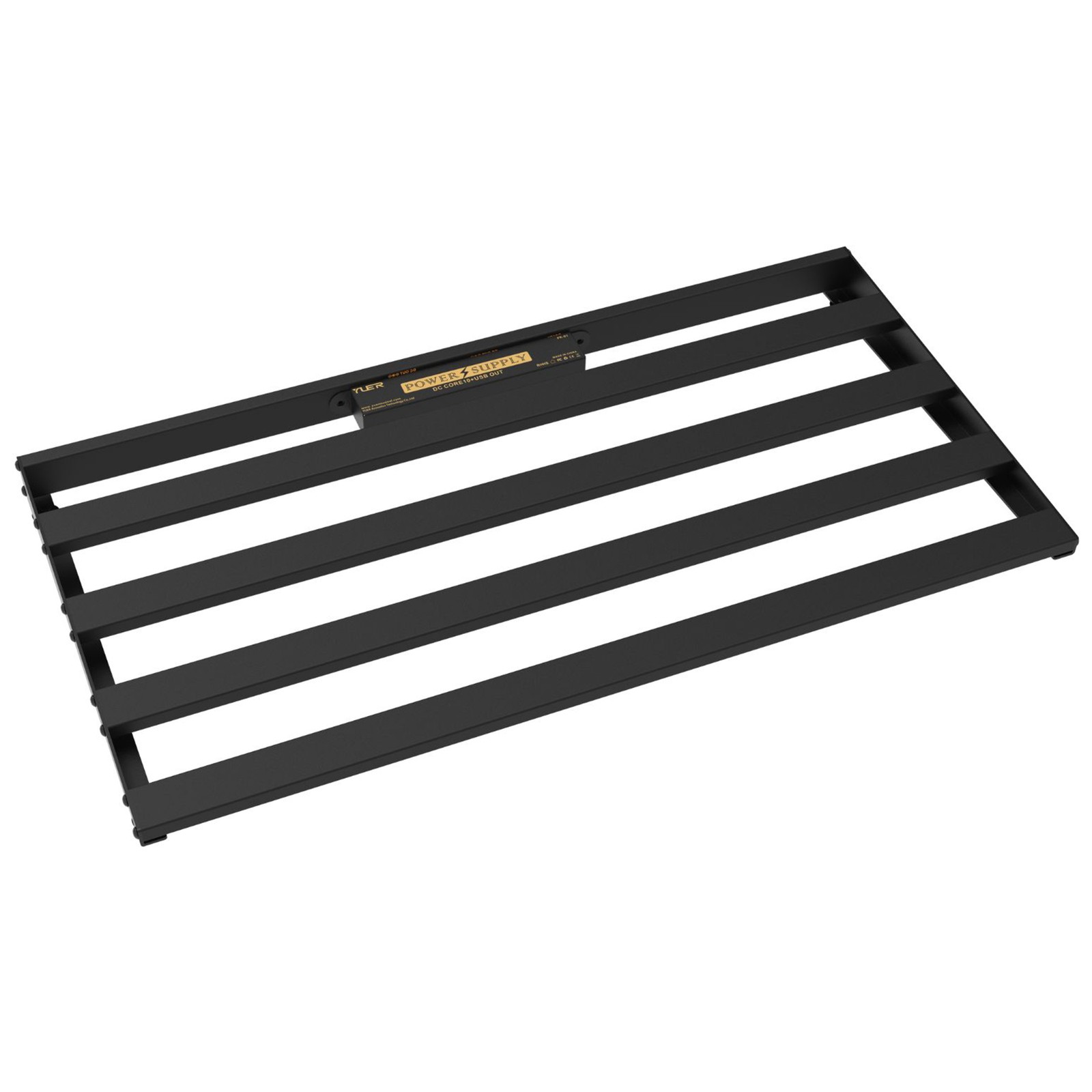

Yuer PR-01L - Large Size Pedalboard

Pedalboard for Effect Units

Built-in power supply
Light and stable aluminium construction
Suitable for approx. 12-14 standard pedals
7x 9 V DC output, each with 200 mA load capacity, 2.1 x 5.5 mm barrel connector, polarity (-) centre negative
1x 12V DC output with 200 mA, 2.1 x 5.5 mm barrel connector, polarity (-) centre negative
1x 18V DC output with 200 mA, 2.1 x 5.5 mm barrel connector, polarity (-) centre negative
1x 5V DC output with 500 mA (USB Type A)
Individual status LEDs for each power connection
Input voltage 18V DC, polarity (+) inside
Dimensions (W x D x H): 600 x 310 x 44 mm
Weight: 1.6 kg
Includes 1x 18V 1200 mA DC power supply unit, 9x DC power cables (to power the effect pedals), carrying bag, self-adhesive hook and loop tape and cable ties

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since April 2025
Item number 614732
Sales Unit 1 piece(s)
Number Of Effects 14
Incl. power supply Yes
Effect Send/Return No
Incl. Gigbag Yes
Including Case No

369 AED 87,39 €

The price in AED is a guideline price only

Since we ship from Germany, additional costs through taxes and customs may be incurred

167

Sales Rank

in Pedalboards

Full-size powered pedalboard

The Yuer PR‑01L is a large pedalboard that'll be comfortable even on the biggest stages – not only does it offer space for up to 14 effect pedals, but also handles their power needs thanks to the integrated power supply. The combination of power unit and board is not a given in this price range, especially since the PR‑01L provides not only the usual 9V outputs but also connections for 12V, 18V, and even USB power. This makes it possible to run more power‑hungry or unconventional devices reliably without an extra adapter. Despite all this, the sturdy aluminium construction weighs just 1.6kg, making it easy to transport. The package includes the mains power adapter, a full complement of DC cables for the pedals, self‑adhesive hook‑and‑loop tape to attach the pedals to the board, cable ties to keep everything tidy, and a practical carrying case to transport it all. Guitarists looking to get their entire effects setup in order thus get a comprehensive, fuss‑free package.

Set up, plug in, rock out

The Yuer PR‑01L combines the function of a large effects board with a multi‑output power supply, making it significantly easier to set up even complex pedal rigs. Up to 14 pedals fit onto its 60×31cm surface and can be securely fixed in place using the included hook‑and‑loop tape. The integrated power supply has seven 9V outputs with 200mA each, along with additional connections for 12V, 18V, and even 5V via USB – a practical addition for mini lamps, wireless receivers, or a smartphone/tablet. Every output is equipped with its own LED, which lights up in the event of a short circuit or overload – a useful detail for tracking down faults. The PR‑01L is powered by an external 18V adapter, which of course is also included in the package. As a power hub and a solid foundation for clean signal management, the board will perform well in large and small setups alike.

Yuer PR-01L - Large Size Pedalboard, Detail

Perfect for pedalboard performers

The Yuer PR‑01L is perfect for guitarists and bassists who want a tidy setup and an integrated power supply for their pedal collection – without immediately having to pay pro‑level prices. Certainly, anyone wanting to use multiple effect pedals and avoid dealing with a separate power unit will find a practical solution here. Ideal for permanent home‑recording environments or even smaller professional live setups, the board is space‑saving and comprehensive package with well‑thought‑out accessories. Thanks to the different output voltages, on-stage necessities like reverbs and preamps will also get what they need. The lightweight, sturdy construction also make the PR‑01L a dependable companion for moving between rehearsal spaces, recording studios, and live performances.

About Yuer

Yuer is one of the brands that make up W-Music Distribution, which is based in Neukirchen, in the German state of Saxony: The parent concern was initially a manufacturer of premium basses, but it now offers an extensive range of musical equipment for recording projects and live performances, all of which deliver excellent quality at affordable prices. Yuer has years of experience in developing its own range of products, with numerous technical innovations. The portfolio includes audio interfaces, rechargeable power supplies, effect pedals, and wireless systems, as well as portable guitar and bass amplifiers which also allow external playback via Bluetooth. The company places great value on its products' self-explanatory operation and compliance with European safety standards.

One for all

Whether it's used in the home studio, a shared rehearsal space, or on stages big and small, the Yuer PR‑01L makes sense wherever a compact, functional pedalboard with its own power supply is needed. Combined with compact mini-pedals, it's easy to assemble complete effects chains for guitar or bass – including overdrive, delay, reverb, and modulation effects - while the different voltages also allow boosters or preamps running at 12V or 18V to be powered. Anyone wanting to integrate a wireless system or a USB‑powered device such as a MIDI controller into their setup will in turn appreciate the 5V USB output. The Yuer PR‑01L is also particularly practical for users who move between several locations and prefer a transport‑friendly setup with only a few separate parts. Thanks to the included carrying case, hook‑and‑loop strips, and cable ties, the board is quick to load in and just as quick to load out again.
