EV BSYS-EVID-4.2TB

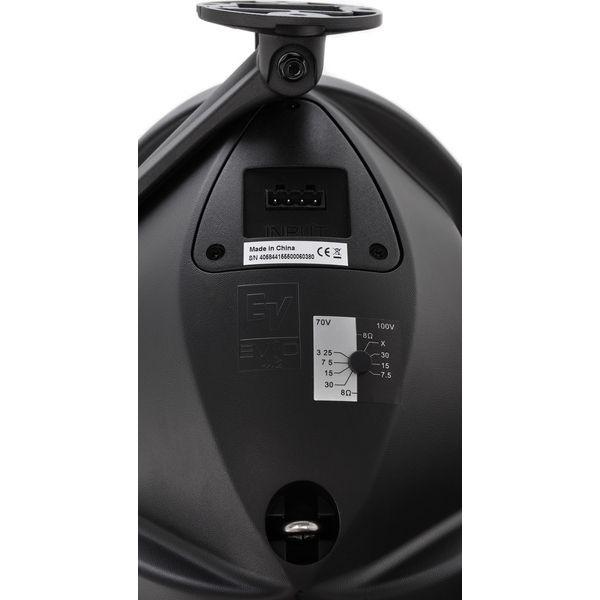

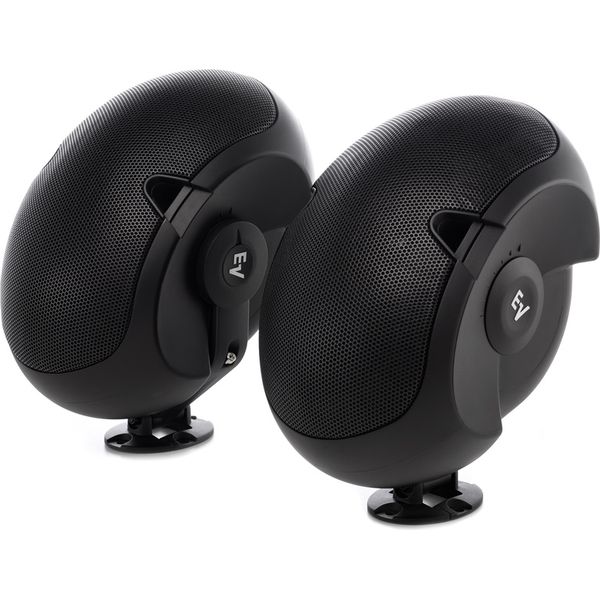

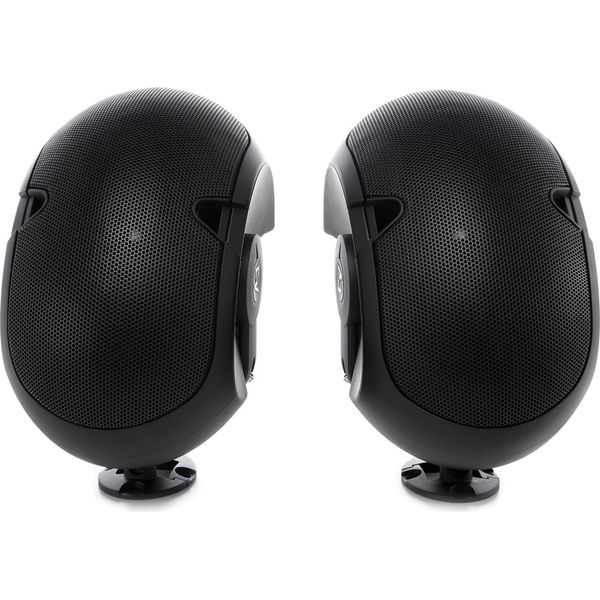

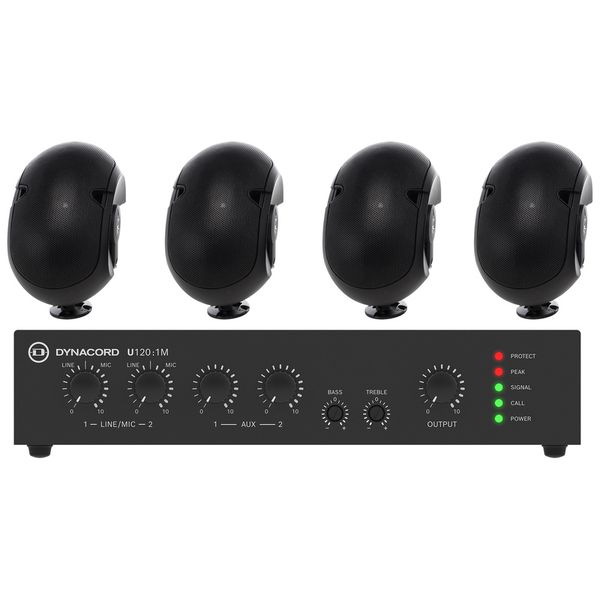

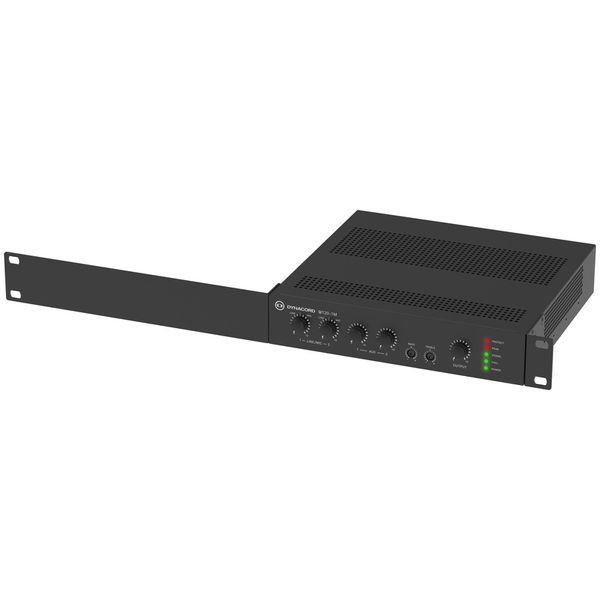

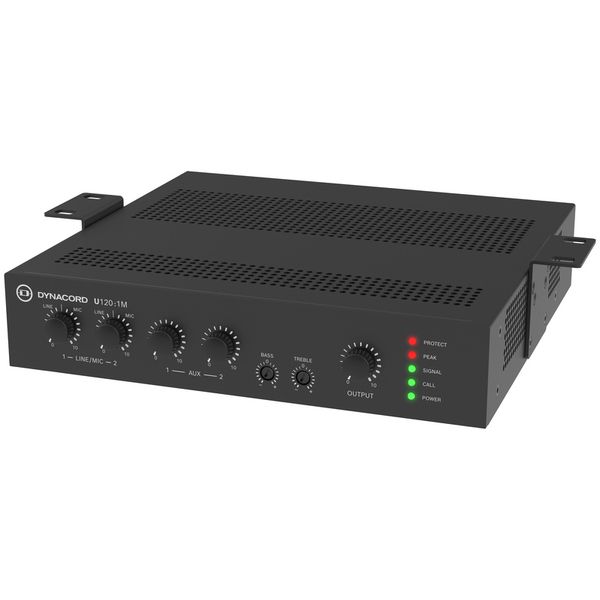

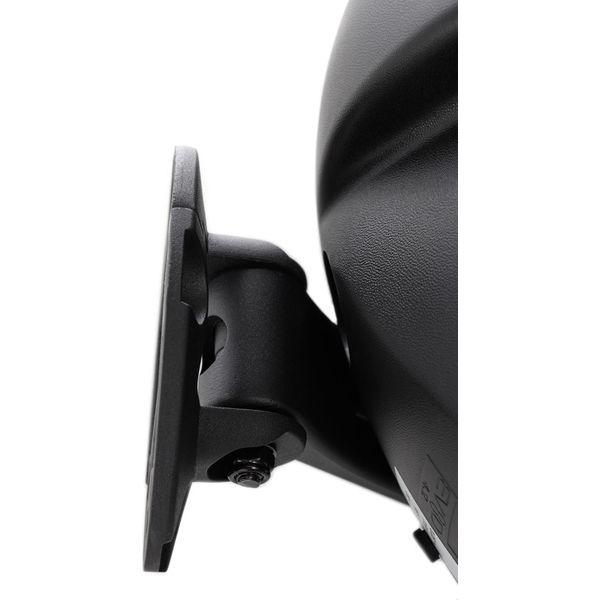

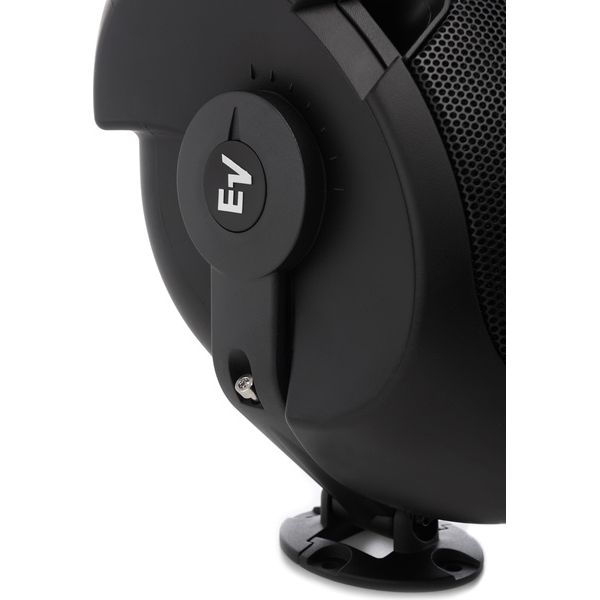

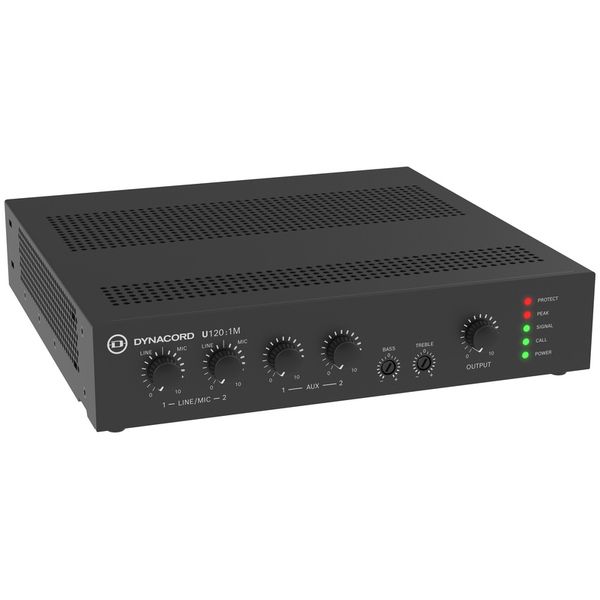

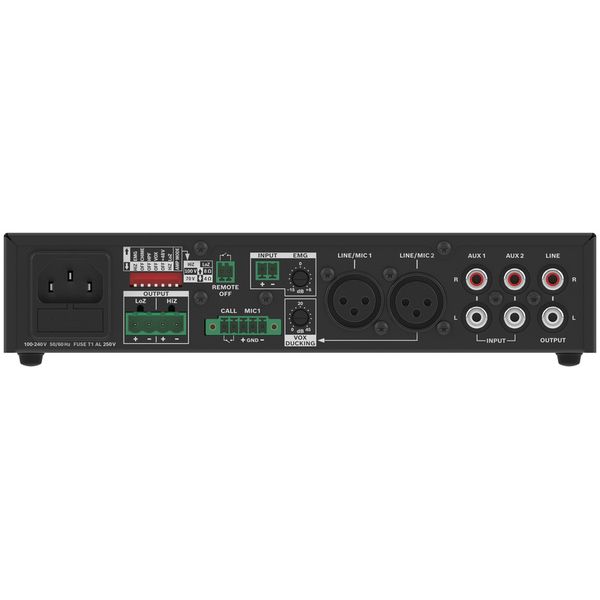

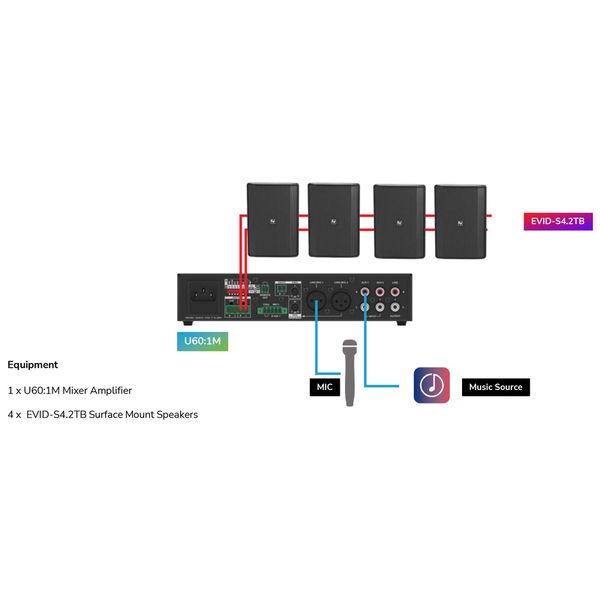

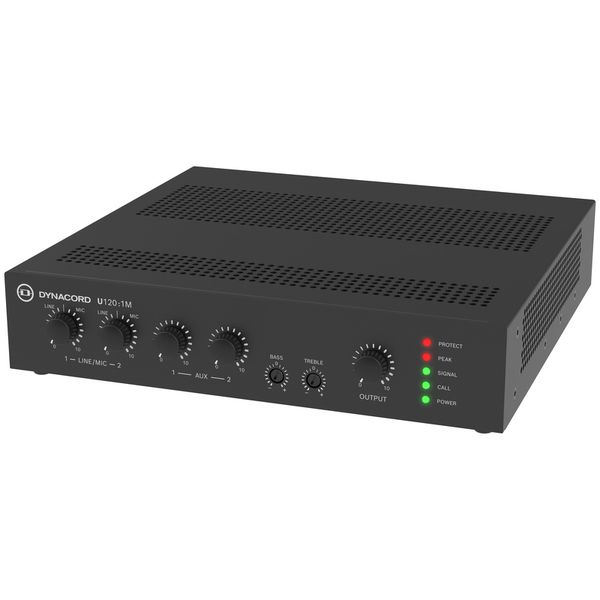

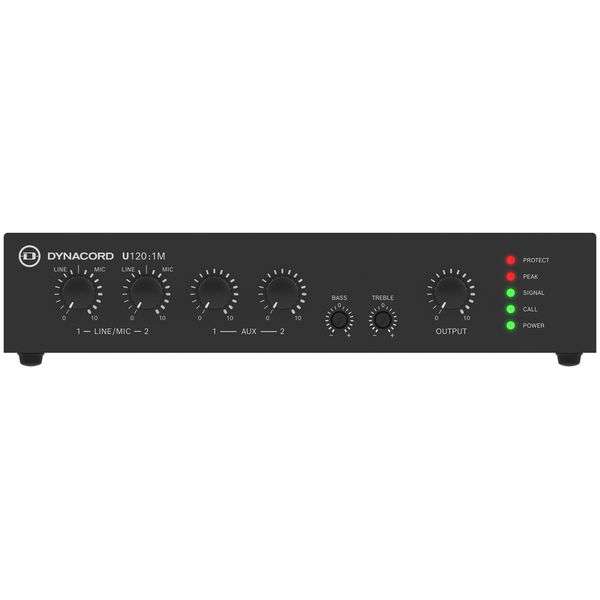

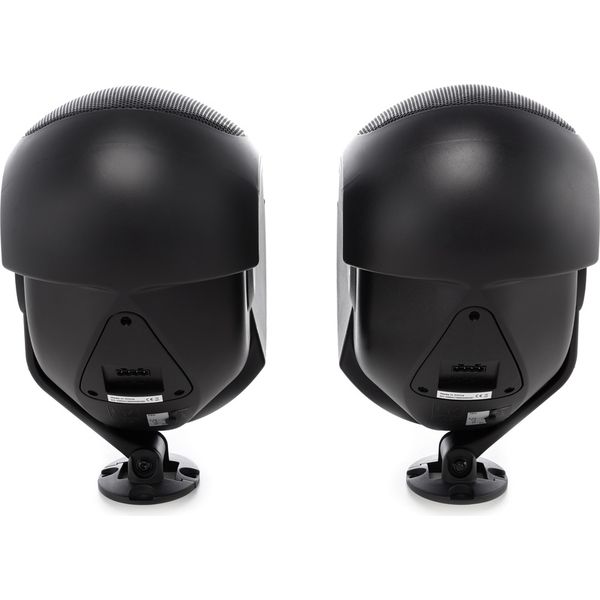

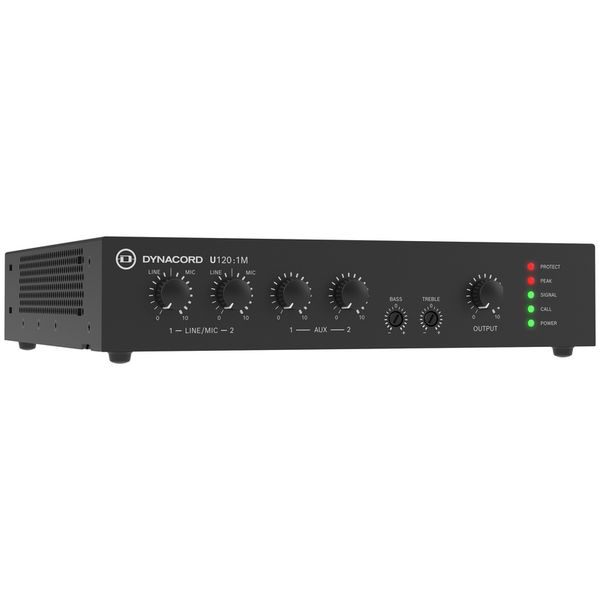

EV BSYS-EVID-4.2TB; flexible surface-mount solution for versatile installations; designed for applications where ceiling mounting is not possible; efficient and flexible system deployment through a combination of compact surface-mount speakers and a mixer-amplifier; ideal for restaurants, bars, retail spaces, and retrofit projects; flexible wall mounting; compact design with an attractive appearance; optimized ratio of performance to coverage area; Set comprising: 1x Dynacord U60:1M EU amplifier mixer and 4x Electro-Voice EVID-4.2TB surface-mounted loudspeakers; Dynacord U60:1M: 1-channel mixing amplifier; output power: 60 W; amplifier technology: Class D; inputs: 2 x balanced Mic/Line XLR, 2 x AUX RCA stereo to mono, 1 x EMG priority input; Phantom power: 48 V switchable for both mic inputs; Speaker outputs: 4 ohms, 8 ohms, 70 V, 100 V; Frequency response (input to output): 70 Hz – 18 kHz; Frequency response (EMG to output): 80 Hz – 15 kHz; Frequency response from input to line output: <10 Hz – 60 kHz; Total harmonic distortion: <0.5% at rated power and 1 kHz; Signal-to-noise ratio: >100 dB; Equalisation: Bass ±12 dB at 100 Hz, treble ±12 dB at 10 kHz; Filters: Fixed low-cut at 70 Hz, switchable high-pass at 120 Hz; VOX ducking: 0 dB – 45 dB; Priority functions: EMG input, contact control for intercom unit with 2-tone chime; Remote power: On/Off via potential-free contact; Protection circuits: Audio limiter, overtemperature, DC, HF, short-circuit and overcurrent protection, mains voltage and inrush current protection; Status indicators: Protect, Peak, Signal, Call, Power; DIP switches; Connections: 3-pin XLR, 5-pin Euroblock, 2-pin Euroblock, 4-pin Euroblock, RCA; Mounting: Stand-alone, 19-inch rack, side-by-side rack mounting, 9.5-inch half-rack, table-top mounting, under-table mounting; Dimensions (WxDxH): 442 x 218 x 45 mm; Weight: 2.53 kg; Colour: Black; Includes single rack adapter, double rack adapter and under-table bracket; Electro-Voice EV Evid 4.2 T – Wall-mounted loudspeaker; Driver configuration: 2 x 4" woofers, 1" tweeter; Frequency response: 65 Hz – 20,000 Hz; Power handling: 200 W; Sensitivity: 90 dB SPL at 1 W/1 m; Max. peak sound pressure level: 111 dB SPL; Impedance: 8 ohms; Dispersion angle: 100° x 90°; Coherent Coverage Waveguide; Line array dispersion control; Passive limiter for LF and HF; Weather-resistant; Protection rating: IP34; Connections: 4-pin Phoenix screw terminal, detachable; 70 V taps: 3.25 W; 70 V/100 V taps: 7.5 W, 15 W, 30 W, 8 ohm bypass; Material: ABS plastic, powder-coated steel grille; Dimensions (WxDxH): 175 x 216 x 310 mm; Weight: 3.9 kg; Colour: Black; Contents: 2 x loudspeakers, 1 x SAM wall bracket, 1 x Allen key
