EV BSYS-EVID-EC4.2W

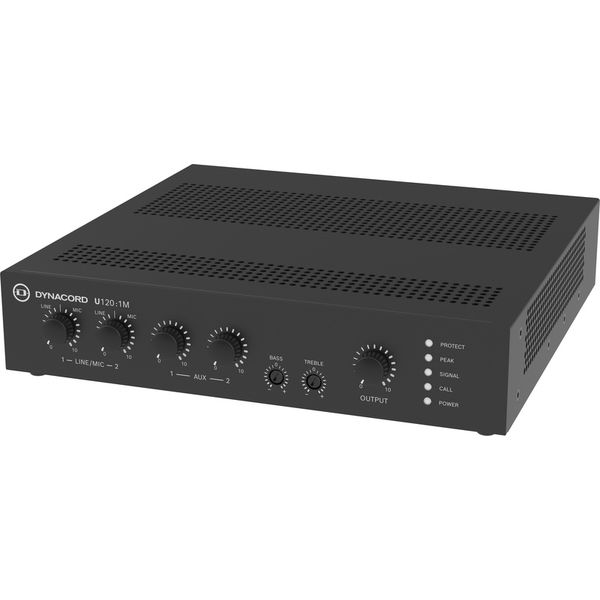

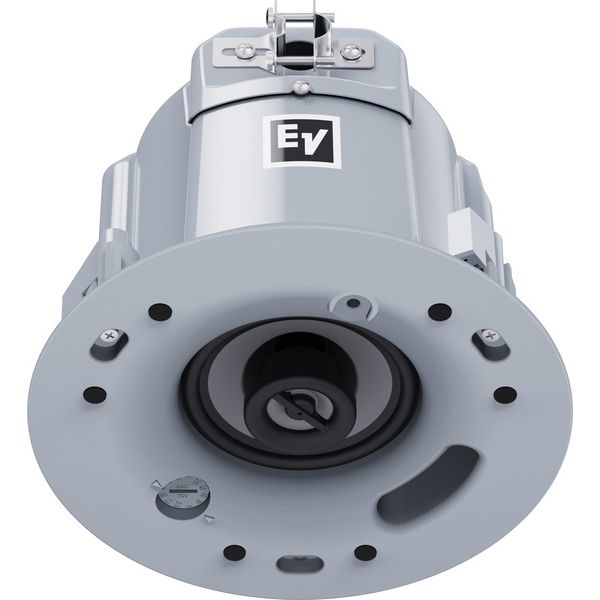

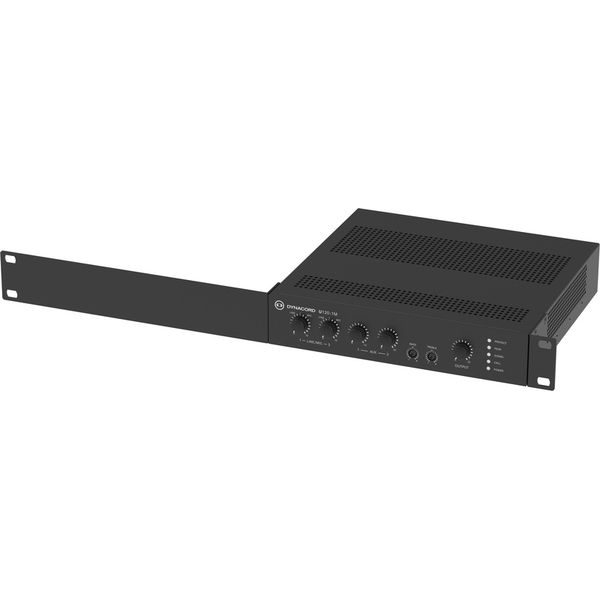

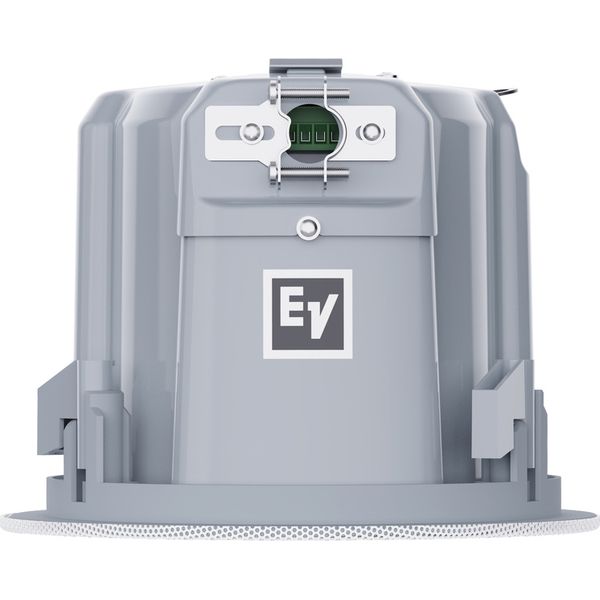

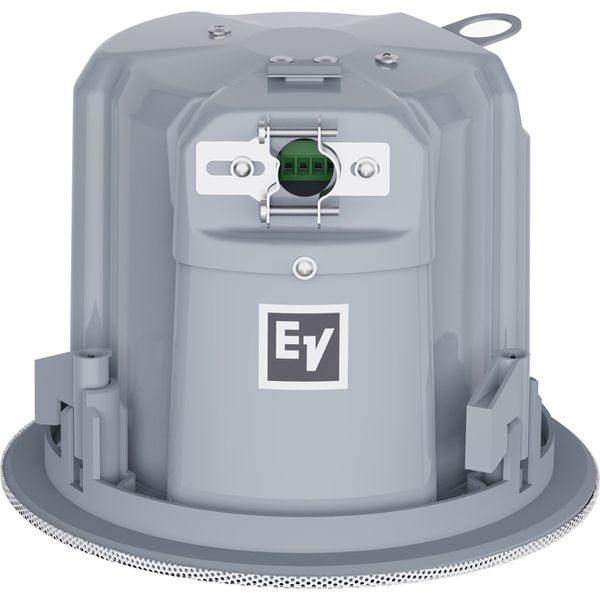

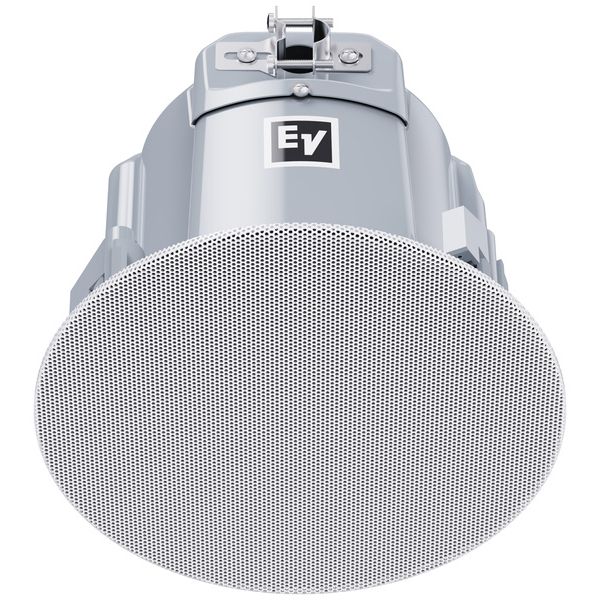

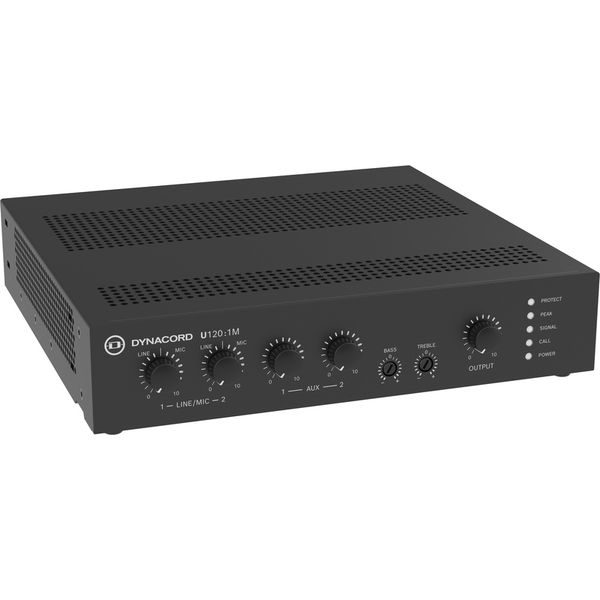

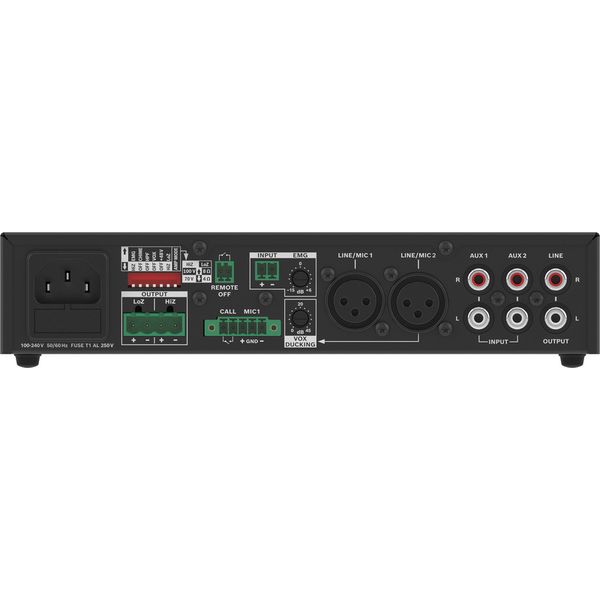

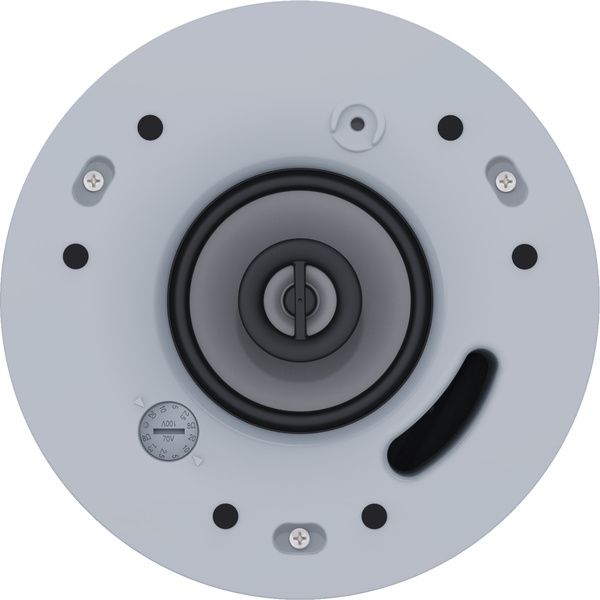

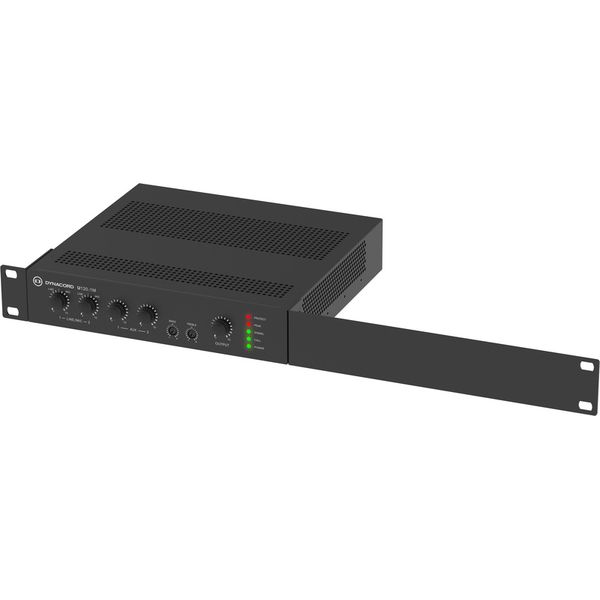

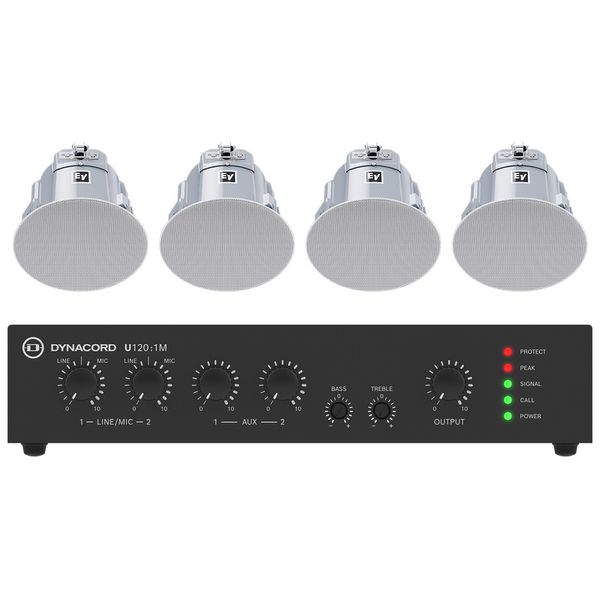

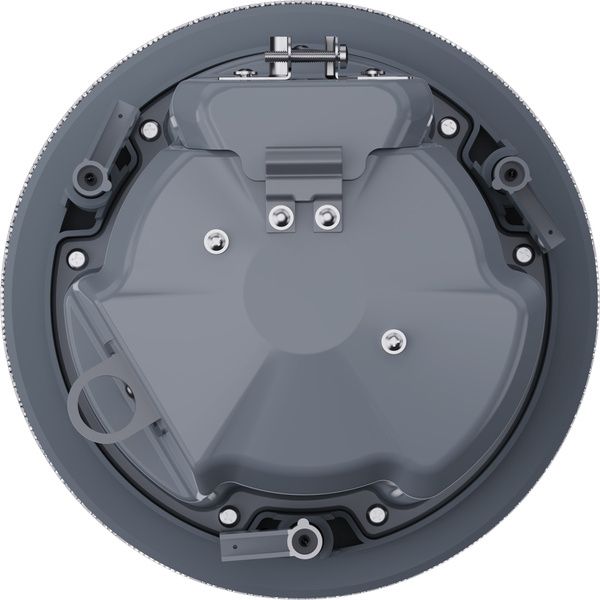

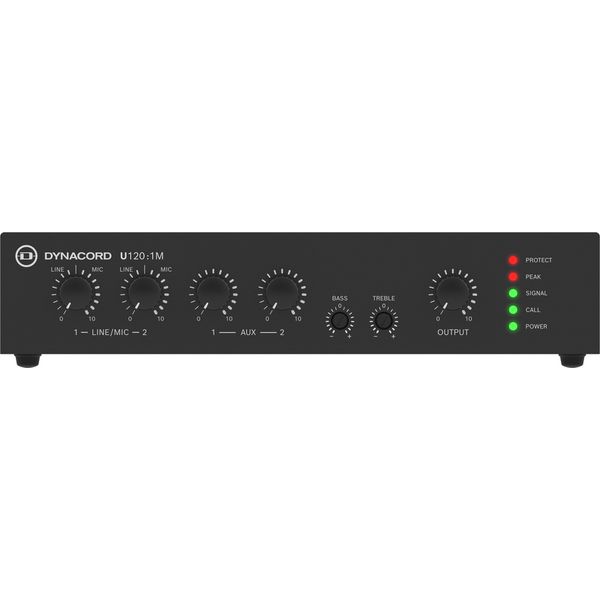

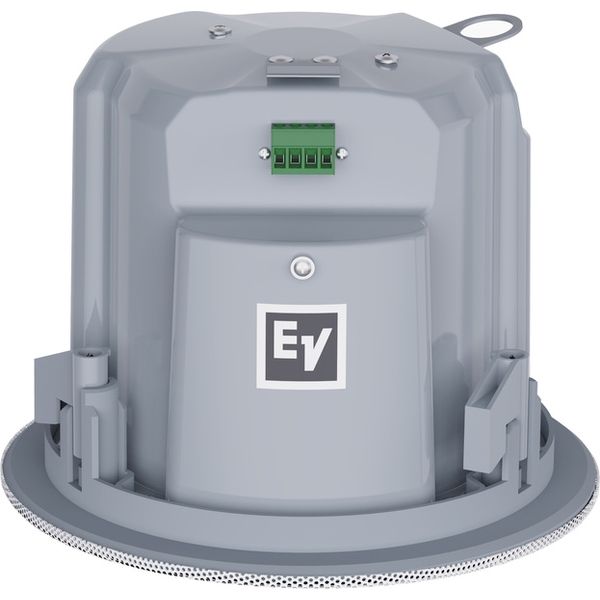

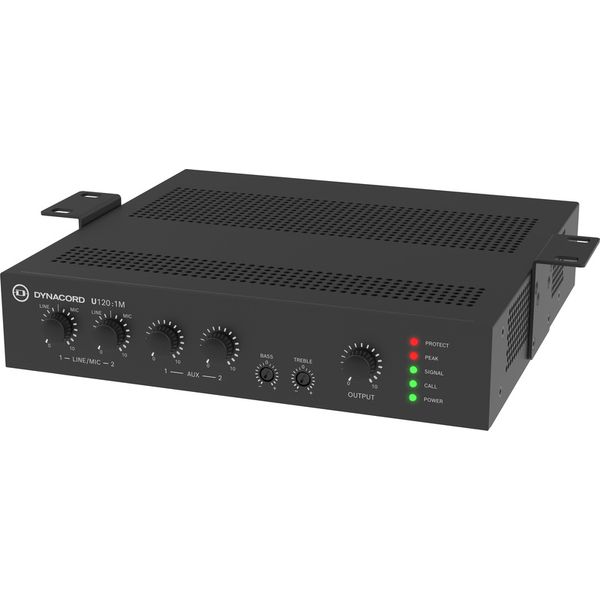

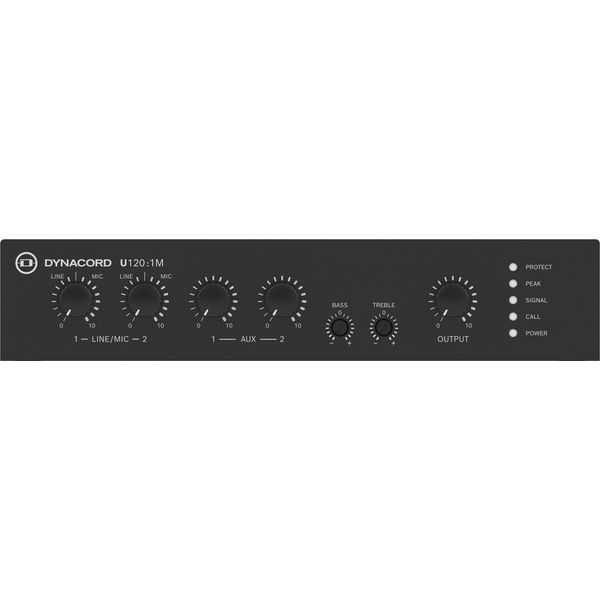

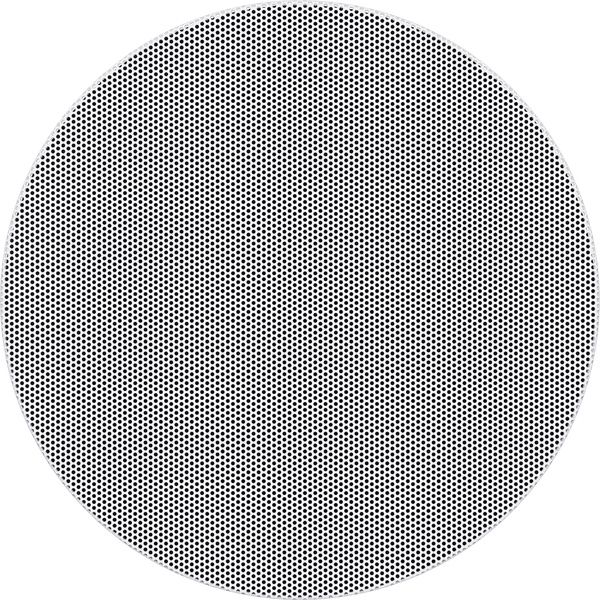

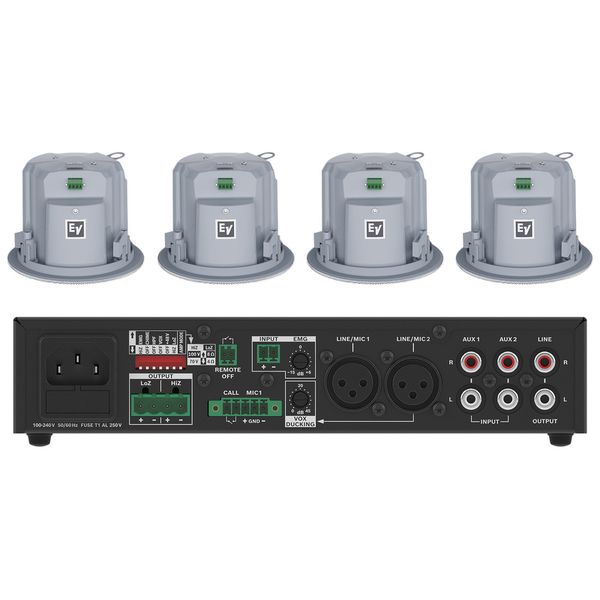

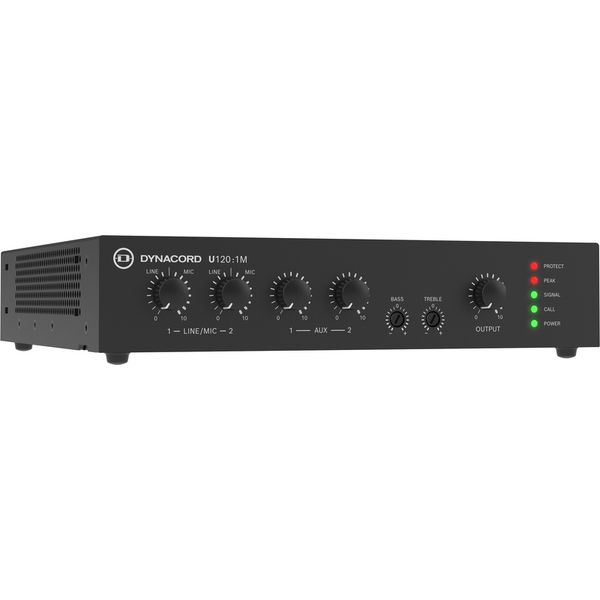

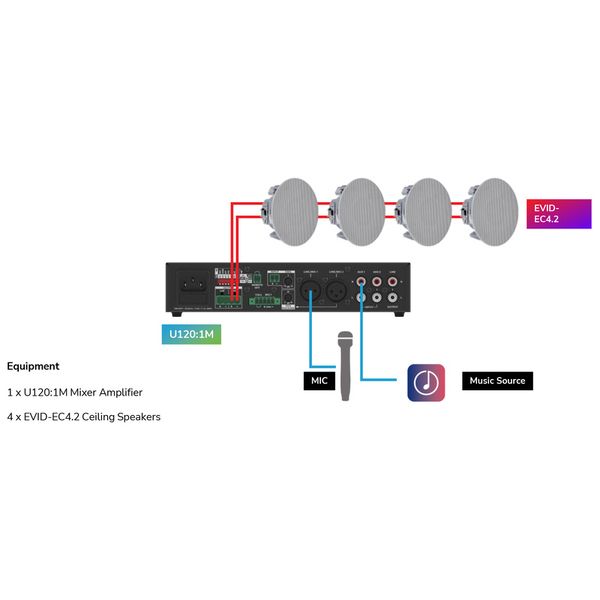

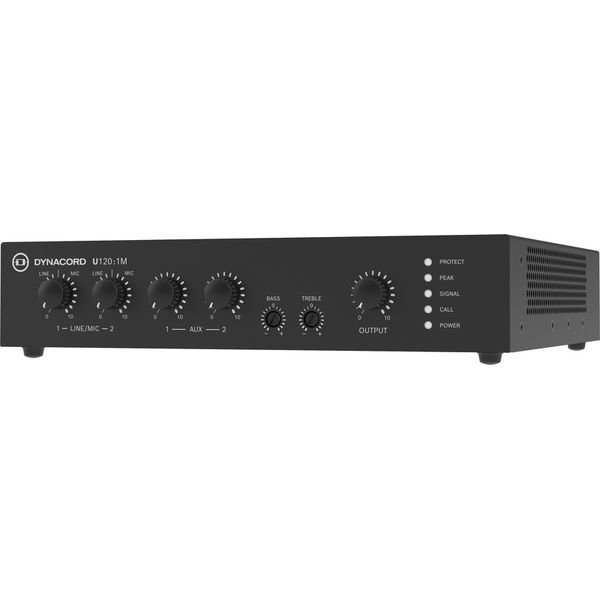

EV BSYS-EVID-EC4.2W; ceiling audio system for everyday applications; cost-effective solution for background music; designed for quick installation in smaller commercial spaces; pre-configured system combining a mixer-amplifier and ceiling speakers for uniform sound coverage and easy mounting; ideal for retail stores, cafés, offices, and small hospitality venues; seamless architectural integration; set includes 1x Dynacord U120:1M EU mixer-amplifier and 4x Electro-Voice EVID-C6.2 G2 ceiling speakers; Set comprising 1 × Dynacord U120:1M EU amplifier-mixer, 4 × Electro-Voice EVID-EC4.2 ceiling speakers; Electro-Voice EVID-EC4.2: recessed ceiling loudspeaker; 2-way coaxial system; driver configuration: 4‘ woofer, 0.75’ tweeter; 70 V and 100 V operation; 70 V power taps: 1.25 W, 2.5 W, 5 W, 10 W, 20 W; 100 V power taps: 2.5 W, 5 W, 10 W, 20 W; low-impedance operation; Nominal impedance: 8 ohms; Frequency response: 80 Hz – 20,000 Hz; Maximum sound pressure level: 106 dB SPL, 112 dB SPL (peak); Sensitivity: 89 dB SPL; Dispersion angle: 130°; Power handling: 50 W, 200 W (peak); Continuous power handling: 40 W, 160 W (peak); Recommended high-pass filter: 90 Hz; 4-pole Euroblock input with loop-through output; front-panel power tap selector; Protection rating: IP34; Certifications: UL 1480A, UL 2043, CSA C22.2 No. 205, IEC 62368-1; Ceiling cut-out: 183 mm; Installation depth: 158 mm; Ceiling thickness: 12.5 mm – 38 mm; Material: steel, powder-coated steel grille; Dimensions (Ø x D): 212 x 164 mm; Weight: 2.6 kg; Colour: White; Contents: connection covers, magnetic grilles, ceiling rails, C-rings, screws, cut-out template, paint protection covers, quick installation guide; Dynacord U120:1M EU amplifier mixer: 1-channel mixing amplifier; Output power: 120 W; Amplifier technology: Class D; Inputs: 2 x balanced Mic/Line XLR, 2 x AUX RCA stereo to mono, 1 x EMG priority input; Phantom power: 48 V switchable for both mic inputs; Speaker outputs: 4 ohms, 8 ohms, 70 V, 100 V; Frequency response (input to output): 10 Hz – 22 kHz; Frequency response (input to line output): <10 Hz – 65 kHz; Total harmonic distortion: <0.5% at rated power and 1 kHz; Signal-to-noise ratio: >100 dB; Equalisation: bass ±12 dB at 100 Hz, treble ±12 dB at 10 kHz; Filters: fixed low-cut at 20 Hz, switchable high-pass at 120 Hz; VOX ducking: 0 dB – 45 dB; Priority functions: EMG input, contact control for intercom unit with 2-tone chime; Remote power: On/Off via potential-free contact; Protection circuits: Audio limiter, overtemperature, DC, RF, short-circuit and overcurrent protection, mains voltage and inrush current protection; Status indicators: Protect, Peak, Signal, Call, Power; DIP switches; Connections: 3-pin XLR, 5-pin Euroblock, 2-pin Euroblock, 4-pin Euroblock, RCA; Mounting: Stand-alone, 19-inch rack, side-by-side rack mounting, 9.5-inch half-rack, table-top mounting, under-table mounting; Dimensions (WxDxH): 442 x 218 x 45 mm; Weight: 1.86 kg; Colour: Black; includes single rack adapter, double rack adapter and under-desk mount
