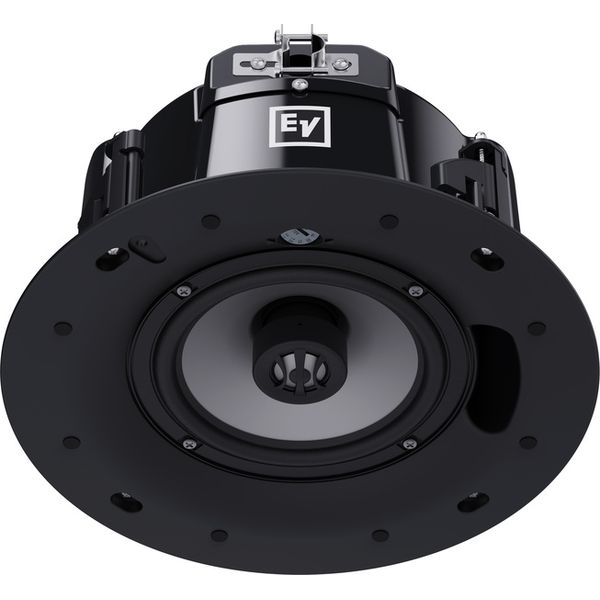

EV BSYS-EVID-C6.2-G2W

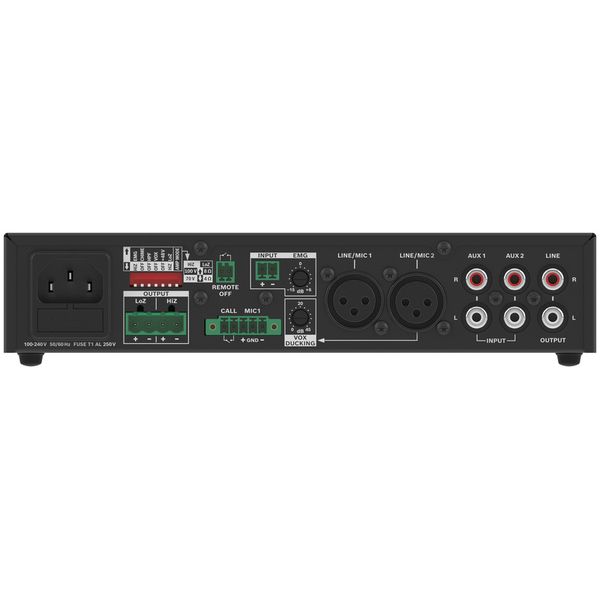

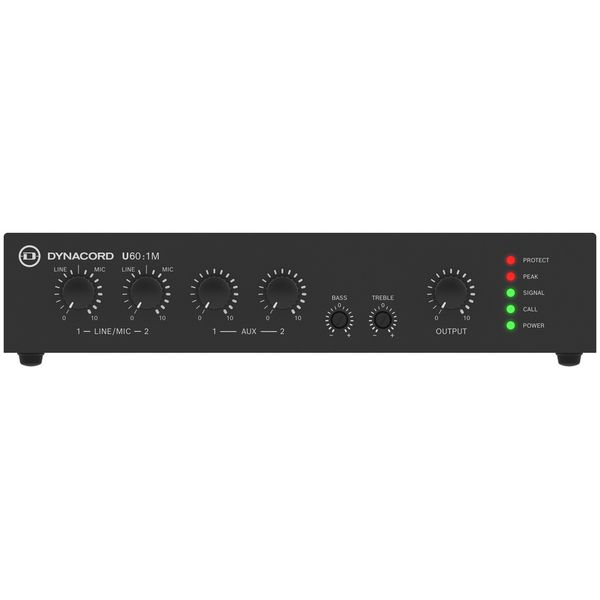

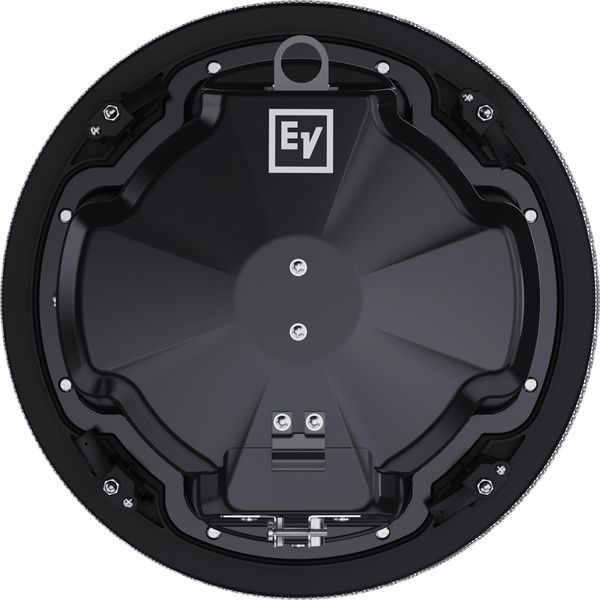

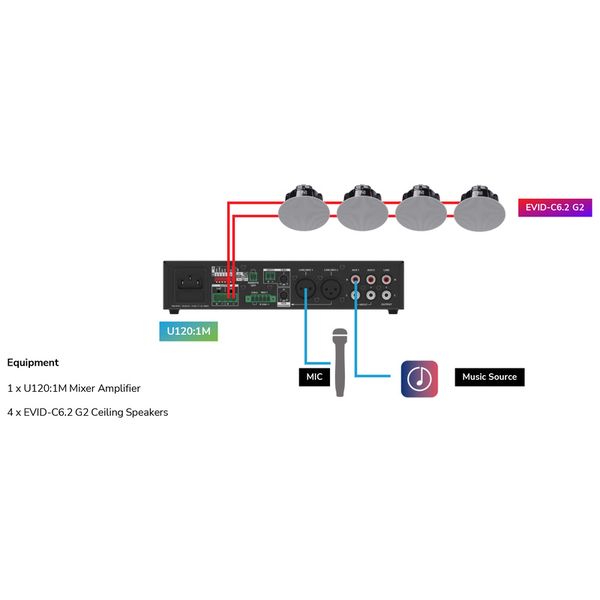

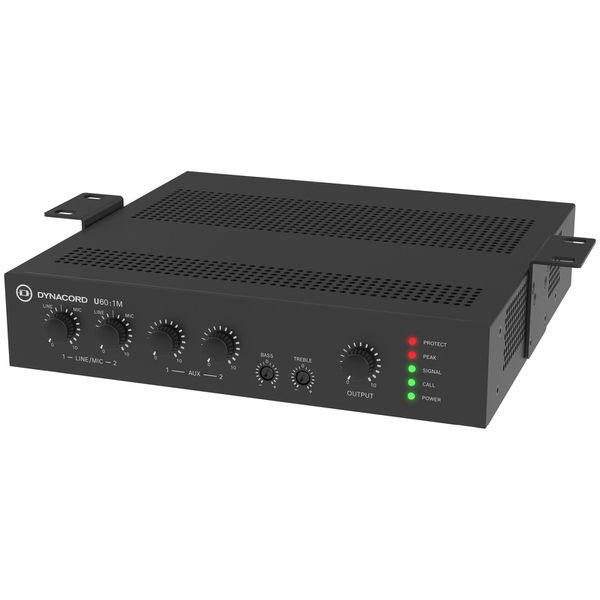

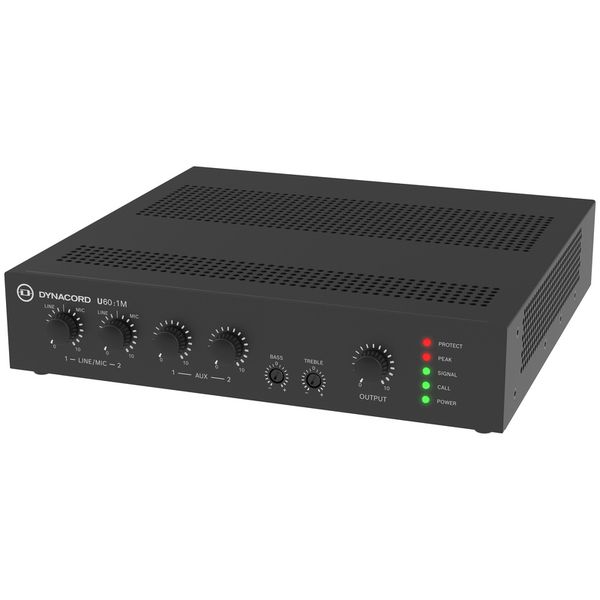

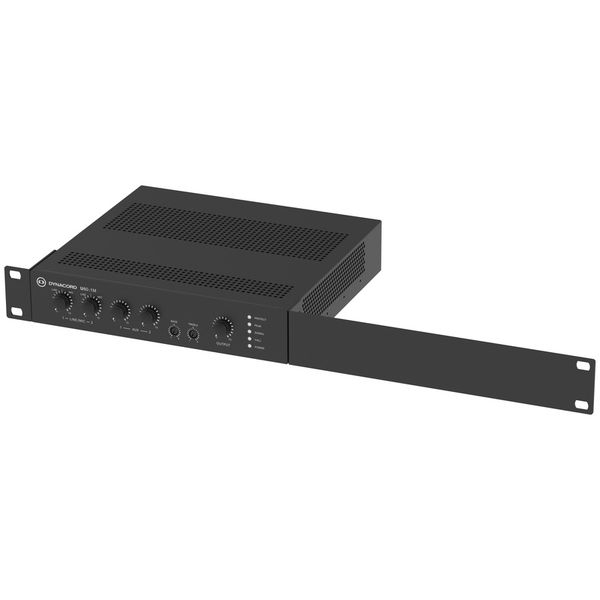

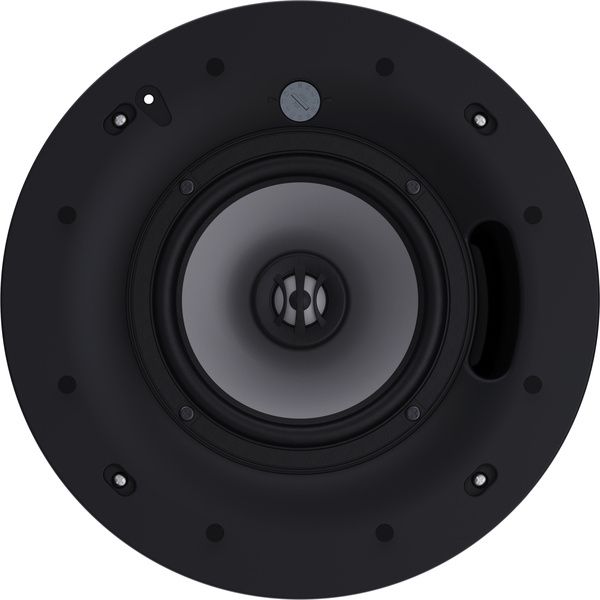

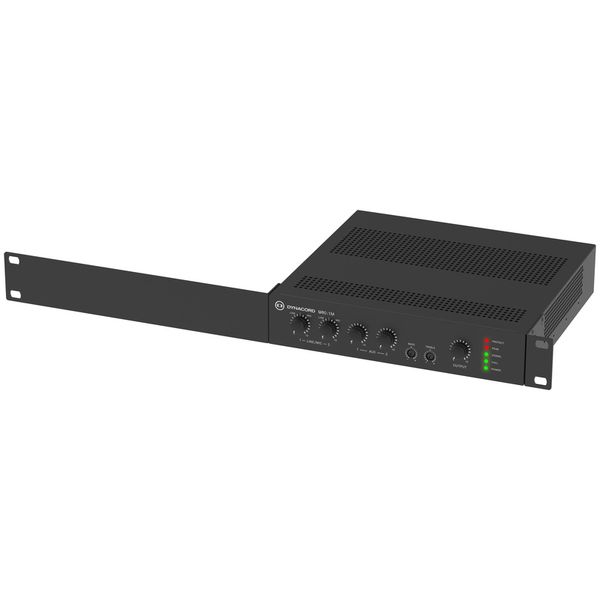

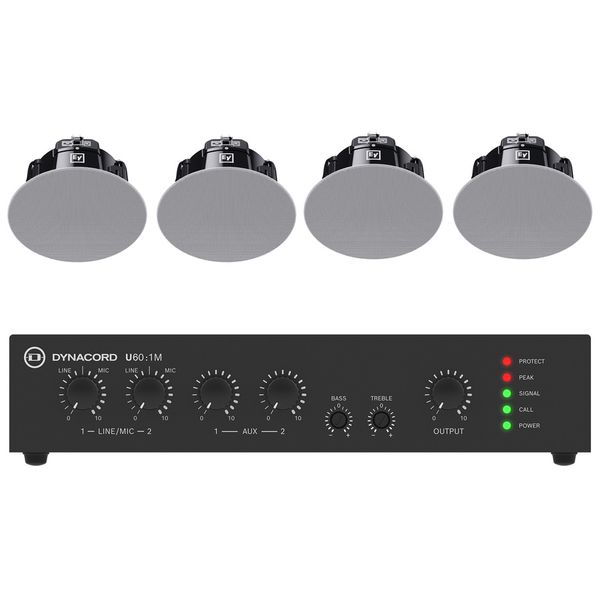

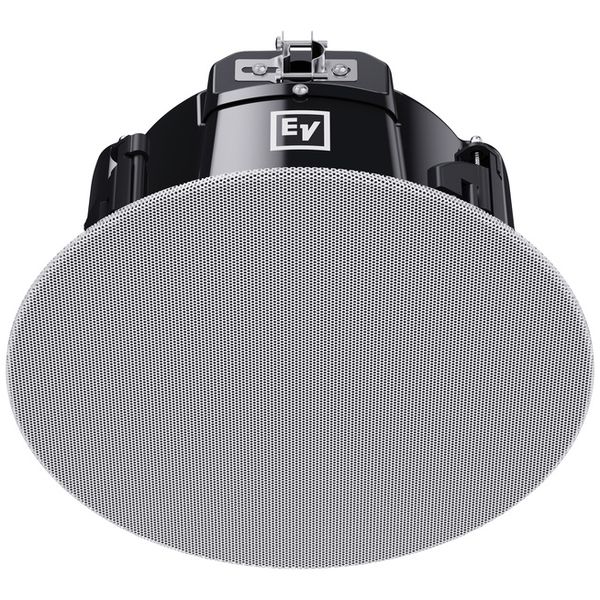

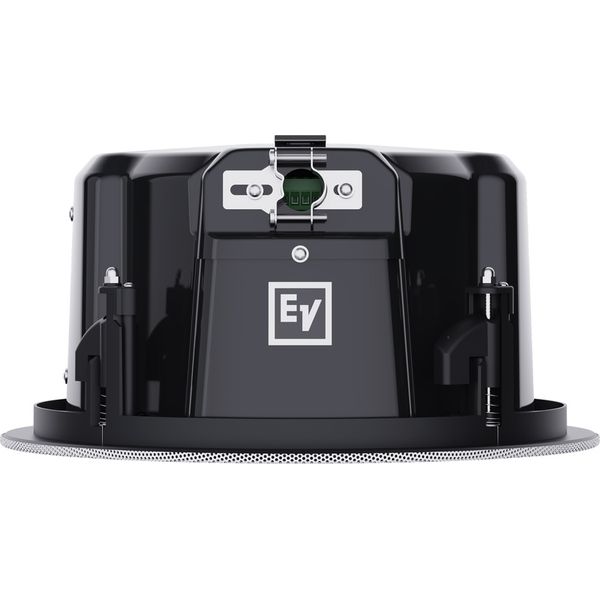

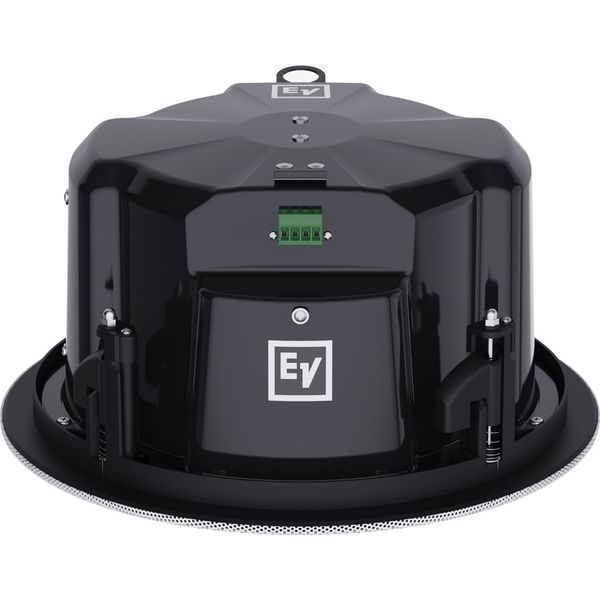

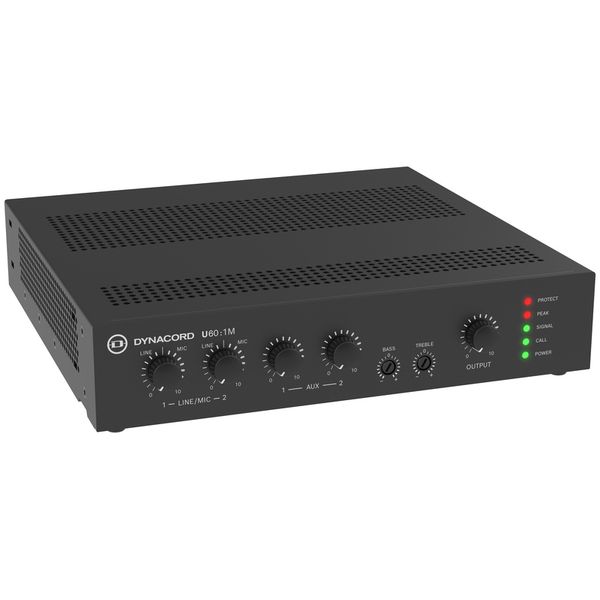

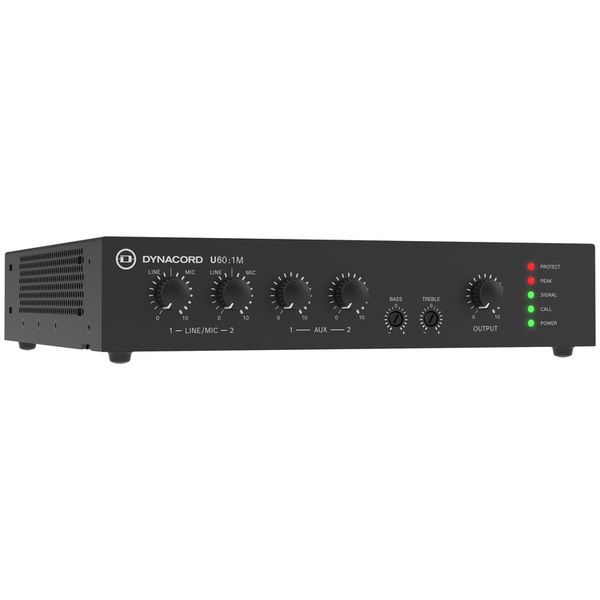

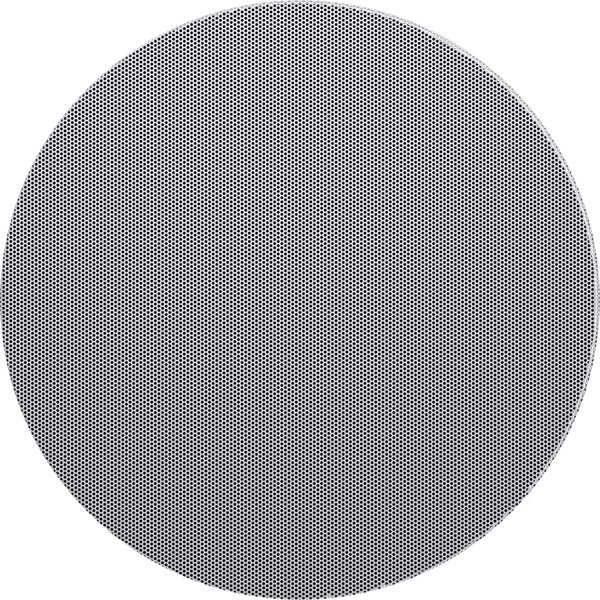

EV BSYS-EVID-C6.2-G2W; optimized ceiling audio for demanding applications; high-performance ceiling audio system featuring flush-mount ceiling speakers and a mixer-amplifier; designed for environments requiring superior sound quality, higher output, and wider coverage; ideal for restaurants, bars, retail spaces, and retrofit projects; offers higher output and improved audio performance compared to the EV BSYS-EVID-EC4.2W system; provides wide, uniform coverage for larger spaces; ensures seamless architectural integration; Set comprising: 1x Dynacord U120:1M EU amplifier mixer and 4x Electro-Voice EVID-C6.2-G2W surface-mounted loudspeakers; Dynacord U120:1M: 1-channel mixing amplifier; output power: 120 W; amplifier technology: Class D; inputs: 2 x balanced Mic/Line XLR, 2 x AUX RCA stereo to mono, 1 x EMG priority input; Phantom power: 48 V switchable for both mic inputs; Speaker outputs: 4 ohms, 8 ohms, 70 V, 100 V; Frequency response (input to output): 10 Hz – 22 kHz; Frequency response (input to line output): <10 Hz – 65 kHz; Total harmonic distortion: <0.5% at rated power and 1 kHz; Signal-to-noise ratio: >100 dB; Equalisation: Bass ±12 dB at 100 Hz, treble ±12 dB at 10 kHz; Filters: Fixed low-cut at 20 Hz, switchable high-pass at 120 Hz; VOX ducking: 0 dB – 45 dB; Priority functions: EMG input, contact control for intercom station with 2-tone chime; Remote power: On/Off via potential-free contact; Protection circuits: Audio limiter, overtemperature, DC, HF, short-circuit and overcurrent protection, mains voltage and inrush current protection; Status indicators: Protect, Peak, Signal, Call, Power; DIP switches; Connections: 3-pin XLR, 5-pin Euroblock, 2-pin Euroblock, 4-pin Euroblock, RCA; Mounting: Stand-alone, 19-inch rack, side-by-side rack mounting, 9.5-inch half-rack, table-top mounting, under-table mounting; Dimensions (WxDxH): 442 x 218 x 45 mm; Weight: 1.86 kg; Colour: Black; Includes single rack adapter, double rack adapter and under-table bracket; EV EVID-C6.2-G2: Ceiling-mounted loudspeaker; 2-way coaxial system; Configuration: 6" woofer, 1" tweeter; 70 V and 100 V operation; 70 V power taps: 1.88 W, 3.75 W, 7.5 W, 15 W, 30 W; 100 V power taps: 3.75 W, 7.5 W, 15 W, 30 W; low-impedance operation; Nominal impedance: 8 ohms; Frequency response: 65 Hz – 20,000 Hz; Maximum sound pressure level: 109 dB SPL, 115 dB SPL (peak); Sensitivity: 90 dB SPL; Dispersion angle: 110°; Power handling: 80 W, 320 W (peak); Continuous power handling: 70 W, 280 W (peak); Recommended high-pass filter: 60 Hz; EZ-Install mounting system; 4-pole Euroblock input with loop-through output; front-panel power tap selection; Protection rating: IP34; Certifications: UL 1480A, UL 2043, CSA C22.2 No. 205, IEC 62368-1; Ceiling cut-out: 272 mm; Installation depth: 149 mm; Ceiling thickness: 12.5 mm – 38 mm; Material: steel, powder-coated steel grille; Dimensions (Ø x D): 302 x 154 mm; Weight: 4.1 kg; Colour: White; Contents: connection covers, magnetic grilles, ceiling rails, C-rings, screws, cut-out template, paint protection covers, quick installation guide
