EV BSYS-EVID-S4.2TB

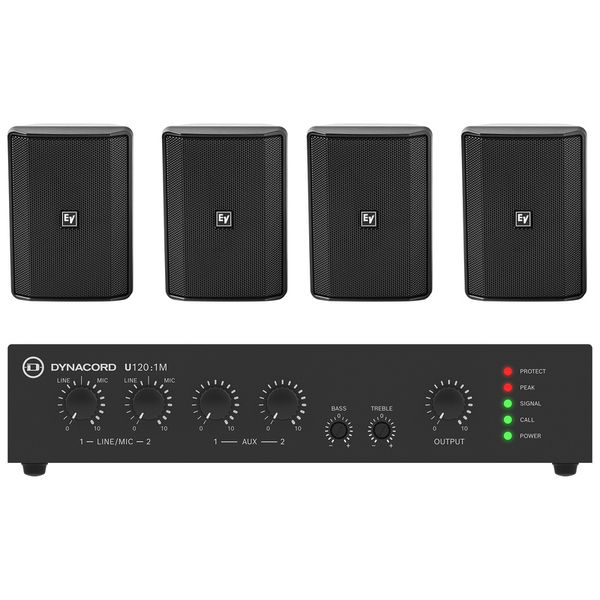

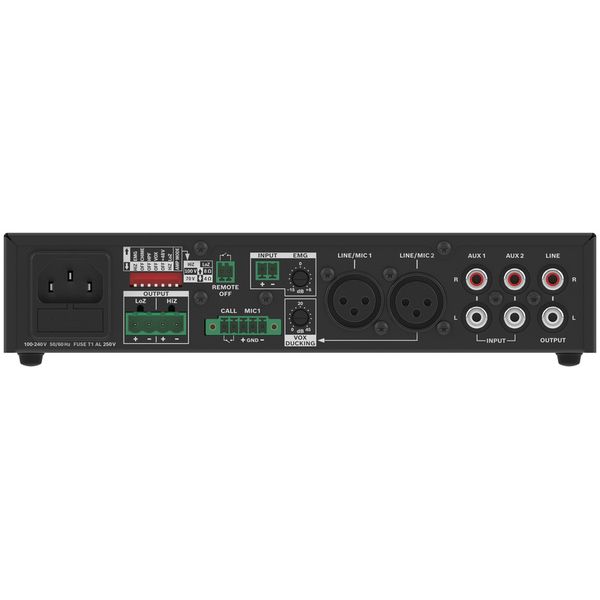

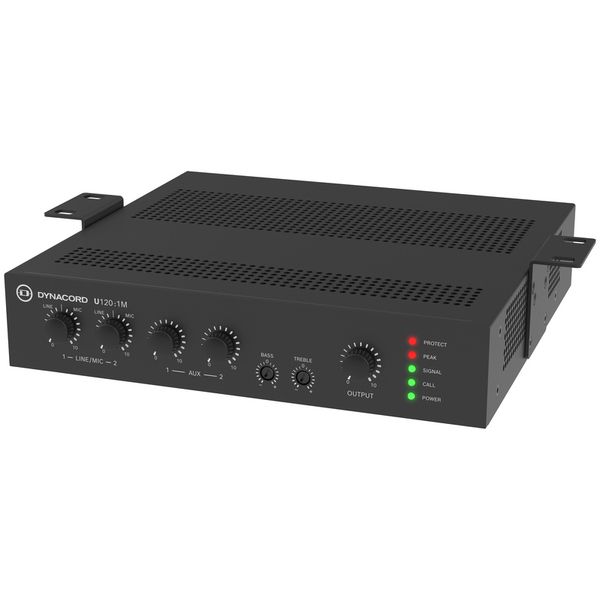

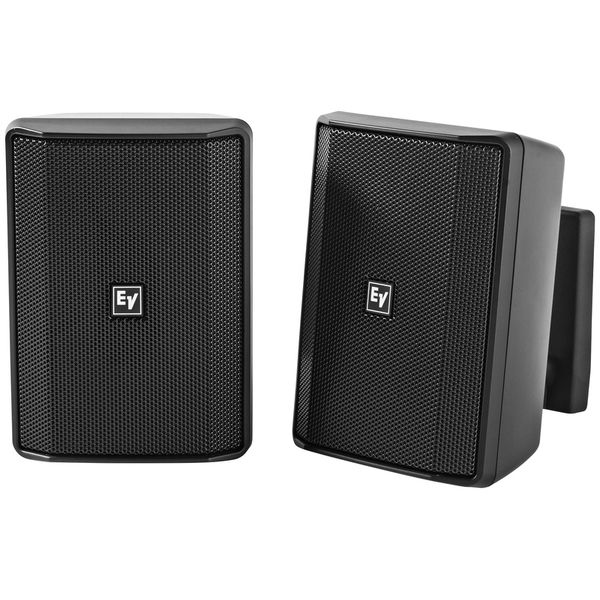

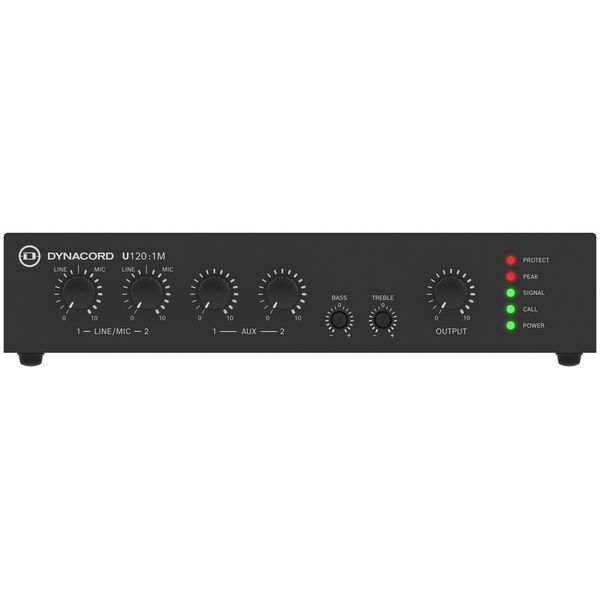

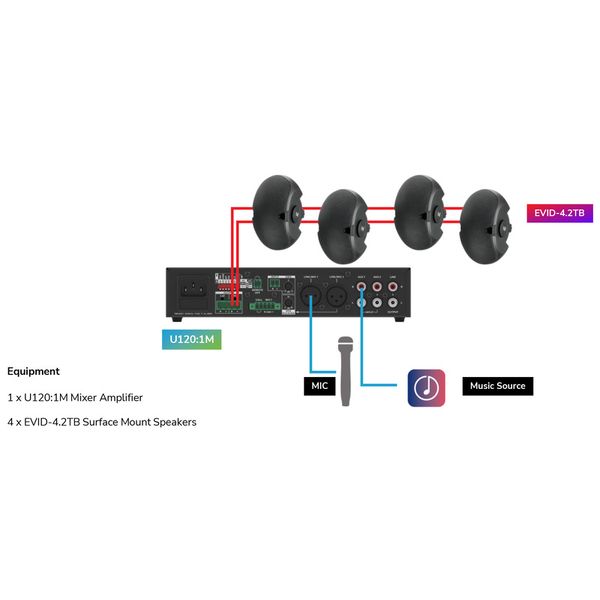

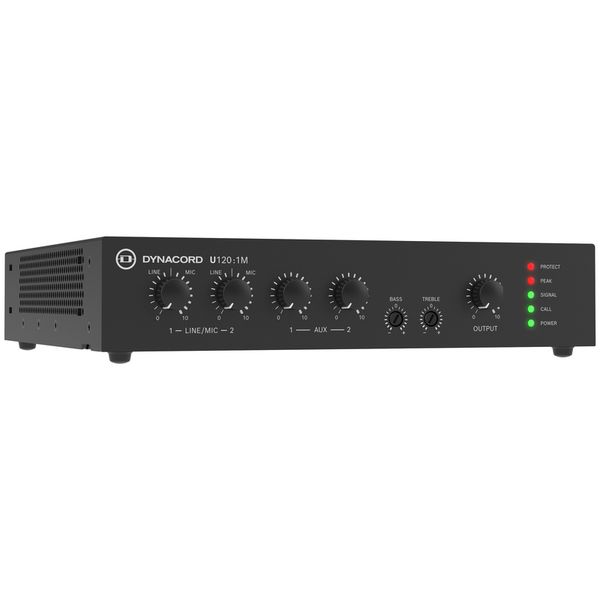

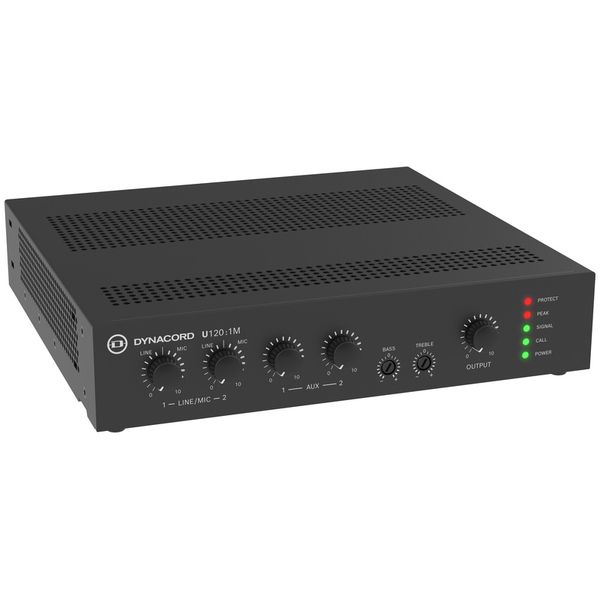

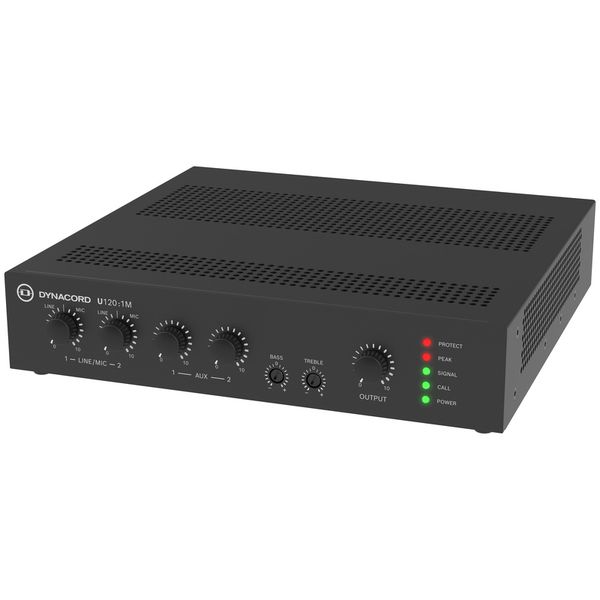

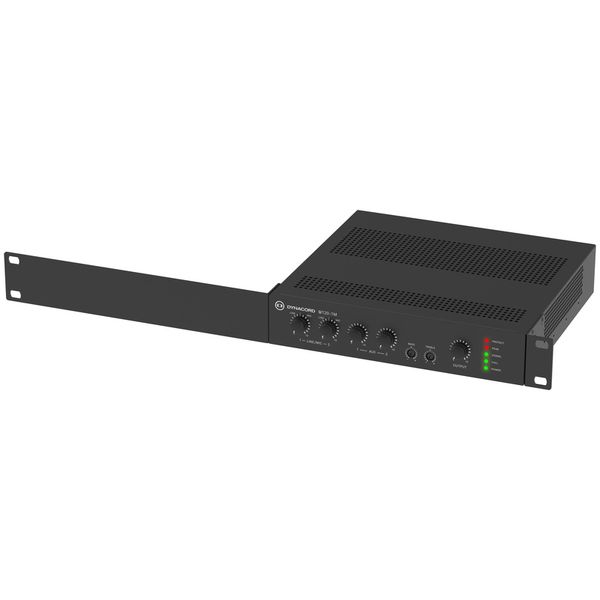

BSYS-EVID-S4.2TB; high-performance surface-mount system for demanding environments; powerful and scalable surface-mount solution combining loudspeakers with a matching mixer-amplifier; designed for larger or more complex spaces requiring extra power headroom and comprehensive sound coverage; ideal for hospitality areas and open retail spaces; increased headroom for larger rooms; scalable system performance; robust, reliable operation; Set comprising 1x Dynacord U120:1M EU amplifier-mixer and 4 Electro-Voice EVID-S4.2TB surface-mounted loudspeakers; Dynacord U120:1M: 1-channel mixing amplifier; output power: 120 W; amplifier technology: Class D; inputs: 2 x balanced Mic/Line XLR, 2 x AUX RCA stereo to mono, 1 x EMG priority input; Phantom power: 48 V switchable for both mic inputs; Speaker outputs: 4 ohms, 8 ohms, 70 V, 100 V; Frequency response (input to output): 10 Hz – 22 kHz; Frequency response (input to line output): <10 Hz – 65 kHz; Total harmonic distortion: <0.5% at rated power and 1 kHz; Signal-to-noise ratio: >100 dB; Equalisation: Bass ±12 dB at 100 Hz, treble ±12 dB at 10 kHz; Filters: Fixed low-cut at 20 Hz, switchable high-pass at 120 Hz; VOX ducking: 0 dB – 45 dB; Priority functions: EMG input, contact control for intercom station with 2-tone chime; Remote power: On/Off via potential-free contact; Protection circuits: Audio limiter, overtemperature, DC, HF, short-circuit and overcurrent protection, mains voltage and inrush current protection; Status indicators: Protect, Peak, Signal, Call, Power; DIP switches; Connections: 3-pin XLR, 5-pin Euroblock, 2-pin Euroblock, 4-pin Euroblock, RCA; Mounting: Stand-alone, 19-inch rack, side-by-side rack mounting, 9.5-inch half-rack, table-top mounting, under-table mounting; Dimensions (WxDxH): 442 x 218 x 45 mm; Weight: 1.86 kg; Colour: Black; Includes single rack adapter, double rack adapter and under-table bracket; EV EVID-S4.2T – Pair of installation loudspeakers; 2-way system; Drivers: 4" woofer, 0.75" tweeter; 70 V and 100 V operation; Power taps 70 V: 3.7 W, 7.5 W, 15 W; 100 V power taps: 7.5 W, 15 W; frequency response: 75 Hz – 20 kHz; sensitivity: 86.5 dB SPL; maximum sound pressure level: 98.5 dB SPL, 104.5 dB SPL (peak); coverage angle: 110° x 110°; Power handling: 15 W, 60 W (peak); built-in 15 W transformer; recommended high-pass filter: 70 Hz; Euroblock terminal; pre-fitted ball joint mounting system; horizontal swivel range: 90°; vertical swivel range: 45°; wall and ceiling mounting; protection rating: IP54; Material: ABS plastic, galvanised powder-coated steel grille; Dimensions (WxDxH): 140 x 119 x 193 mm; Weight: 1.8 kg; Colour: Black; Contents: 2 x speakers, 2 x mounting brackets, 1 x 4 mm Allen key
